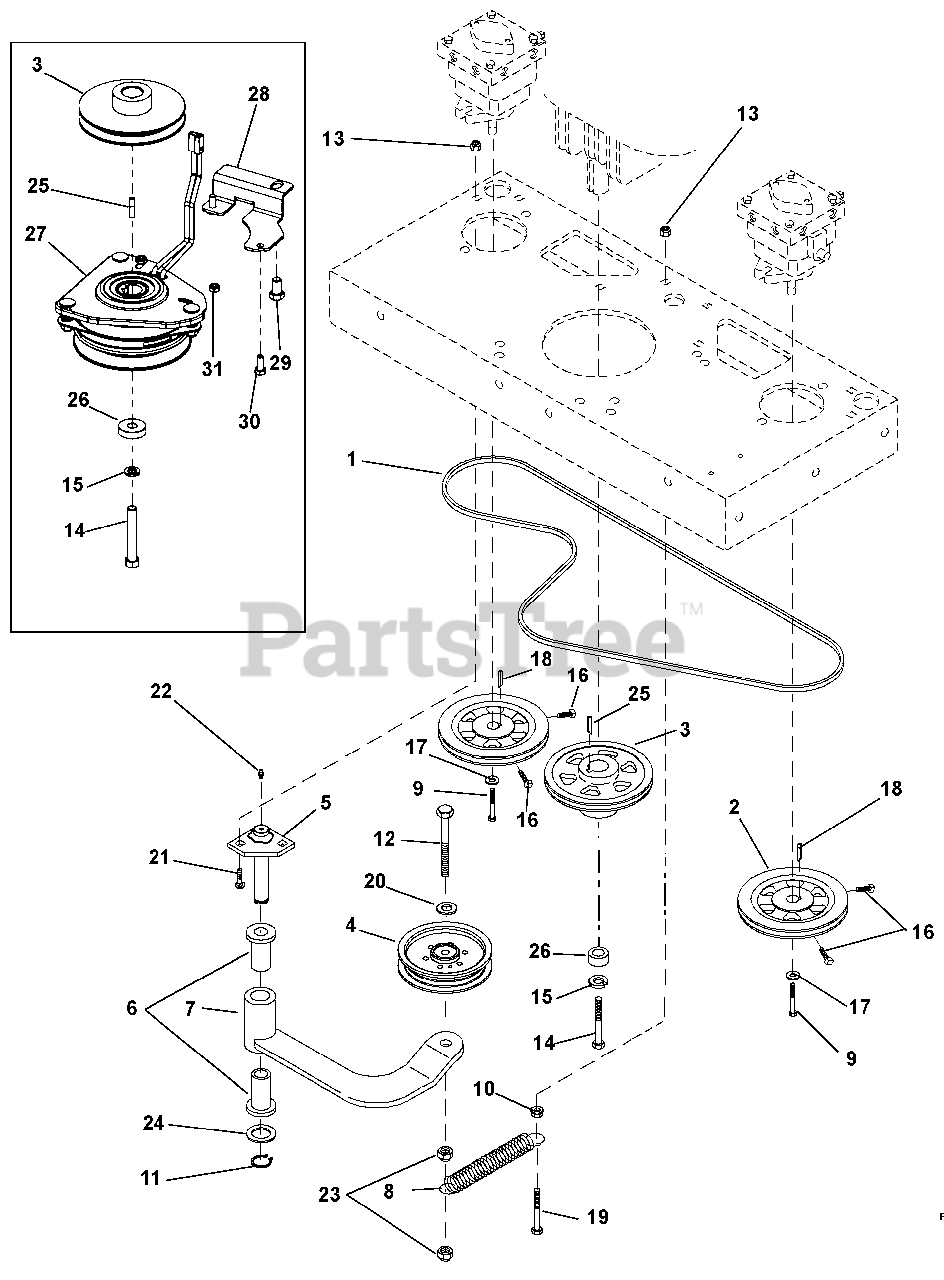

994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000501 & Above) Hydrostatic Pump Drive and PTO Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

Hydrostatic Pump Drive and PTO Parts Diagram

  • Title

1

Gravely GDU10025

Belt, Drive, Pump

$45.99

$

In Stock, only 2 left!

0

2

Gravely TCA15316

Assembly, Pump Pulley w/ Set Screw

$47.99

$

Usually ships in 4-12 days

0

3

Gravely D28091

Pulley

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 07300039

Assembly, Idler 4
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

5

Gravely GDA10004

Weldment, Pivot Idler Mount

$

$

Not available

6

Gravely D18403

Bushing

$9.49

$

Usually ships in 4-12 days

0

7

Gravely GDA10005

Arm, Idler Weldment

$77.99

$

Usually ships in 4-12 days

0

8

Gravely D18071

Spring, External

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 05900124

Bolt, M6 x 1.00 x 10 Hex

$

$

Not available

10

Gravely 06500034

Locknut, M10 x 1.50

$

$

Not available

11

Gravely 00403490

Ring, Snap, External .750 x .042

$

$

Not available

12

Gravely 05958400

Bolt, Hex .38-16 x 2.50
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade 5 EP80

$6.99

$

In Stock, only 3 left!

0

15

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 06000002

Set Screw

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 06308000

Washer, Locking .250 x .077

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06600005

Key, Special M5 x 28
(Superseded to D18067)

$

$

Not available

19

Gravely 05900113

Cap Screw, Spring Anchor, M10

$

$

Not available

20

Gravely 06436200

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

22

Gravely 00959995

Lubrication Fitting

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06529600

Nut, Locking, Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00150052

Bushing, 3/4 Machine

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 06600007

Key, .250 x .250 x .995 Taper
(Superseded to D18145)

$7.49

$

Usually ships in 4-12 days

0

26

Gravely D18056

Spacer

$20.99

$

Usually ships in 4-12 days

0

27

Gravely 00200665

Clutch Assembly, Ogura

$387.99

$

In Stock, only 1 left!

0

28

Gravely 00200666

Plate, Clutch Dog

$51.99

$

Usually ships in 4-12 days

0

29

Gravely 05900121

Bolt, 7/16-14 x .750 Hex 5 (994100)

Note: (994100)

$

$

Not available

30

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (994100)
(Superseded to 05901704)

Note: (994100)

$1.49

$

In Stock, Qty 12

0

31

Gravely 06530200

Nut, Locking, Nylon .312-18 (994100)
(Superseded to 06500820)

Note: (994100)

$0.99

$

Usually ships in 4-12 days

0
