994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000501 & Above) Mower Deck Lift Linkage Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

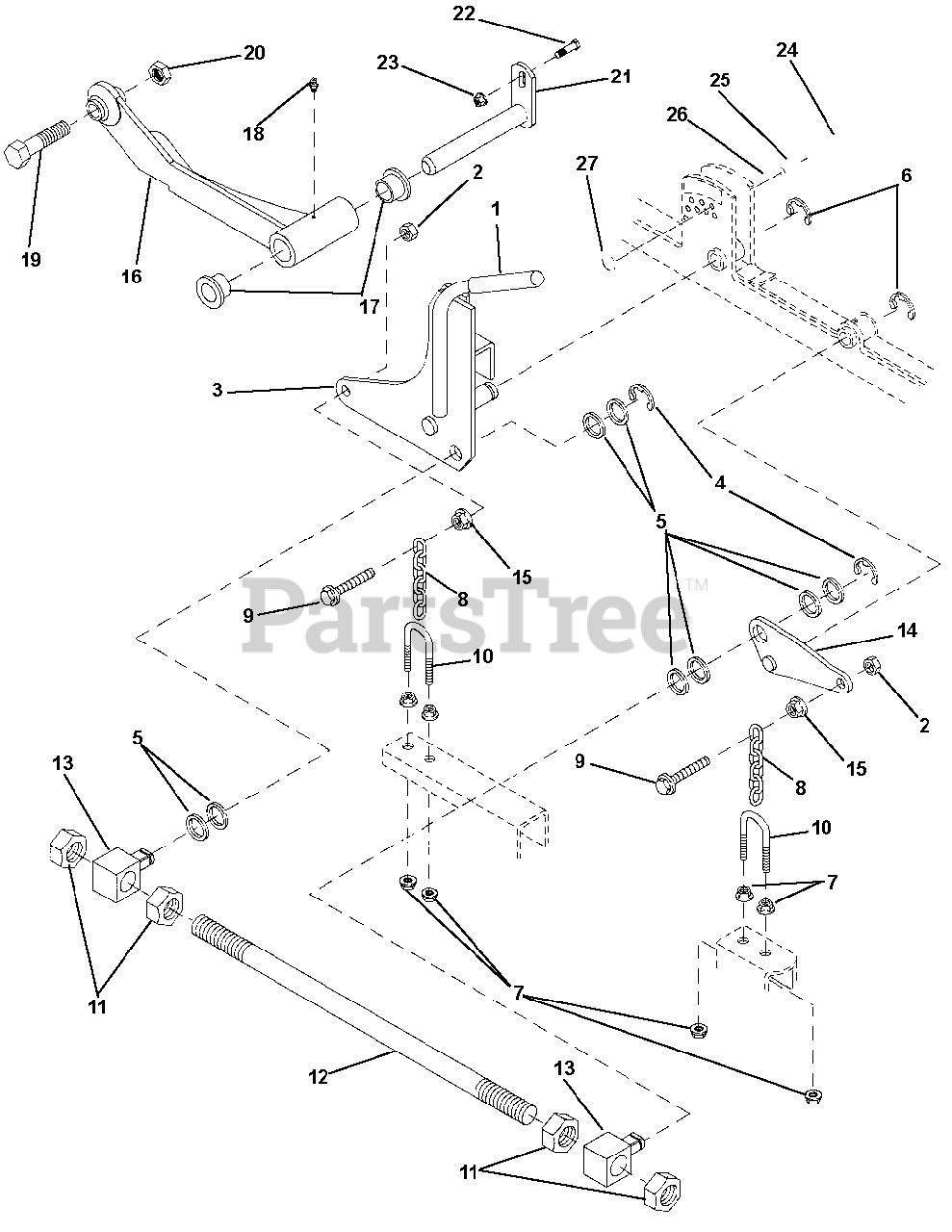

Mower Deck Lift Linkage Parts Diagram

  • Title

1

Gravely D18225

Grip, Control Lever

$

$

Not available

2

Gravely 06500034

Locknut, M10 x 1.50

$

$

Not available

3

Gravely GDA10010

Weldment, LH Rear Lift Arm

$

$

Not available

Gravely GDA10009

Weldment, RH Rear Lift Arm

$

$

Not available

4

Gravely P46402

Ring, Retaining

$

$

Not available

5

Gravely 06400029

Washer, JDS24 .891 x 1.375 x .048
(Superseded to 24H1413)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely R27434

Ring, Retainer

$

$

Not available

7

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 11

0

8

Gravely 00150749

Chain, 6 Links

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 05955200

Bolt, M10 x 1.5 x 40

$

$

Not available

10

Gravely 05900118

U-Bolt

$

$

Not available

11

Gravely 14H1058

Nut, Hex .75
(Superseded to 06537600)

$

$

Not available

12

Gravely TCU15817

Rod, Deck Lift Assembly

$

$

Not available

13

Gravely 00200075

Swivel, Deck Lift

$

$

Not available

14

Gravely GDA10008

Lift Arm Weldment, LH Front

$

$

Not available

Gravely GDA10007

Weldment, RH Front Lift Arm

$

$

Not available

15

Gravely 06500034

Locknut, M10 x 1050

$

$

Not available

16

Gravely TCA14877

Thrust Arm, LH (994100)

Note: (994100)

$

$

Not available

Gravely TCA14876

Thrust Arm, RH (994100)

Note: (994100)

$

$

Not available

Gravely TCA14879

Thrust Arm, LH (994103)

Note: (994103)

$

$

Not available

Gravely TCA14878

Thrust Arm, RH (994103)

Note: (994103)

$

$

Not available

17

Gravely M83541

Bearing, Flanged

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 00959995

Fitting, Lubrication

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05961700

Bolt, Hex .75-10 x 3.00

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 00964024

Crown Locknut .75-16
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

21

Gravely TCA13292

Pin, Welded

$

$

Not available

22

Gravely 06226100

Bolt, Round Head Square Neck M8-1.25 x 25

$

$

Not available

23

Gravely 06541700

Nut, Lock, Nylon M8-1.25
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

24

Gravely 06800007

Pin, Clevis
(Superseded to M137523)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely TCU15892

Bushing, H.O.C. Pin Assembly

$

$

Not available

26

Gravely H143731

Pushnut, M12 Bolt Retainer

$

$

Not available

27

Gravely M88183

Ring, Locking

$

$

Not available
