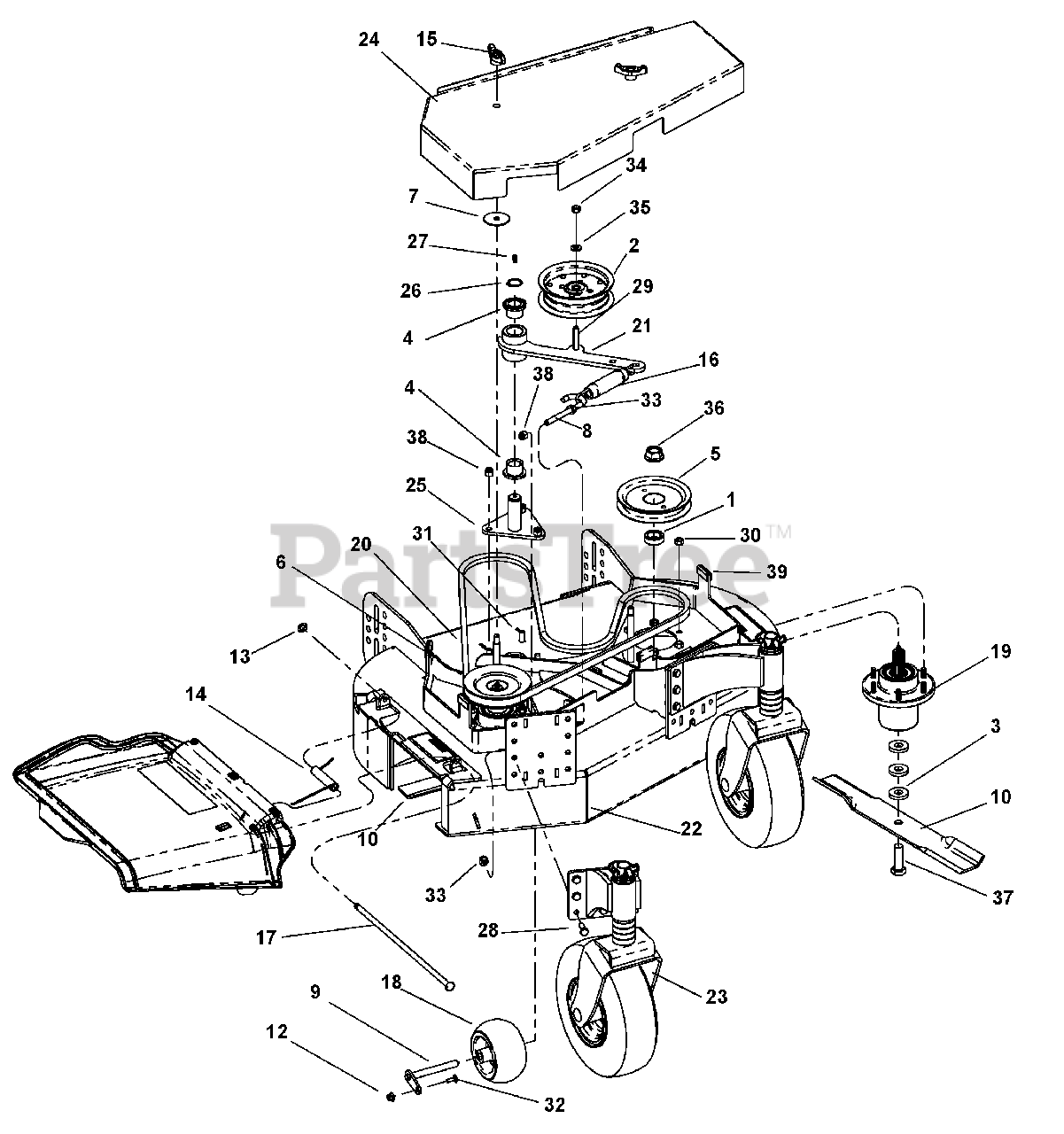

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297) Deck Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Deck Assembly Parts Diagram

  • Title

1

Gravely 00874200

Spacer, 1.500 x 1.000 x .510 Y
(Superseded to D13024)

$10.99

$

In Stock, only 2 left!

0

2

Gravely 07300107

Pulley, Flat 5.0 x .38 w/Bearing
(Superseded to D18032)

$79.99

$

In Stock, only 3 left!

0

3

Gravely 00875400

Washer, Blade
(Superseded to D18055)

$6.99

$

In Stock, only 3 left!

0

4

Gravely 05400019

Bearing, Flg 1.00 x 1.25 x 1.00
(Superseded to 00200046)

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 07300108

Pulley, Spline Spindle Offset
(Superseded to 07329667)

$90.99

$

In Stock, only 1 left!

0

6

Gravely 07300109

Pulley, V-belt 5.27 x .990 w/Spl
(Superseded to D18209)

$91.99

$

In Stock, only 4 left!

0

7

Gravely 06400030

Washer, .402 x 2.00 x .055 Fend Y

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00876900

J-bolt, 3/8-16 x 4.00 Y
(Superseded to D23058)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 00878000

Pivot, Retainer Weld

$

$

Not available

10

Gravely 00878100

Blade, 16.50 Lo-Lift
(Superseded to GDU10230)

$27.99

$

In Stock, Qty 20+

0

11

Gravely 00878200

Blade, 18"
(Superseded to GDU10231)

$27.99

$

In Stock, Qty 20+

0

12

Gravely 06500035

Nut, 1/4" Flange Prevailing Tor

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06900107

Retainer #

$

$

Not available

14

Gravely 08300039

Spring,chute Guard
(Superseded to M132768)

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 00955100

Knob, Locking
(Superseded to M119352)

$3.99

$

In Stock, Qty 6

0

16

Gravely 08300040

Spring, Tension
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 00873900

Discharge Chute, 48" Deck

$

$

Not available

18

Gravely 07100327

Wheel, Gage
(Superseded to TCU18744)

$14.99

$

In Stock, only 4 left!

0

19

Gravely 00872700

Assy, Spindle Housing
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

20

Gravely 00201010

Belt, HB 80.3 El AMD OHR

$70.99

$

In Stock, only 2 left!

0

21

Gravely 00201145

Weldment, Idler Arm

$60.99

$

Usually ships in 4-12 days

0

22

Gravely 00201152

Weldment, 34" Deck

$

$

Not available

23

Gravely 00201174

Assy, Fr Wheel Caster

$

$

Not available

24

Gravely 00201175

Shield, Deck 34

$

$

Not available

25

Gravely 00201178

Weldment, Idler Pivot

$

$

Not available

26

Gravely 00424390

Snap Ring, 1.00 x .042 Ext
(Superseded to 05700160)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 07037900

Grease Zerk, 1/4-28 Straight .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 05948700

Bolt, Hex Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00960051

Bolt, 3/8-16 x 2.25 Hex 5 Y
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

31

Gravely 06212000

Bolt, .38-16X1 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 00963095

Bolt, 1/4-20 x .750 Crg 5 Y
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06543800

Nut, .38-16 Low Crown Locking Acorn
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06436200

Washer, .406 x .813 x .065 Flat Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 00967333

Nut, 3/4-16 Flange Gr8 Y

$

$

Not available

37

Gravely 00967348

Bolt, 5/8-11 x 2.00 Hex 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

38

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

39

Gravely 00999538

Trim 1/4

$5.99

$

Usually ships in 4-12 days

0
