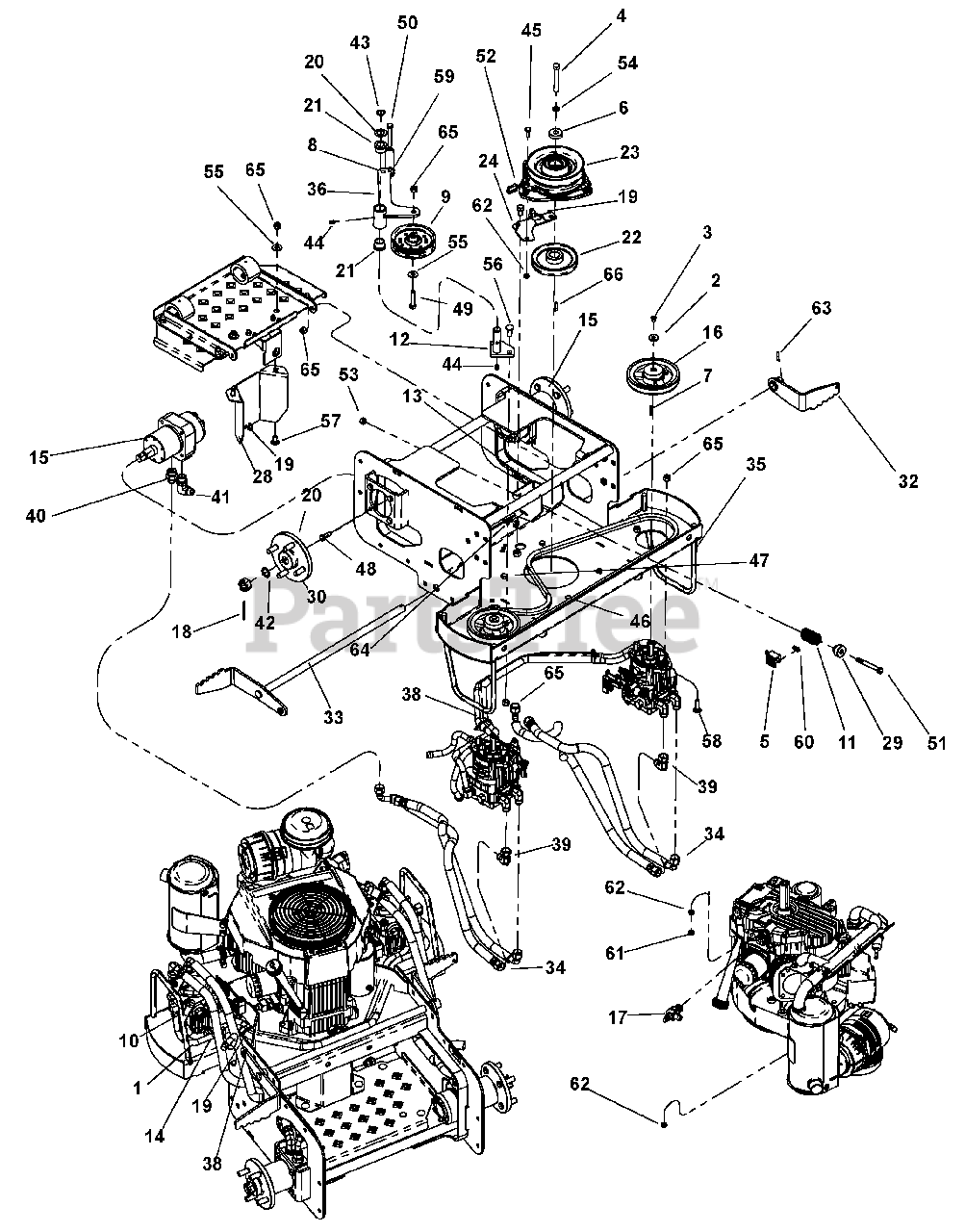

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297)

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297) > Parts Diagrams (13) > Engine, Hydraulic And Main Frame Assembly

  • Title
00945300

1

Hose, 3/8 SAE30r7 Fuel & Oil

Part# 00945300 (Superseded to DT5332)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.59

06308000

2

Washer, .250 Wide Heavy Flat Y

Part# 06308000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05900124

3

Bolt, M6 x 1.00 x 10 Hex 8.8 Y

Part# 05900124

OEM Warranty Repair Part for Gravely

Not available

05965700

4

Bolt, 7/16-20 x 3.00 Hex 5 Y

Part# 05965700 (Superseded to 05900037)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $7.77

00875300

5

Switch (N.0.)

Part# 00875300 (Superseded to D18038)

Note: (N.0.)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00875500

6

Spacer, .468 x 1.38 x .375 Y

Part# 00875500 (Superseded to D18056)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06600005

7

Key, M5 x M5 x M30 RD

Part# 06600005 (Superseded to D18067)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

08300037

8

Spring, Ext .900 x .135x4.50 Y

Part# 08300037 (Superseded to D18071)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07300111

9

Pulley, V-belt 4.00x.379 w/Bearing

Part# 07300111 (Superseded to 07300039)

OEM Warranty Repair Part for Gravely

Not available

00876600

10

Clamp, Hose - 1/2" Pinch

Part# 00876600 (Superseded to D18394)

OEM Warranty Repair Part for Gravely

Not available

08300038

11

Spring, Com 1.22x.162x2.50 Y

Part# 08300038 (Superseded to D38128)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07300114

12

Idler Post

Part# 07300114

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00878400

13

Decal, Warning - Hot Surfaces

Part# 00878400 (Superseded to M117554)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00879200

14

Fitting, Tun 3/8 Hose

Part# 00879200 (Superseded to M86863)

OEM Warranty Repair Part for Gravely

Not available

00882300

15

Motor, Wheel Hgm-12p-7172

Part# 00882300

OEM Warranty Repair Part for Gravely

Not available

07300116

16

Assy, Pump Pulley w/Set Screw

Part# 07300116 (Superseded to TCA15316)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

00883700

17

Fitting, Oil Drain

Part# 00883700 (Superseded to TCA16240)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

06714100

18

Pin, Cot .125 x 2.00 EXTP Y

Part# 06714100

OEM Warranty Repair Part for Gravely

Not available

07519900

19

Tie Wrap, Black

Part# 07519900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05500132

20

Bushing, Machine .750 x 1.25 x .048

Part# 05500132 (Superseded to 00150052)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

05501700

21

Bushing, Flange .750 x 1.000 x .750 x 1.250 Bracket

Part# 05501700 (Superseded to 00191179)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07300118

22

Pulley, V-belt 4.78pd x 1.000

Part# 07300118 (Superseded to 00200318)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.84

00899800

23

Clutch Assembly, Ogura

Part# 00899800 (Superseded to 00200665)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $290.26

00899900

24

Plate, Clutch Dog

Part# 00899900 (Superseded to 00200666)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.63

00200675

25

Engine, Kawasaki 19hp FH580V

Part# 00200675

OEM Warranty Repair Part for Gravely

Not available

00200721

26

Assembly, Hyd Pump

Part# 00200721

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1930.58

00200722

27

Assembly, Hyd Pump

Part# 00200722

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1930.58

00941500

28

Cover, Operator Presence Control

Part# 00941500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06400027

29

Washer, Spring Y

Part# 06400027 (Superseded to 00200770)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

00200959

30

Assy, Rear Wheel Hub

Part# 00200959

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $148.75

00201009

31

Belt, HA 68.2 EL AMD OHR

Part# 00201009

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $41.31

00201025

32

Weldment, RH Brake Arm

Part# 00201025

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.24

00201027

33

Weldment, LH Brake Shaft

Part# 00201027

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00201091

34

Hose, Hyd 1/2 x 26 1/2 Ezflex

Part# 00201091

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

03734753

35

Weldment, Frame 34

Part# 03734753

OEM Warranty Repair Part for Gravely

Not available

00201143

36

Weldment, Idler Pivot

Part# 00201143

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

00201199

37

Assy, Foot Plate

Part# 00201199

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $234.72

00201206

38

Abrasion Sleeve

Part# 00201206

OEM Warranty Repair Part for Gravely

Not available

00942900

39

Adapter, .75 FESW x 3/4MJICX90

Part# 00942900 (Superseded to 00231046)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07025800

40

Adapter, Hydraulic Steel 7/8 "O" To .75

Part# 07025800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.36

07036500

41

Adapter, 8MJ-10MB90

Part# 07036500

OEM Warranty Repair Part for Gravely

Not available

00953300

42

Shim, .020 x .787 x 1.102

Part# 00953300 (Superseded to 24M7158)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05701200

43

Ring, Retaining-External .750 x .042

Part# 05701200 (Superseded to 05700135)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07037900

44

Grease Zerk, 1/4-28 Straight .69 LG

Part# 07037900 (Superseded to 00959995)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05947000

45

Bolt, Hex .31-18 x .75 Grade 5

Part# 05947000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05952400

46

Bolt, Hex .31-18 x 1.50 Grade 5

Part# 05952400

OEM Warranty Repair Part for Gravely

Not available

05957400

47

Bolt, Hex .31-18 x 1.75 Grade 5

Part# 05957400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05948700

48

Bolt, 3/8-16 x 1.00 Hex 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

00960049

49

Bolt, 3/8-16 x 1.75 Hex 5

Part# 00960049 (Superseded to 05958500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958400

50

Bolt, 3/8-16 x 2.50 Hex 5

Part# 05958400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05961100

51

Bolt, 3/8-16 x 3.25 Hex 5

Part# 05961100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05900121

52

Bolt, 7/16-14 x .750 Hex 5

Part# 05900121

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06529200

53

Nut-Hex .31-18

Part# 06529200

OEM Warranty Repair Part for Gravely

Not available

06308800

54

Washer-Locking .38 x .094 Regular

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435900

55

Washer-Flat-Steel .438 x 1.00 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06223600

56

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06223900

57

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5

Part# 06223900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06224100

58

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5

Part# 06224100

OEM Warranty Repair Part for Gravely

Not available

00964001

59

Nut, .38-16 Jam Grade 5

Part# 00964001 (Superseded to 06535900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06536000

60

Nut-Locking-Nylon 10-24 with Insert

Part# 06536000

OEM Warranty Repair Part for Gravely

Not available

06536100

61

Nut-Jam .312-18

Part# 06536100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06530200

62

Nut-Locking-Nylon .312-18

Part# 06530200

OEM Warranty Repair Part for Gravely

Not available

05802900

63

Pin-Roll .156 x 1.00

Part# 05802900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06111100

64

Screw, Machine 10-24 x .625 Panhead

Part# 06111100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06535800

65

Nut-Locking-Nylon .38-16

Part# 06535800 (Superseded to 06500831)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06600007

66

Key, .250 x .250 x .995 TPR

Part# 06600007 (Superseded to D18145)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65
