994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297)

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

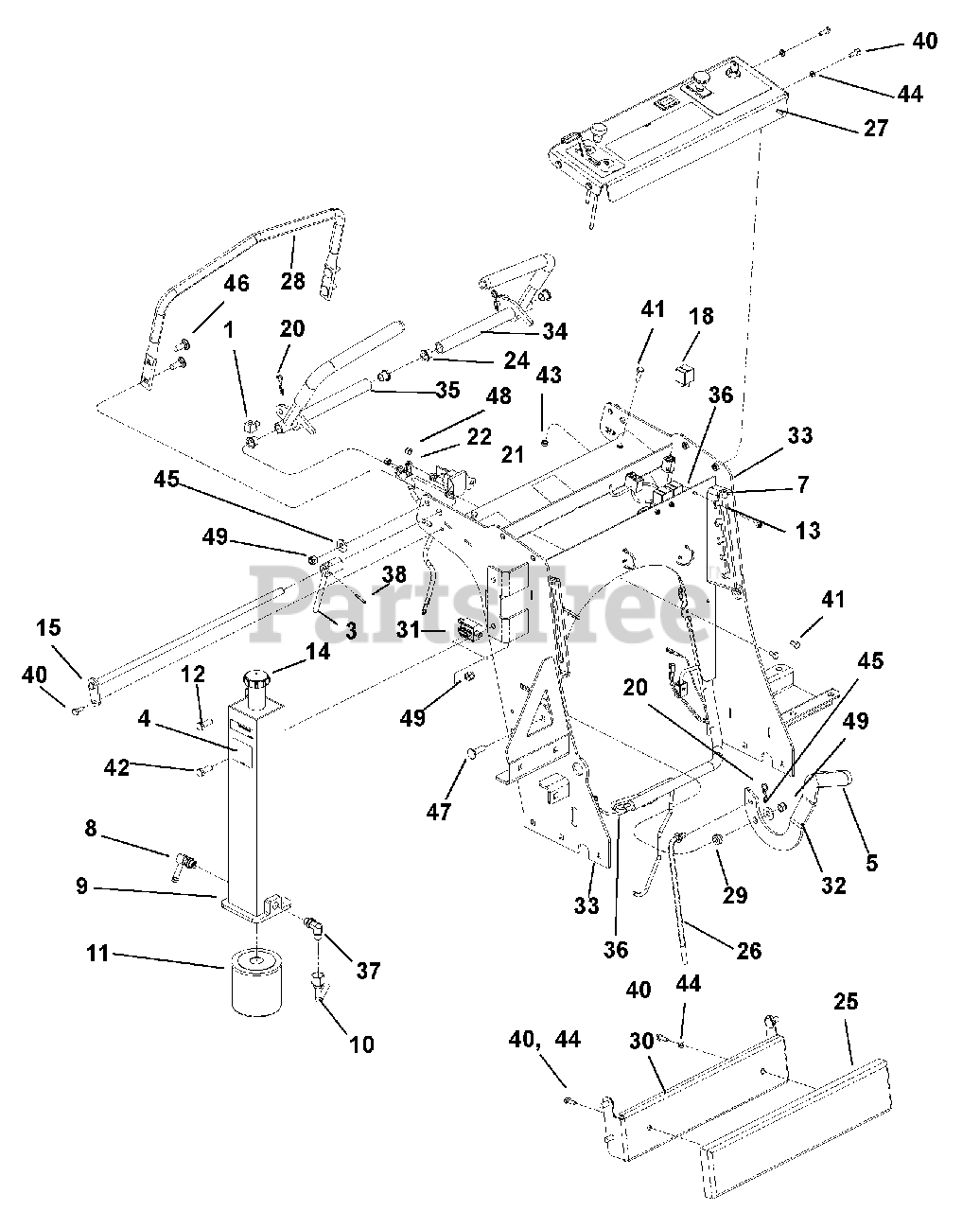

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297) > Parts Diagrams (13) > Fuel, Hydraulic And Handle Assembly

  • Title
00874300

1

Swivel Adjuster

Part# 00874300 (Superseded to D13028)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

00874500

2

Base, Lock Lever Y

Part# 00874500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00874600

3

Lever, Lock Y

Part# 00874600

OEM Warranty Repair Part for Gravely

Not available

00875200

4

Decal, Hydro Oil Specs.

Part# 00875200 (Superseded to D18023)

OEM Warranty Repair Part for Gravely

Not available

00875800

5

Grip, PVC .250 x 1.00 x 3.63

Part# 00875800 (Superseded to D18079)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00943900

6

Grip, Control

Part# 00943900 (Superseded to D18093)

OEM Warranty Repair Part for Gravely

Not available

06200013

7

Screw, 8-32 x .50 Pan Phl Y

Part# 06200013

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07019700

8

Fitting, 90 9/16 MOR x 3/8 HOSE

Part# 07019700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

GDA10053

9

Weldment, Reservior Hydraulic

Part# GDA10053

OEM Warranty Repair Part for Gravely

Not available

00954500

10

Elbow, Fitting

Part# 00954500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

00669300

11

Filter, Oil

Part# 00669300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

00878400

12

Decal, Warning - Hot Surfaces

Part# 00878400 (Superseded to M117554)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06531300

13

Nut, 8-32 Elastic Stop

Part# 06531300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

00882500

14

Cap, Filler Oil

Part# 00882500 (Superseded to TCA15122)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

00882700

15

Weldment, Pivot Rod Y

Part# 00882700

OEM Warranty Repair Part for Gravely

Not available

00884400

16

Decal, Warning, Slope

Part# 00884400 (Superseded to TCU15907)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

00884600

17

Decal, Directional Control

Part# 00884600 (Superseded to TCU15910)

OEM Warranty Repair Part for Gravely

Not available

00888400

18

Relay, Iso Mini Elec.

Part# 00888400 (Superseded to 00102770)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

07519900

19

Tie Wrap, Black

Part# 07519900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06703600

20

Pin, Hair Internal .09 x 1.65

Part# 06703600 (Superseded to 06700002)

OEM Warranty Repair Part for Gravely

Not available

03551000

21

Solenoid, 12 V Starter

Part# 03551000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71

00872300

22

Cable, 12" Starter

Part# 00872300 (Superseded to 00180842)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

00200037

23

Decal, Patent Covered

Part# 00200037

OEM Warranty Repair Part for Gravely

Not available

05400017

24

Bearing, Flange .500 x .620 x .500

Part# 05400017 (Superseded to 00200116)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00896400

25

Pad, Thigh

Part# 00896400 (Superseded to 00200606)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $80.44

00896900

26

Link, Brake

Part# 00896900 (Superseded to 00200615)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

00200718

27

Assembly, Control Panel

Part# 00200718

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.36

00899600

28

Handle, Support

Part# 00899600 (Superseded to 00200654)

OEM Warranty Repair Part for Gravely

Not available

05500131

29

Bushing, Brake Pivot Y

Part# 05500131 (Superseded to 00200671)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

00900000

30

Weldment, Thigh Pad Bracket

Part# 00900000 (Superseded to 00200690)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

00942200

31

Switch, NO-NO-NC Grey Plunger

Part# 00942200 (Superseded to 00200705)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00201022

32

Brake Lever, Offset

Part# 00201022

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

00201111

33

Weldment, Console 34

Part# 00201111

OEM Warranty Repair Part for Gravely

Not available

00201137

34

Weldment, RH Control Lever

Part# 00201137

OEM Warranty Repair Part for Gravely

Not available

00201138

35

Weldment, LH Control Lever

Part# 00201138

OEM Warranty Repair Part for Gravely

Not available

00201197

36

Harness, Wiring

Part# 00201197

OEM Warranty Repair Part for Gravely

Not available

08800800

37

Adapter 2503-6-6

Part# 08800800 (Superseded to 00313270)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05800005

38

Pin, Spring 5/32 x 1

Part# 05800005

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

05947900

39

Bolt, Hex .25-20 x .50 Grade 5

Part# 05947900

OEM Warranty Repair Part for Gravely

Not available

05946800

40

Bolt, Hex .25-20 x .75 Grade 5

Part# 05946800

OEM Warranty Repair Part for Gravely

Not available

00960002

41

Bolt, 1/4-20 x 1.00 Hex 5 Y

Part# 00960002 (Superseded to 05947700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05948700

42

Bolt-Hex .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

00960500

43

Nut, 1/4-20 STD HEX GR5 Y

Part# 00960500

OEM Warranty Repair Part for Gravely

Not available

06308400

44

Washer, Locking .25 x .062 Regular

Part# 06308400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435900

45

Washer, Flat-Steel .438 x 1.00 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06223600

46

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06224100

47

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5

Part# 06224100

OEM Warranty Repair Part for Gravely

Not available

06531000

48

Nut, Locking-Nylon .250-20

Part# 06531000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06535800

49

Nut, Locking-Nylon .38-16

Part# 06535800 (Superseded to 06500831)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
