994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297)

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

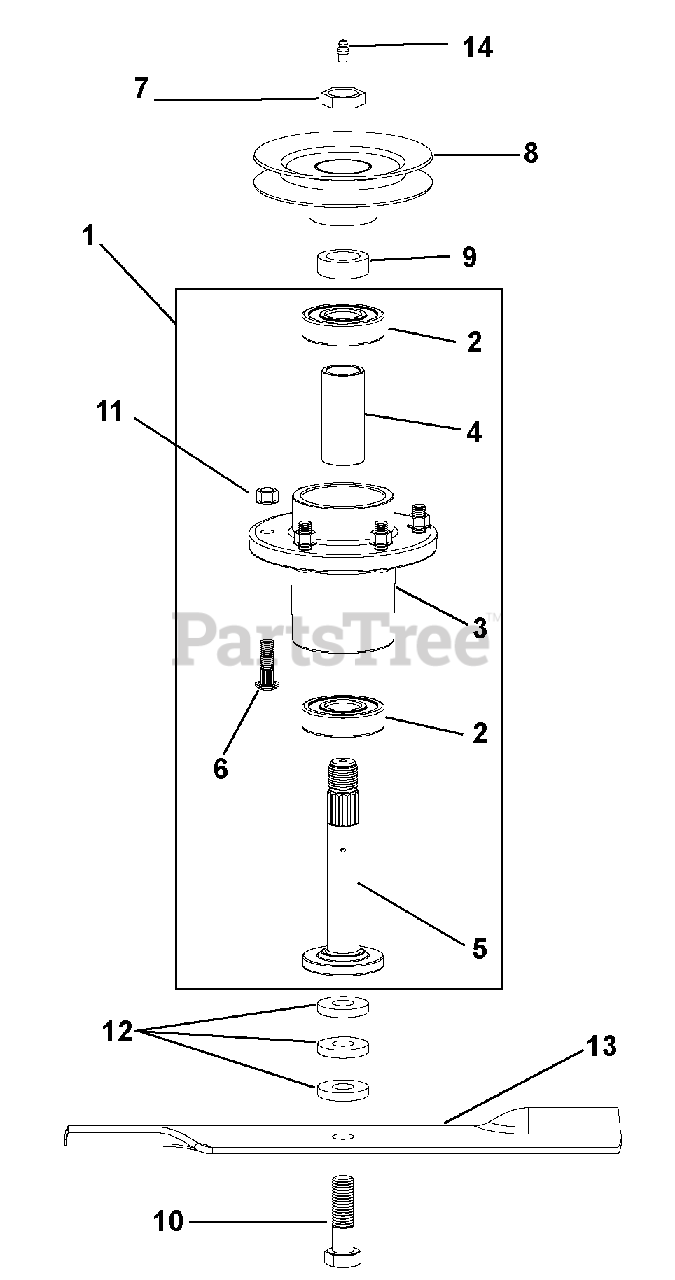

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297) > Parts Diagrams (13) > Spindle Assembly

  • Title
00872700

1

Spindle Assembly (Includes Items 2, 3, 4, 5, 6, and 14)

Part# 00872700 (Superseded to 00200262)

Note: (Includes Items 2, 3, 4, 5, 6, and 14)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

05400019

2

Ball Bearing

Part# 05400019 (Superseded to 00200046)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $25.66

00872800

3

Housing

Part# 00872800 (Superseded to 00200042)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $75.97

00873000

4

Spacer, 1.000 x 1.250 x 2.772

Part# 00873000 (Superseded to 00200044)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00872900

5

Shaft, Spindle

Part# 00872900 (Superseded to 00200261)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

05900105

6

Bolt, 3/8 x 1.25 RIB

Part# 05900105 (Superseded to 00200045)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

06500027

7

Nut, Pulley (Special)

Part# 06500027 (Superseded to D13055)

Note: (Special)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.95

N/A

8

Pulley, Cutter Housing - Refer to "Deck Assembly" on page 18

Part# N/A

OEM Warranty Repair Part for Gravely

Currently unavailable

00874200

9

Spacer, Pulley

Part# 00874200 (Superseded to D13024)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05930700

10

Bolt, Hex .62-11 x 2.25

Part# 05930700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06529200

11

Nut, Hex .31-18

Part# 06529200

OEM Warranty Repair Part for Gravely

Not available

00875400

12

Spacer, Blade Bolt

Part# 00875400 (Superseded to 06400913)

OEM Warranty Repair Part for Gravely

Not available

00878200

13

18.0" Blade, Lift

Part# 00878200 (Superseded to GDU10231)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

00878100

16.5" Blade, Lift

Part# 00878100 (Superseded to GDU10230)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.95

00873100

14

Zerk, Grease S/O

Part# 00873100 (Superseded to JD7849)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
