994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297) Wheel And Strut Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

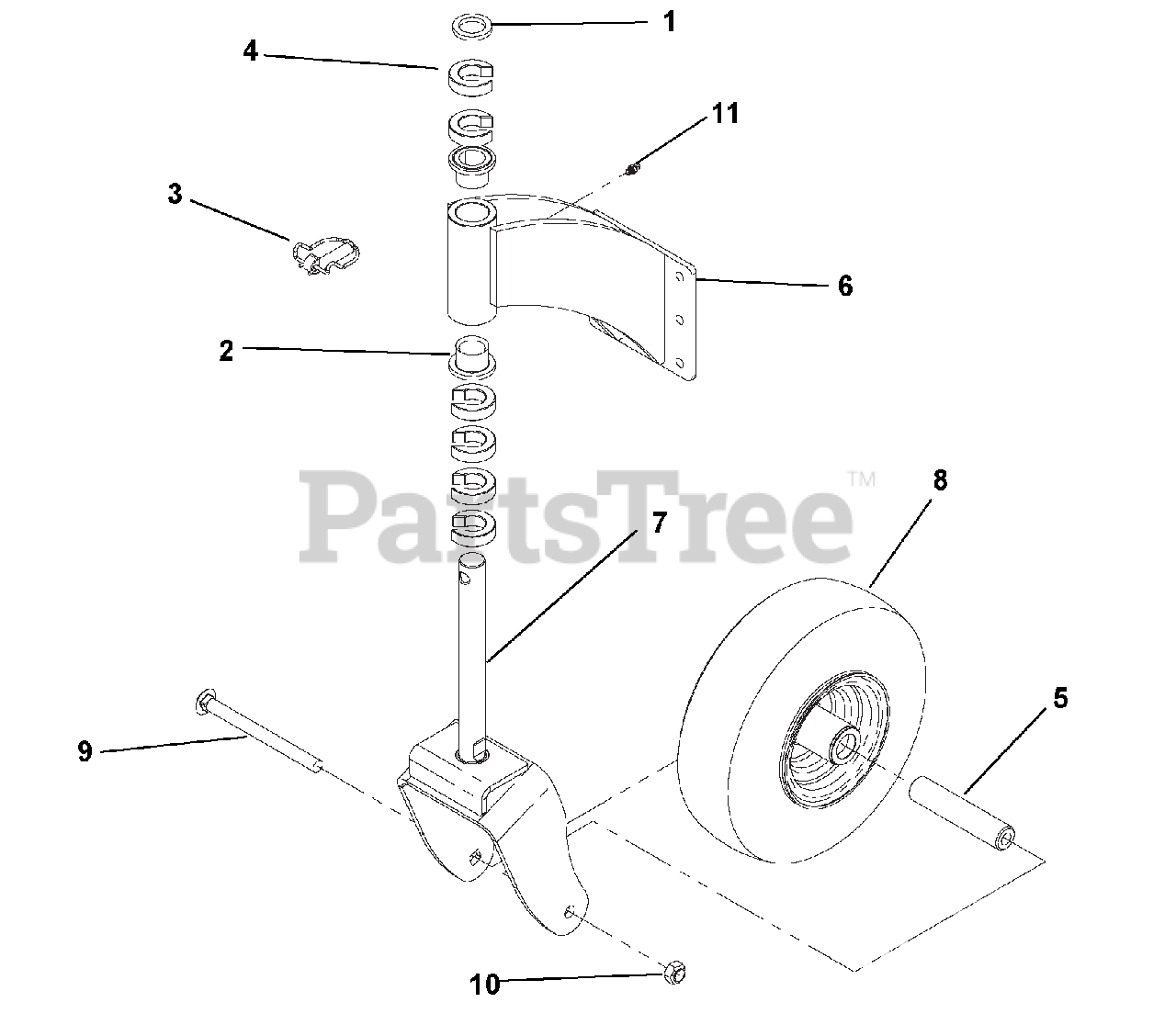

Wheel And Strut Assembly Parts Diagram

  • Title

1

Gravely 00958000

BUSHING, 1.03X1.501.179
(Superseded to D13008)

$10.99

$

In Stock, Qty 8

0

2

Gravely 00958100

BRG, FLG 1.00X1.25X1.00
(Superseded to D18076)

$7.49

$

In Stock, Qty 13

0

3

Gravely 00958200

PIN, LOCK .438 X 2.00
(Superseded to 00161397)

$9.99

$

In Stock, only 2 left!

0

4

Gravely 00958300

C-SPACER, 1.00X1.77X.50
(Superseded to 00164145)

$5.99

$

In Stock, only 2 left!

0

5

Gravely 00958400

TUBE, 1.00X.50X4.76
(Superseded to 00191049)

$52.99

$

In Stock, only 4 left!

0

6

Gravely 00892200

WLDT, CASTER MOUNT BRACKET S/O
(Superseded to 00200175)

$

$

Not available

7

Gravely 00958600

WLDMT, FRONT WHEEL FORK
(Superseded to 00200176)

$219.99

$

Usually ships in 4-12 days

0

8

Gravely 00958700

WHEEL, FRONT 11X4X5

$

$

Not available

9

Gravely 05961800

BLT-HEX .50-13X6.00 GR5 YWZC

$

$

Not available

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0
