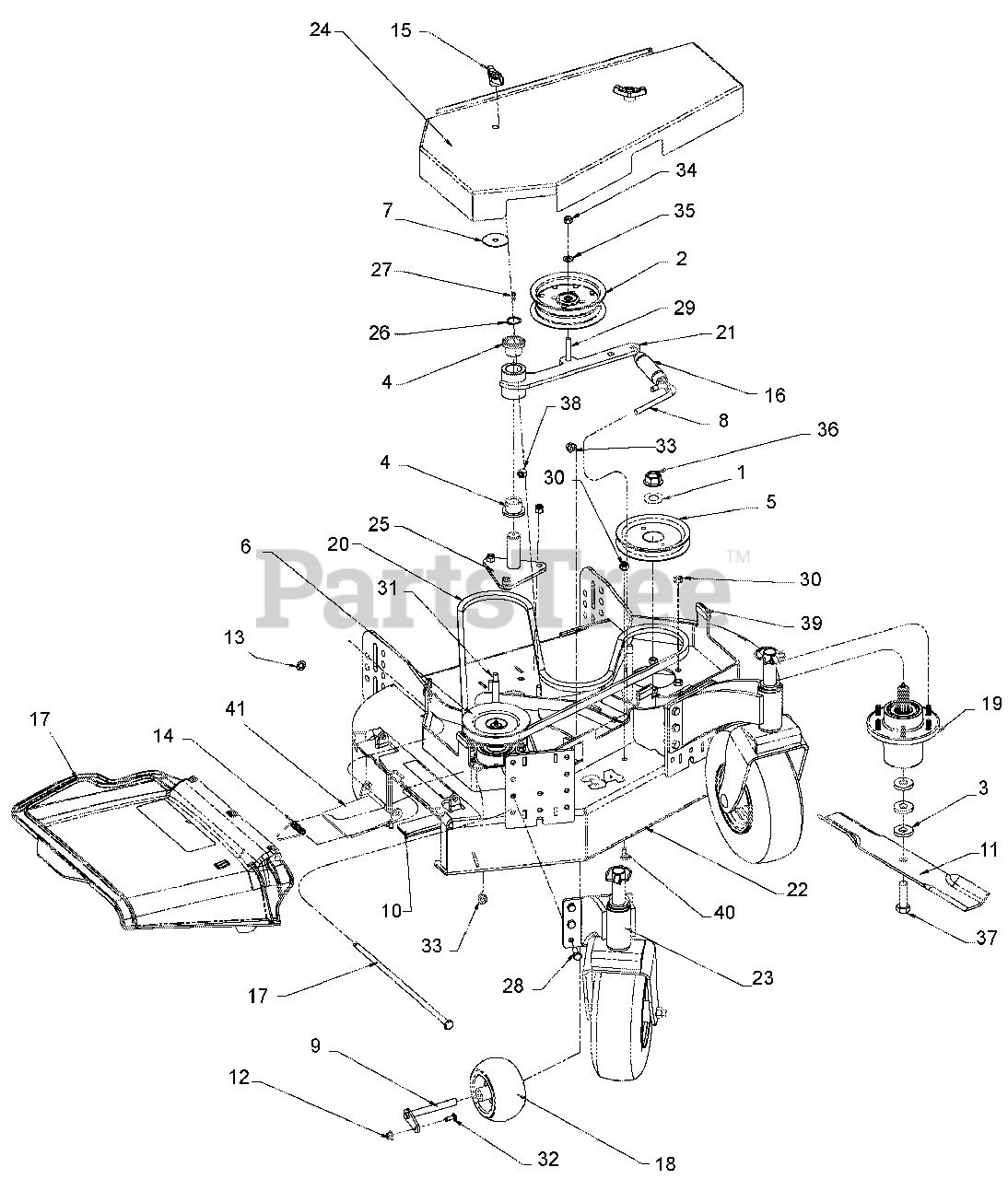

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000298 - 000500) Deck Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Deck Assembly Parts Diagram

  • Title

1

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.99

$

In Stock, Qty 8

0

2

Gravely 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$86.99

$

In Stock, Qty 9

0

3

Gravely 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.99

$

In Stock, only 4 left!

0

4

Gravely 00958100

BRG, FLG 1.00X1.25X1.00
(Superseded to D18076)

$7.99

$

In Stock, Qty 7

0

5

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$79.99

$

In Stock, only 2 left!

0

6

Gravely 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

7

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

8

Gravely 00876900

J-HOOK
(Superseded to D23058)

$6.99

$

In Stock, only 2 left!

0

9

Gravely 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

10

Gravely 00878100

16.5" BLADE, 48" DECK
(Superseded to GDU10230)

$30.99

$

In Stock, Qty 5

0

11

Gravely 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

$33.99

$

In Stock, Qty 20+

0

12

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06900107

CLIP, RETAINER

$

$

Not available

14

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 00955100

KNOB, 3/8-16 INSERT
(Superseded to M119352)

$4.99

$

In Stock, only 4 left!

0

16

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$14.99

$

Usually ships in 4-12 days

0

17

Gravely 00873900

DISCHARGE CHUTE, 48" DECK

$

$

Not available

18

Gravely 07100327

WHEEL, GAGE, 48" AND 52" DECK
(Superseded to TCU18744)

$15.99

$

In Stock, Qty 10

0

19

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$307.99

$

Usually ships in 4-12 days

0

20

Gravely 00201010

BELT, HB 80.3 EL AMD OHR

$75.99

$

Usually ships in 4-12 days

0

21

Gravely 00201145

WLDT, IDLER ARM

$64.99

$

Usually ships in 4-12 days

0

22

Gravely 03729402

WLDT, FIXD DECK GRVLY W/DECALS

$

$

Not available

23

Assembly, Front Wheel Caster (see page 18 for parts)

Note: (see page 18 for parts)

$

$

Not available

24

Gravely 00201366

SHIELD, DECK W/DECALS GRAVELY

$

$

Not available

25

Gravely 00201178

WLDT, IDLER PIVOT

$

$

Not available

26

Gravely 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$4.99

$

In Stock, only 2 left!

0

28

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 00960051

BOLT, 3/8-16X2.25 HEX 5 Y
(Superseded to 05962900)

$5.49

$

In Stock, Qty 20+

0

30

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

31

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0

37

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.99

$

In Stock, Qty 7

0

38

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

39

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.99

$

Usually ships in 4-12 days

0

40

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 00200095

BRKT, SUPPORT DISCHARGE CHUTE

$26.99

$

Usually ships in 4-12 days

0
