994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000298 - 000500) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

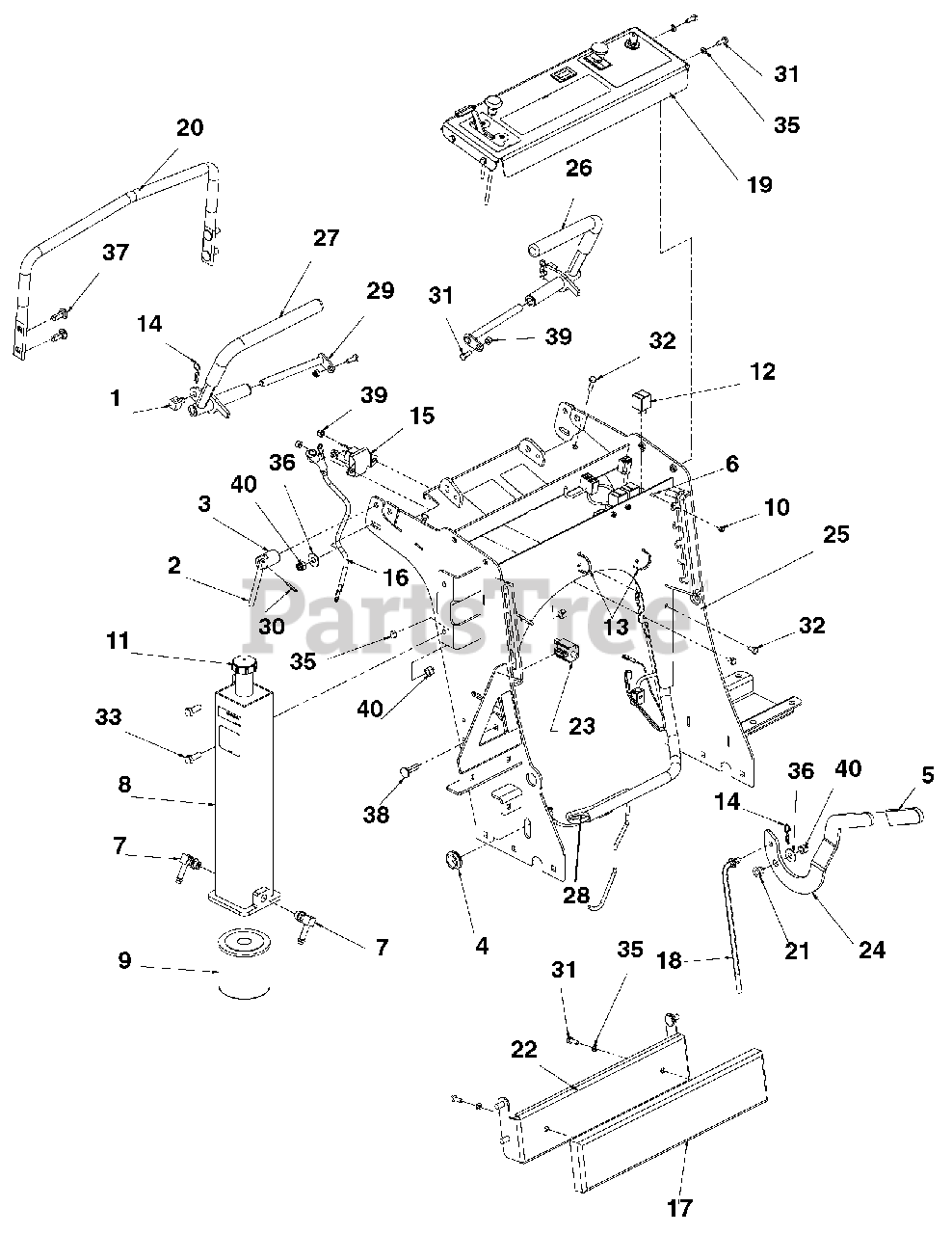

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely 00874300

Swivel Adjuster
(Superseded to D13028)

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 00874600

Lever, Lock Y

$

$

Not available

3

Gravely 00874500

Base, Lock Lever Y

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 03384007

Grommet, Rubber .88ID x 1.38OD x .14

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 00875800

Grip, PVC .250 x 1.00 x 3.63
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06200013

Screw, 8-32 x .50 Y

$

$

Not available

7

Gravely 07019700

Fitting, 90 9/16 MOR x 3/8 HOSE

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 00883300

Weldment, Reservior Hydraulic
(Superseded to TCA15373)

$

$

Not available

9

Gravely 00669300

Filter, Oil

$29.99

$

In Stock, only 2 left!

0

10

Gravely 06531300

Nut, 8-32 Elastic Stop

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 00882500

Cap, Filler Oil
(Superseded to TCA15122)

$27.99

$

In Stock, only 2 left!

0

12

Gravely 00102770

Relay, Iso Mini Elec.

$27.99

$

Usually ships in 4-12 days

0

13

Gravely 07519900

Cable Tie, .15 x 8.50

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06703600

Pin, Hair .091 x 1.63
(Superseded to 00121080)

$2.99

$

In Stock, Qty 7

0

15

Gravely 03551000

Solenoid, 12 V Starter

$43.99

$

In Stock, Qty 9

0

16

Gravely 00872300

Cable, 12" Starter
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 00896400

Pad, Thigh
(Superseded to 00200606)

$

$

Not available

18

Gravely 00896900

Link, Brake
(Superseded to 00200615)

$32.99

$

Usually ships in 4-12 days

0

19

Gravely 03731501

Assembly, Control Panel w/Decals (switches sold seperately)

Note: (switches sold seperately)

$

$

Not available

20

Gravely 03730751

Handle, Support

$

$

Not available

21

Gravely 05500131

Bushing, Brake Pivot Y
(Superseded to 00200671)

$

$

Not available

22

Gravely 00900000

Weldment, Thigh Pad Bracket
(Superseded to 00200690)

$65.99

$

Usually ships in 4-12 days

0

23

Gravely 00942200

Switch, NO-NO-NC Grey Plunger
(Superseded to 00200705)

$17.99

$

In Stock, only 1 left!

0

24

Gravely 00201022

Brake Lever, Offset

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 03728820

Weldment, Console 34 w/Decals

$

$

Not available

26

Gravely 03731000

RH Control Lever w/Grip

$246.99

$

In Stock, only 1 left!

0

27

Gravely 03730900

LH Control Lever w/Grip

$

$

Not available

28

Gravely 00201197

Harness, Wiring

$

$

Not available

29

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 05800005

Pin, Spring 5/32 x 1

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

32

Gravely 00960002

Bolt, .25-20 x 1.00 Hex 5 Y
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

33

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

34

Gravely AA960500

Nut, .25-20 Standard Hex Grade 5 Y

$

$

Not available

35

Gravely 06308400

Washer, .250 Med Spring Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

36

Gravely 06435900

Washer, .375 Reg Flat
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 G 5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

38

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 G 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 06530100

Nut, Locking-Nylon .250-20
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
