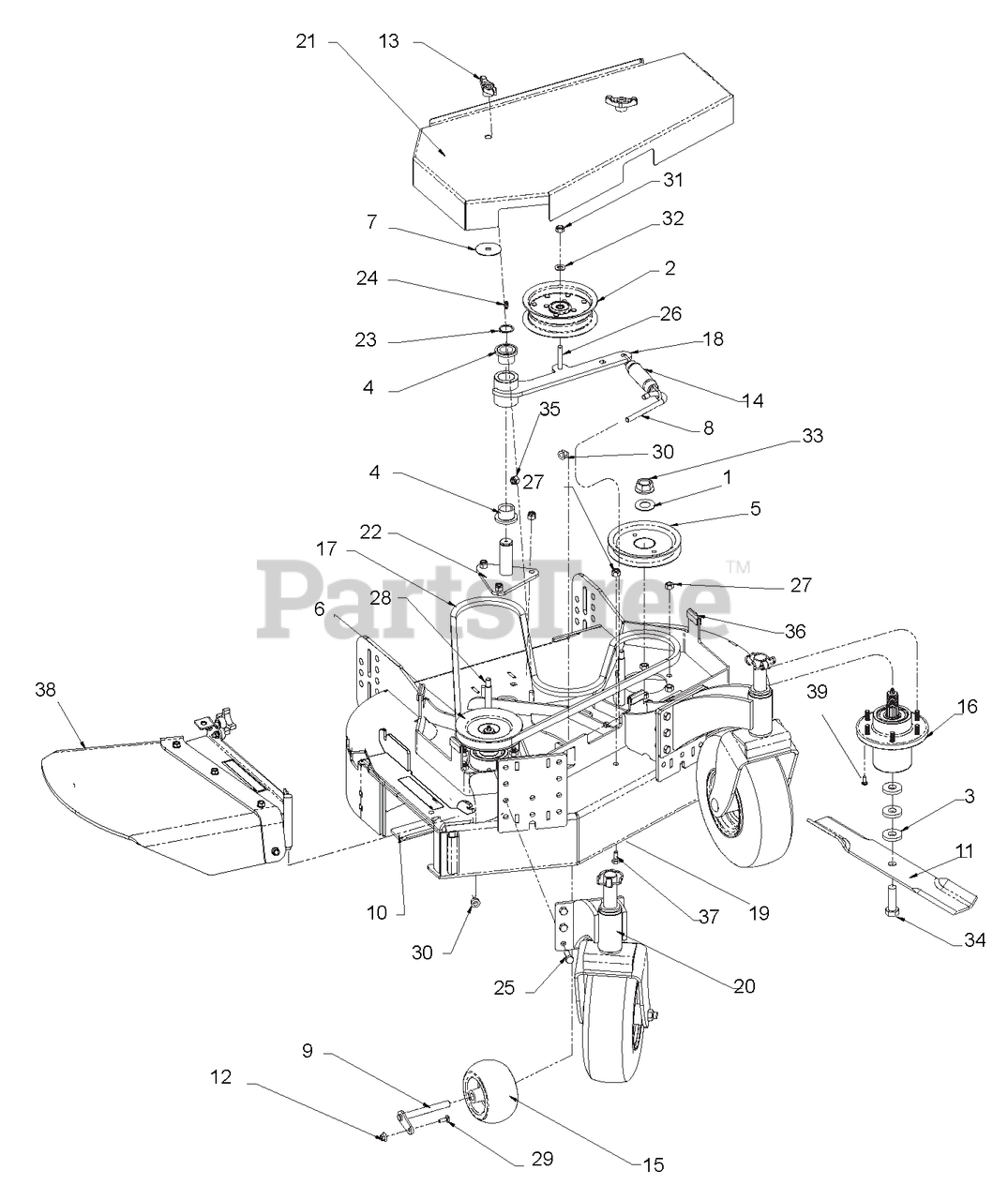

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000501 & Above) Deck Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Deck Assembly Parts Diagram

  • Title

1

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

2

Gravely 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$82.99

$

In Stock, Qty 9

0

3

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

4

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

5

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

6

Gravely 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

7

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

8

Gravely 00876900

J-HOOK
(Superseded to D23058)

$6.49

$

In Stock, only 2 left!

0

9

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

10

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, Qty 8

0

11

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

12

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

13

Gravely M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

14

Gravely N242189

SPRING, EXT

$10.99

$

Usually ships in 4-12 days

0

15

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, Qty 14

0

16

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

17

Gravely 00201010

BELT, HB 80.3 EL AMD OHR

$71.99

$

Usually ships in 4-12 days

0

18

Gravely 00201145

WLDT, IDLER ARM

$61.99

$

Usually ships in 4-12 days

0

19

Gravely 56324001

DECK W/DECALS 34" FX GRAVELY

$

$

Not available

20

Assembly, Front Wheel Caster (see page 20 for parts)

Note: (see page 20 for parts)

$

$

Not available

21

Gravely 00201366

SHIELD, DECK W/DECALS GRAVELY

$

$

Not available

22

Gravely 00201178

WLDT, IDLER PIVOT

$

$

Not available

23

Gravely 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0

25

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

28

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06500031

LOCKNUT, 3/4-16 CROWN GR 8 Y

$3.99

$

In Stock, Qty 18

0

34

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

35

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

36

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

37

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

38

Gravely 56324002

ASSY, RUBBER DISCHARGE

Note: (see page page 21)

$

$

Not available

39

Gravely 00200045

BOLT, 3/8-16X1.25RDHD RIBNKS/O

$7.49

$

Usually ships in 4-12 days

0
