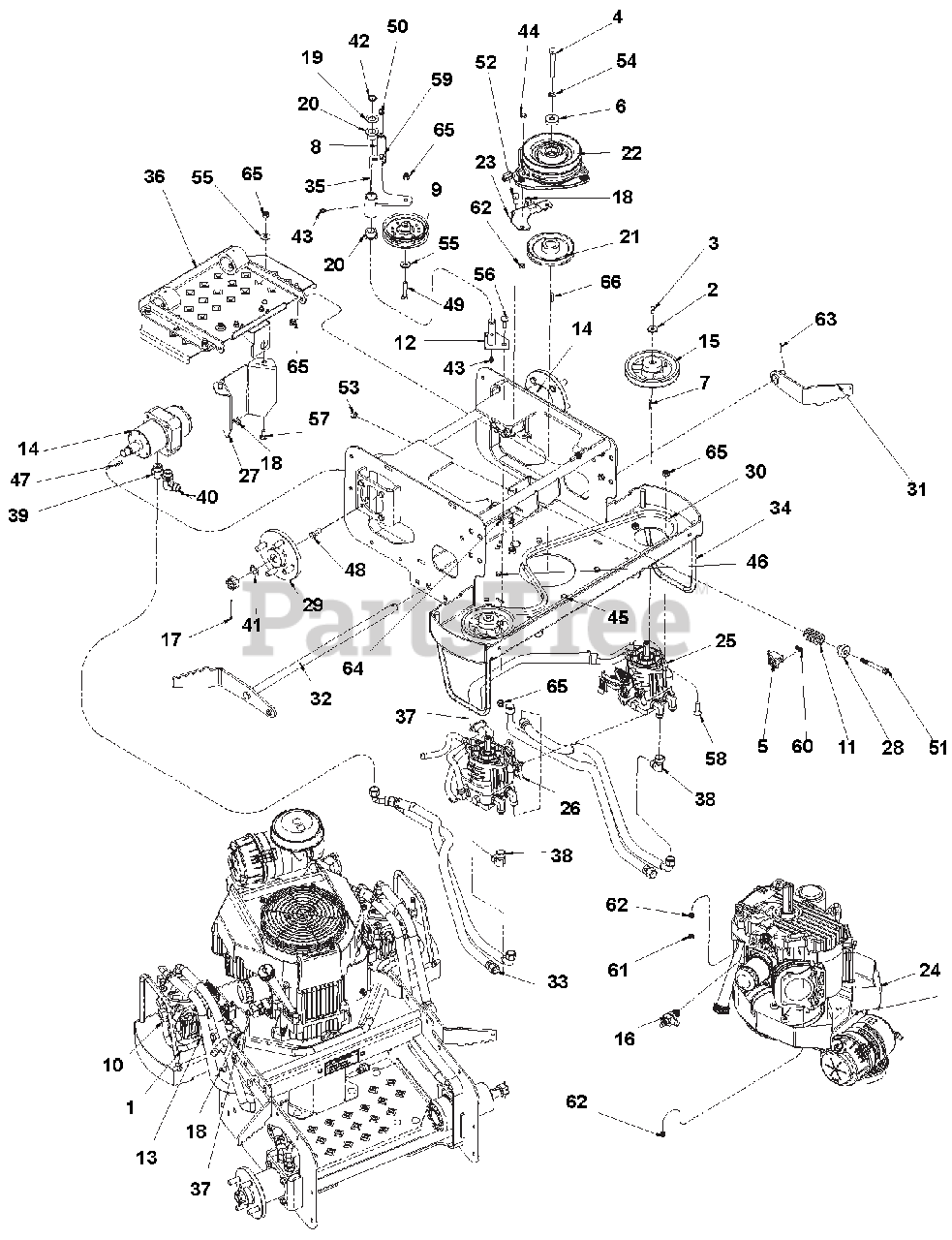

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000501 & Above) Engine, Hydraulic and Main Frame Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Engine, Hydraulic and Main Frame Assembly Parts Diagram

  • Title

1

Gravely DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

3

Gravely 05900124

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

4

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

5

Gravely D18038

SWITCH (N.0.)
(Superseded to 03657100)

Note: (N.0.)

$9.99

$

In Stock, Qty 18

0

6

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

7

Gravely D18067

SHAFT KEY

$

$

Not available

8

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

10

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, Qty 14

0

11

Gravely D38128

SPRING, COM 1.22X.162X2.50 Y

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 07300114

IDLER POST

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

14

Gravely 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

$959.99

$

Usually ships in 4-12 days

0

15

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$52.99

$

Usually ships in 4-12 days

0

16

Gravely TCA16240

FITTING, OIL DRAIN #

$

$

Not available

17

Gravely 06714100

PIN-CTR .125X2.00 YWZC

$

$

Not available

18

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05500132

BUSHING, MACH .750X1.25X.048 Y
(Superseded to 00150052)

$5.49

$

Usually ships in 4-12 days

0

20

Gravely 00191179

BRG, FLG .750X1.00X.750 BRNZ

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 00200318

PULLEY, V-BELT 4.78PD X 1.000

$58.99

$

Usually ships in 4-12 days

0

22

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$284.99

$

In Stock, only 3 left!

0

23

Gravely 00200666

PLATE, CLUTCH DOG

$52.99

$

Usually ships in 4-12 days

0

24

Gravely 00200675

ENGINE, KAWASAKI 19HP FH580V

$

$

Not available

25

Gravely 00200721

ASSEMBLY, HYD PUMP

$

$

Not available

26

Gravely 00200722

ASSEMBLY, HYD PUMP

$1612.99

$

Usually ships in 4-12 days

0

27

Gravely 00200769

COVER, OPC

$

$

Not available

28

Gravely 00200770

WASHER, SPRING Y

$

$

Not available

29

Gravely 00200959

ASSY, REAR WHEEL HUB

$193.99

$

Usually ships in 4-12 days

0

30

Gravely 00201009

BELT, HA 68.2 EL AMD OHR

$45.99

$

Usually ships in 4-12 days

0

31

Gravely 00201025

WLDT, RH BRAKE ARM

$52.99

$

Usually ships in 4-12 days

0

32

Gravely 00201027

WLDT, LH BRAKE

$

$

Not available

33

Gravely 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$78.99

$

Usually ships in 4-12 days

0

34

Gravely 03729402

WLDT, FIXD DECK GRVLY W/DECALS

$

$

Not available

35

Gravely 00201143

WLDT, IDLER PIVOT

$

$

Not available

36

Gravely 00201199

ASSY, FOOT PLATE

Note: (see page 8)

$

$

Not available

37

Gravely 00201051

ABRASION SLEEVE 3 FEET S/O

$

$

Not available

38

Gravely 00231046

ADAPTER, 3/4 FESW X 3/4MJICX90

$

$

Not available

39

Gravely 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

40

Gravely 00231647

FTG, 7/8ORB X 3/4JIC X 90

$

$

Not available

41

Gravely 24M7518

Shim, .020 x .787 x 1.102

$

$

Not available

42

Gravely 00403490

SNAP RING, .750 X .042 EXT

$

$

Not available

43

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

44

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

46

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

47

Gravely 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

48

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 00960049

BOLT, 3/8-16X1.75 HEX 5 Y
(Superseded to 05958500)

$1.99

$

In Stock, Qty 20+

0

50

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

51

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

52

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC
(Superseded to 05901920)

$2.99

$

Usually ships in 4-12 days

0

53

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

54

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

56

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

57

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

58

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

59

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

60

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

61

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

62

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

63

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

64

Gravely 06111100

SCR-MCH 10-24X.62 P/HD

$1.49

$

In Stock, Qty 10

0

65

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

66

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+
