994105 (1948 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Console Componets Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki

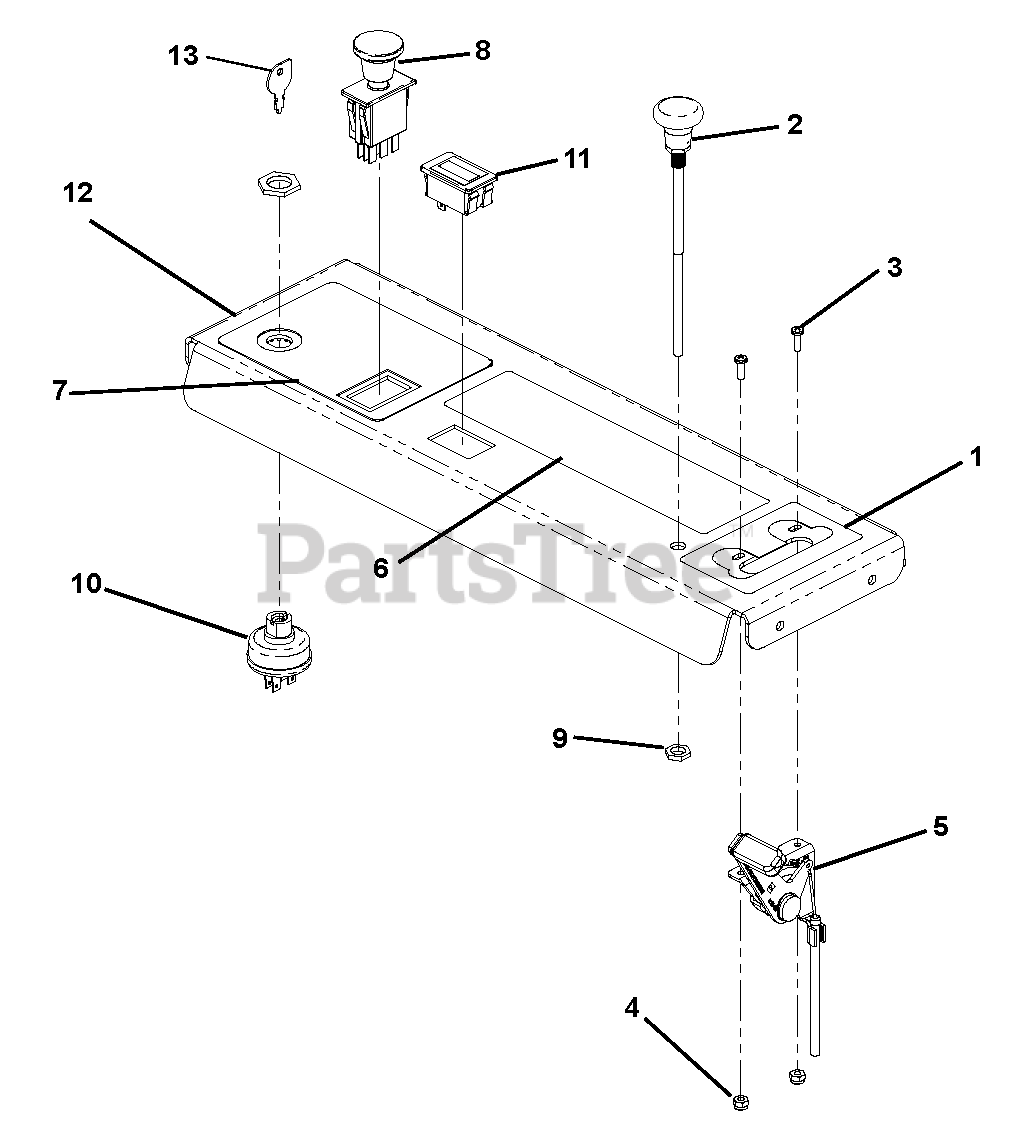

Console Componets Parts Diagram

  • Title

1

Gravely D18021

Decal, Throttle

$27.99

$

Usually ships in 4-12 days

0

2

Gravely D18427

Cable, Choke

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 06200013

Screw, 8-32 x .5

$

$

Not available

4

Gravely 06531300

Nut, Elastic Stop 8-32

$0.99

$

Usually ships in 4-12 days

0

5

Gravely TCA15051

Cable, Throttle

$22.99

$

Usually ships in 4-12 days

0

6

Gravely TCU14840

Decal, General Caution

$

$

Not available

7

Gravely TCU16481

Decal, PTO/Ignition

$

$

Not available

8

Gravely 00136574

Switch, PTO Engagement

$29.99

$

In Stock, Qty 5

0

9

Gravely 06529400

Nut, 3/8 UNF Hex Grade 5
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00180620

Switch, Key - 3 Position (Inclludes item 13)

Note: (Inclludes item 13)

$36.99

$

In Stock, only 1 left!

0

11

Gravely 00192296

Hour Meter -Digital

$70.99

$

Usually ships in 4-12 days

0

12

Gravely 03731501

Assembly, Control Panel w/Decals

$

$

Not available

13

Gravely 00105684

Key, Ignition (Service Only)
(Superseded to 02460700)

Note: (Service Only)

$10.99

$

In Stock, Qty 20+

0
