994105 (1948 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Deck Assembly - 48inch Decks Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki

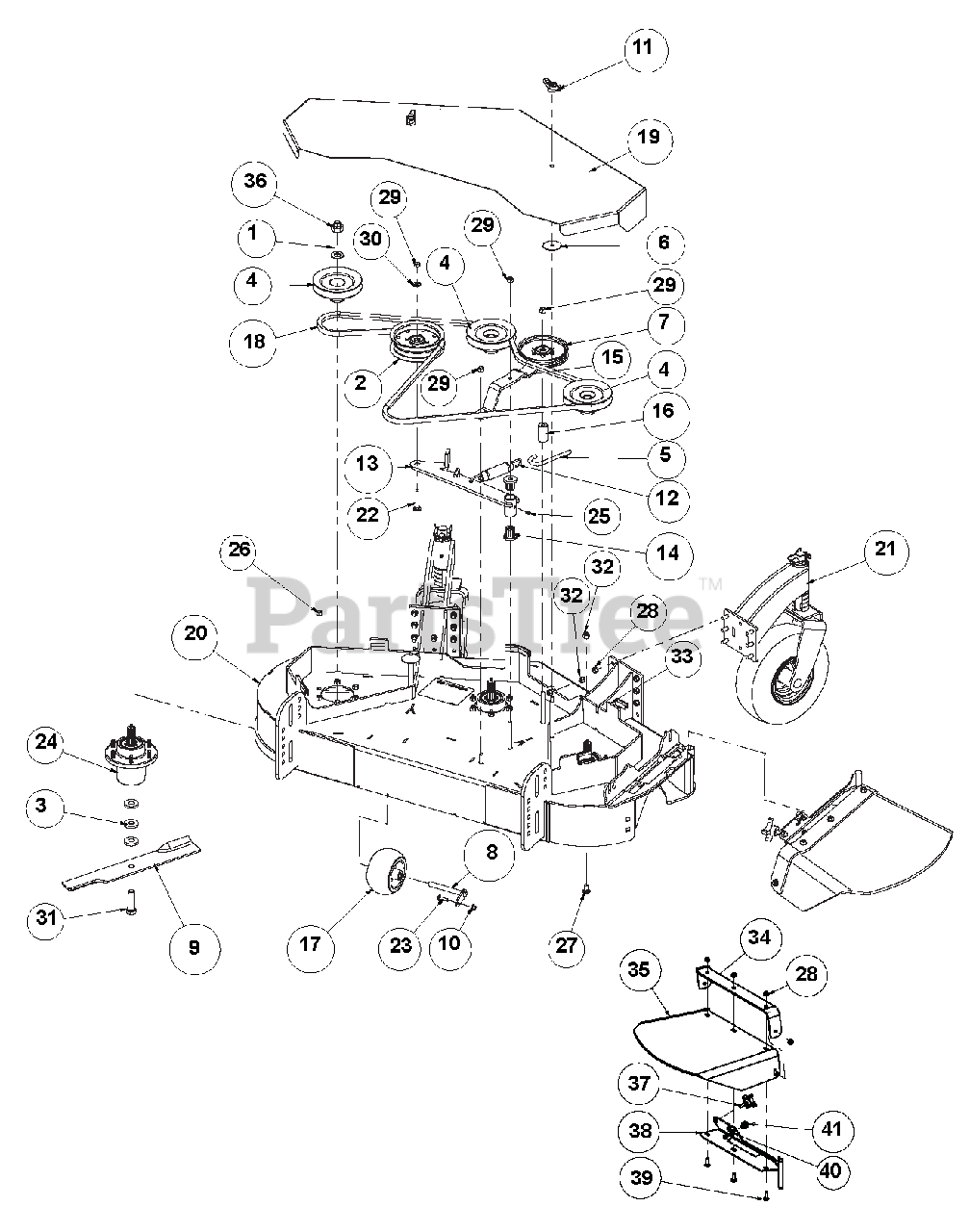

Deck Assembly - 48inch Decks Parts Diagram

  • Title

1

Gravely 03399703

Washer, .75 x 1.312 x .120

$3.99

$

In Stock, Qty 11

0

2

Gravely D18032

Pulley, Flat 5.0 x .38 w/Bearing
(Superseded to 07346700)

$79.99

$

In Stock, only 3 left!

0

3

Gravely 06400913

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 3 left!

0

4

Gravely 03828700

Pulley, Spline Spindle

$

$

Not available

5

Gravely D23058

J-Bolt, 3/8-16 x 4.00 Y

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 06400030

Washer, .402 x 2.00 x .055 Fend Y

$3.99

$

Usually ships in 4-12 days

0

7

Gravely D28050

Pulley, Flat 5.00 x .375 W/Bearing
(Superseded to 07352400)

$34.99

$

In Stock, only 1 left!

0

8

Gravely GDA10103

Pivot, Retainer Weld

$55.99

$

In Stock, Qty 7

0

9

Gravely GDU10230

Blade, 16.50 Lo-lift

$27.99

$

In Stock, Qty 19

0

10

Gravely 06500035

Nut-1/4" Flange Prevailing Tor

$1.99

$

Usually ships in 4-12 days

0

11

Gravely M119352

Knob, Locking

$3.99

$

In Stock, Qty 6

0

12

Gravely 08300040

Spring, Tension
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

13

Gravely TCA15346

Arm, Idler

$142.99

$

Usually ships in 4-12 days

0

14

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$14.99

$

In Stock, only 2 left!

0

15

Gravely TCU18344

Strap, Idler Pulley

$39.99

$

Usually ships in 4-12 days

0

16

Gravely TCU18742

Spacer

$17.99

$

Usually ships in 4-12 days

0

17

Gravely TCU18744

Wheel, Gage

$14.99

$

In Stock, only 4 left!

0

18

Gravely TCU18847

BELT, HB 98.6 EL AMD

$112.99

$

Usually ships in 4-12 days

0

19

Gravely 03729953

Shield, Deck w/Decals Gravely

$

$

Not available

20

Gravely 50532001

Gravely 48" Deck Weldment w/Decals

$

$

Not available

21

Gravely N/A

Assembly, Front Wheel Caster (see page 28 for parts)

Note: (see page 28 for parts)

$

$

Currently unavailable

22

Gravely 06213400

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06219800

Bolt, 1/4-20 x 1.00 Round Head Square Neck Y
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 00200262

Assembly, Spindle Housing

$250.99

$

In Stock, only 1 left!

0

25

Gravely 00959995

Fitting, 1/4-28 Straight Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

27

Gravely 00963033

Bolt, 3/8-16 x 3/4 Car Grade 5 LNnk

$

$

Not available

28

Gravely 00964016

Locknut, 3/8-16 Whiz Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06508000

Nut, Locking-Flange .375-16

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06436200

Washer, .406 x .813 x .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05970002

Bolt, Hex .62-11X 2.00 Grade 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

32

Gravely 06535800

Locknut, 3/8-16 Nyloc Y
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

33

Gravely 00999538

Trim 1/4 (1 foot, cut as needed)

Note: (1 foot, cut as needed)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 03983853

Strap, Rubber Discharge

$62.99

$

Usually ships in 4-12 days

0

35

Gravely 04044200

Shield, Rubber Discharge

$68.99

$

In Stock, only 1 left!

0

36

Gravely 00964024

Locknut, 3/4-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

37

Gravely 03820400

Knob, 3/8 x 1.25-4 Prong

$10.99

$

In Stock, only 3 left!

0

38

Gravely 04092453

Plate, Discharge 48 FL

$

$

Not available

39

Gravely 00963020

Bolt, 3/8-16 x 1.00
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

40

Gravely 00964019

Locknut, 5/16-18 Whiz
(Superseded to 06530400)

$1.49

$

In Stock, only 2 left!

0

41

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0
