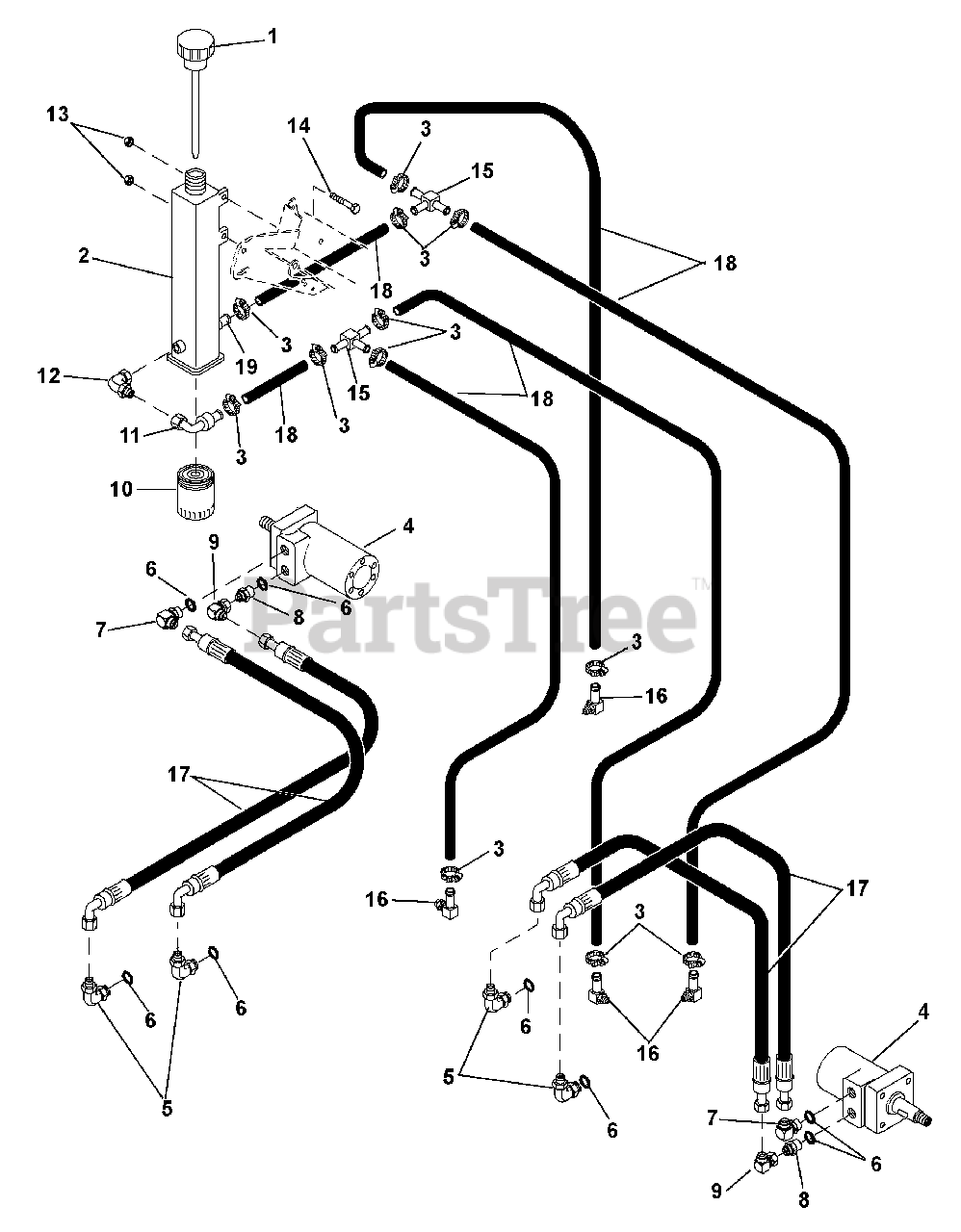

994105 (1948 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Hydraulic Componets Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Hydraulic Componets Parts Diagram

  • Title

1

Gravely TCA15122

Cap

$27.99

$

Usually ships in 4-12 days

0

2

Gravely TCA15373

Hydraulic Reservoir, Includes Decal

$

$

Not available

3

Gravely D18379

Hose Clamp

$3.99

$

Usually ships in 4-12 days

0

4

Gravely TCA15078

Wheel Motor

$

$

Not available

5

Gravely D14196

Fitting, Includes O-Ring

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 05600007

O-Ring, Included With Fitting

$

$

Not available

7

Gravely 00231647

Adapter, 7/8 ORB x 3/4JIC x 90

$

$

Not available

8

Gravely 00231104

Adapter, Hydraulic, 3/4-16MJIC x 7/8-14 MOR

$

$

Not available

9

Gravely 00231046

Adapter, 3/4 FESW x 3/4 MJIC x 90

$

$

Not available

10

Gravely GDA10137

Element, Oil Filter

$28.99

$

In Stock, Qty 5

0

11

Gravely GDA10066

Elbow Fitting

$

$

Not available

12

Gravely 00313270

Adapter 2503-6-6

$9.49

$

In Stock, only 1 left!

0

13

Gravely 06535800

Nut, Locking, Nylon 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

14

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

15

Gravely M86863

Tee Fitting

$

$

Not available

16

Gravely D24028

Fitting, Adapter .562-18 Steel Thread

$9.99

$

Usually ships in 4-12 days

0

17

Gravely D18394

Hose, High Pressure

$92.99

$

Usually ships in 4-12 days

0

18

Gravely DT5332

Hose, Return

$5.99

$

Usually ships in 4-12 days

0

19

Gravely GDA10065

Adapter, Straight Fitting

$

$

Not available

Gravely M78480

Tie Straps

$

$

Not available
