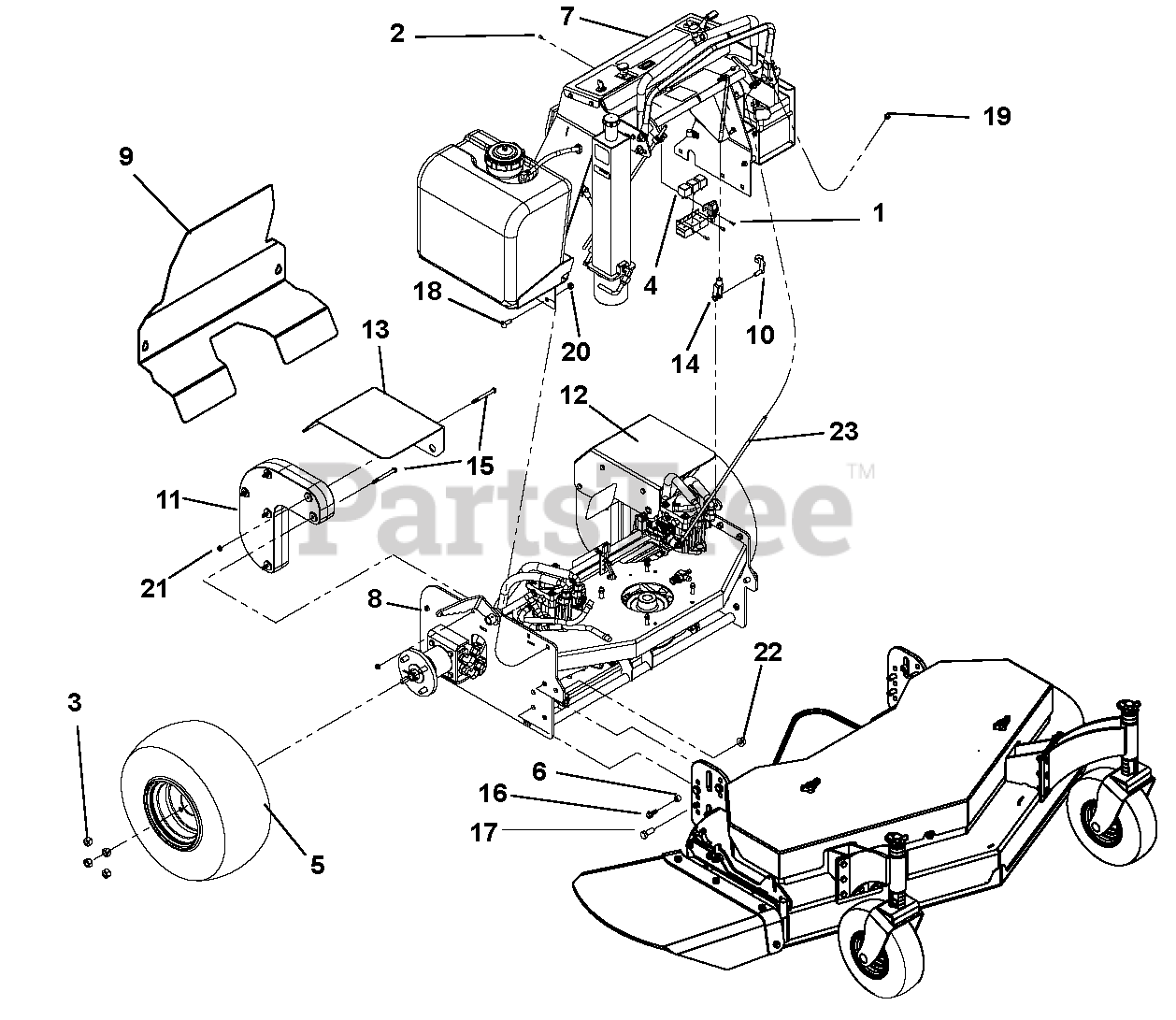

994105 (1948 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Main Frame Assembly Parts Diagram

  • Title

1

Gravely 06200013

Bolt, Hex 8-32 x .5

$

$

Not available

2

Gravely 06531300

Nut, Locking, Nylon 8-32

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 00960526

Nut, Lug .5-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00102770

Relay, ISO Mini Electric

$21.99

$

In Stock, only 1 left!

0

5

Gravely 00200779

Assembly, Tire/Wheel 18/8.5 x 8

$

$

Not available

6

Gravely 00200672

Spacer, .625 x .120 x .400

$12.99

$

Usually ships in 4-12 days

0

7

Gravely N/A

Assembly, Console (See Console Components on page 23.)

Note: (See Console Components on page 23.)

$

$

Currently unavailable

8

Gravely 03731102

Power Unit (See Engine, Hydraulic and Mainframe Assembly on page 10.)

Note: (See Engine, Hydraulic and Mainframe Assembly on page 10.)

$

$

Not available

9

Gravely 03732620

Foot Guard w/Decals S/O

$

$

Not available

10

Gravely 06700005

Pin, CVS SPG 3/8" Yoke
(Superseded to 00200658)

$

$

Not available

11

Gravely 00200775

Weight, Cast Drilled

$

$

Not available

12

Gravely 00200180

Fender, LH

$

$

Not available

13

Gravely 00200181

Fender, RH
(Superseded to 00200751)

$

$

Not available

14

Gravely 08800400

Yoke, 3/8-24 RH Adjustable

$11.99

$

In Stock, only 1 left!

0

15

Gravely 05961100

Bolt, .31-18 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 00960044

Bolt, .38-16 x 1.00, Washer Head Grade 8

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 05958900

Bolt, .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529500

Nut, Hex .312-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 06534900

Nut, Locking, .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

21

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 06543300

Nut, Locking .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely D13029

Control Rod

$43.99

$

Usually ships in 4-12 days

0
