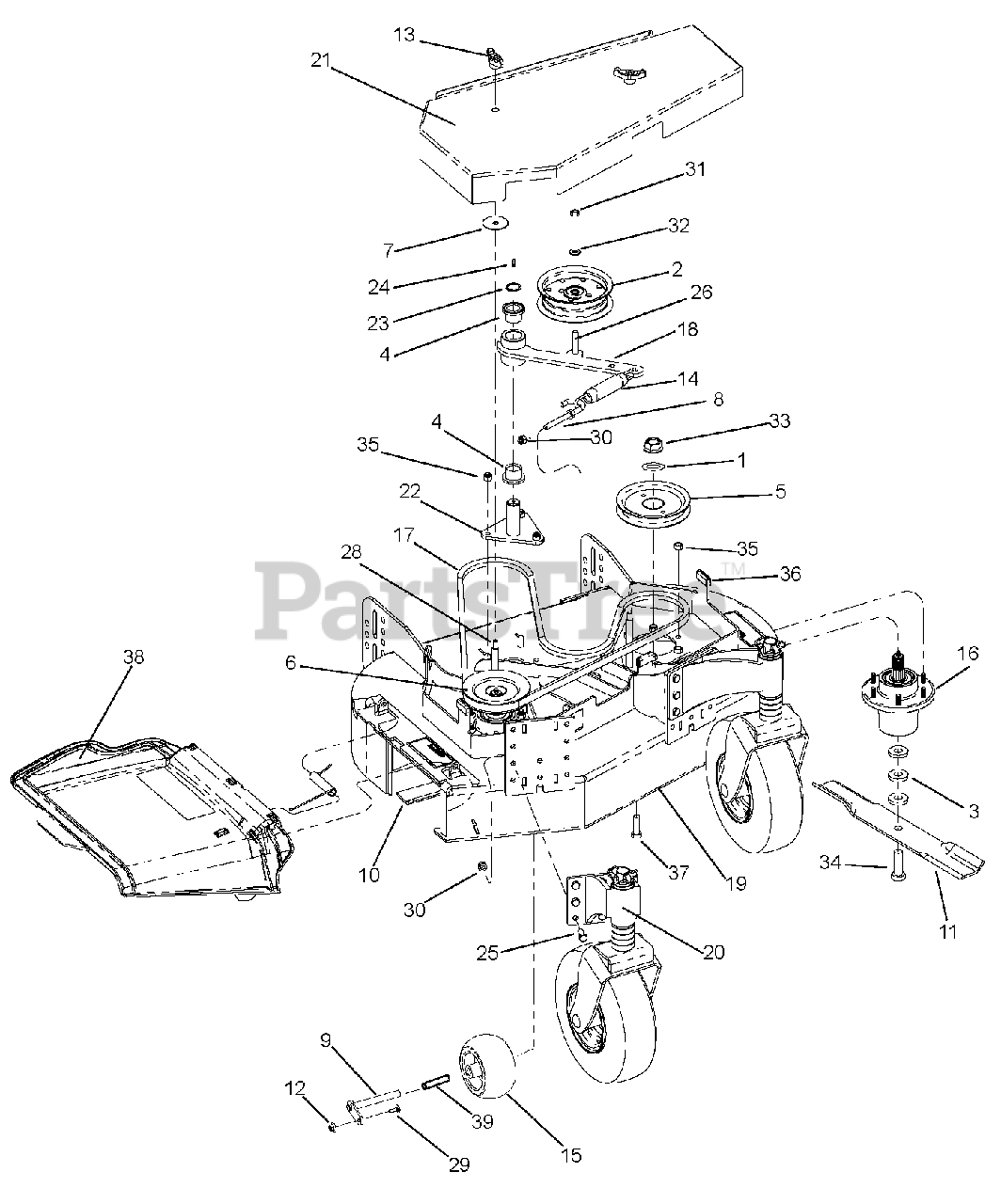

994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Deck Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

Deck Assembly Parts Diagram

  • Title

1

Gravely 03399703

Washer, .75 x 1.3125 x .120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

2

Gravely D18032

Pulley, Flat 5.0 x .38 w/Bearing
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

3

Gravely 06400913

Washer, Blade
(Superseded to 06401033)

$7.49

$

In Stock, only 2 left!

0

4

Gravely 04366100

Bearing, Flg 1.00 x 1.25 x 1.00

$17.99

$

In Stock, only 3 left!

0

5

Gravely 03399702

Pulley, Spline Spindle Offset

$76.99

$

In Stock, Qty 5

0

6

Gravely 03828700

Pulley, V-belt 5.27 x .990 w/Spl

$

$

Not available

7

Gravely 06400030

Washer, .402 x 2.00 x .055 Fend Y

$4.99

$

Usually ships in 4-12 days

0

8

Gravely D23058

J-bolt, 3/8-16 x 4.00 Y

$6.49

$

Usually ships in 4-12 days

0

9

Gravely GDA10103

Pivot, Retainer Weld

$56.99

$

In Stock, Qty 7

0

10

Gravely GDU10230

Blade, 16.50 Lo-Lift

$29.99

$

In Stock, Qty 10

0

11

Gravely GDU10231

Blade, 18"

$31.99

$

In Stock, Qty 16

0

12

Gravely 06500035

Nut, 1/4" Flange

$2.49

$

Usually ships in 4-12 days

0

13

Gravely M119352

Knob, Locking

$3.99

$

In Stock, only 4 left!

0

14

Gravely N242189

Spring, Tension

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 03905900

Wheel, Gage

$13.99

$

In Stock, Qty 20+

0

16

Gravely 00200262

Assembly, Spindle Housing

$294.99

$

In Stock, only 1 left!

0

17

Gravely 07200541

Belt, HB 80.3 El AMD OHR

$74.99

$

Usually ships in 4-12 days

0

18

Gravely 00201145

Weldment, Idler Arm

$61.99

$

Usually ships in 4-12 days

0

19

Gravely 56324001

Weldment, 34" Deck w/Decals

$

$

Not available

20

Gravely N/A

Assembly, Front Wheel Caster (see page 20 for parts)

Note: (see page 20 for parts)

$

$

Currently unavailable

21

Gravely 00201312

Shield, Deck 34 w/Decals

$

$

Not available

22

Gravely 00201178

Weldment, Idler Pivot

$

$

Not available

23

Gravely 05700160

Snap Ring, 1.00 x .042 Ext

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 00959995

Grease Zerk, 1/4-28 Straight .69 LG

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 05948700

Bolt, Hex .38-16 x 1.0
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05962900

Bolt, 3/8-16 x 2.25 Hex Grade 5 Y
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 06529200

Nut, Hex .38-16 Grade 5 Y
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

28

Gravely 06212000

Bolt, .38-16 x 1 Grade 5 Round Head Square Neck
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06219900

Bolt, 1/4-20 x .750 Round Head Square Neck Grade 5 Y
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

30

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06543800

Nut, .38-16 Low Crown Locking Acorn
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06436200

Washer, .406 x .813 x .065 Flat Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06500709

Nut, 3/4-16 Flange Grade 8 Y
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

34

Gravely 05970002

Bolt, 5/8-11 x 2.00 Hex Grade 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

35

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

36

Gravely 00999538

Trim 1/4, 2" L

$6.49

$

Usually ships in 4-12 days

0

37

Gravely 06223900

Bolt, 5/16-18 x .750 Hex 5 Y
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

38

Gravely 56324002

Discharge Chute Assembly, (see page page 21)

Note: (see page page 21)

$

$

Not available

39

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0
