994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Discharge Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

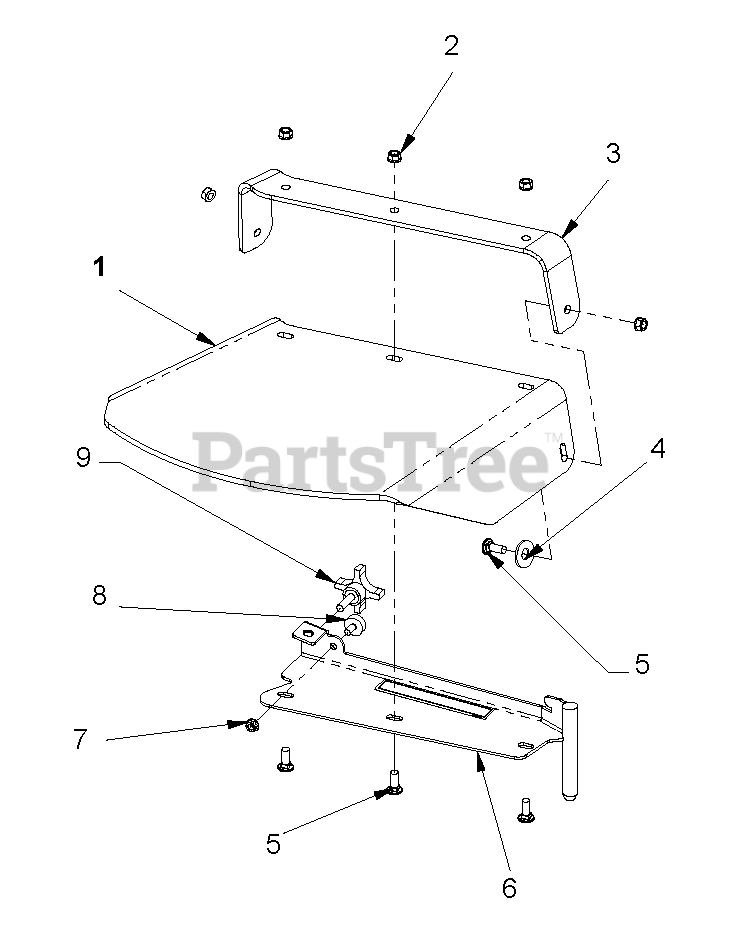

Discharge Assembly Parts Diagram

  • Title

1

Gravely 04044200

Discharge, Rubber

$68.99

$

In Stock, only 1 left!

0

2

Gravely 06534900

Nut, Lock 3/8-16 Whiz Y
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

3

Gravely 03983853

Strap, Walk Rubber Discharge

$62.99

$

Usually ships in 4-12 days

0

4

Gravely 06442000

Washer, .50 Flat Y
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

5

Gravely 06224100

Bolt, 3/8-16 x 1.00 Carriage Grade 5 Y
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

6

Gravely 56324003

Assembly, 34" Discharge w/Decals

$

$

Not available

7

Gravely 06530400

Nut, Lock 5/16-18 Whiz Y
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

9

Gravely 03820400

Knob, 3/8 x 1.25 4-Prong

$10.99

$

In Stock, only 3 left!

0
