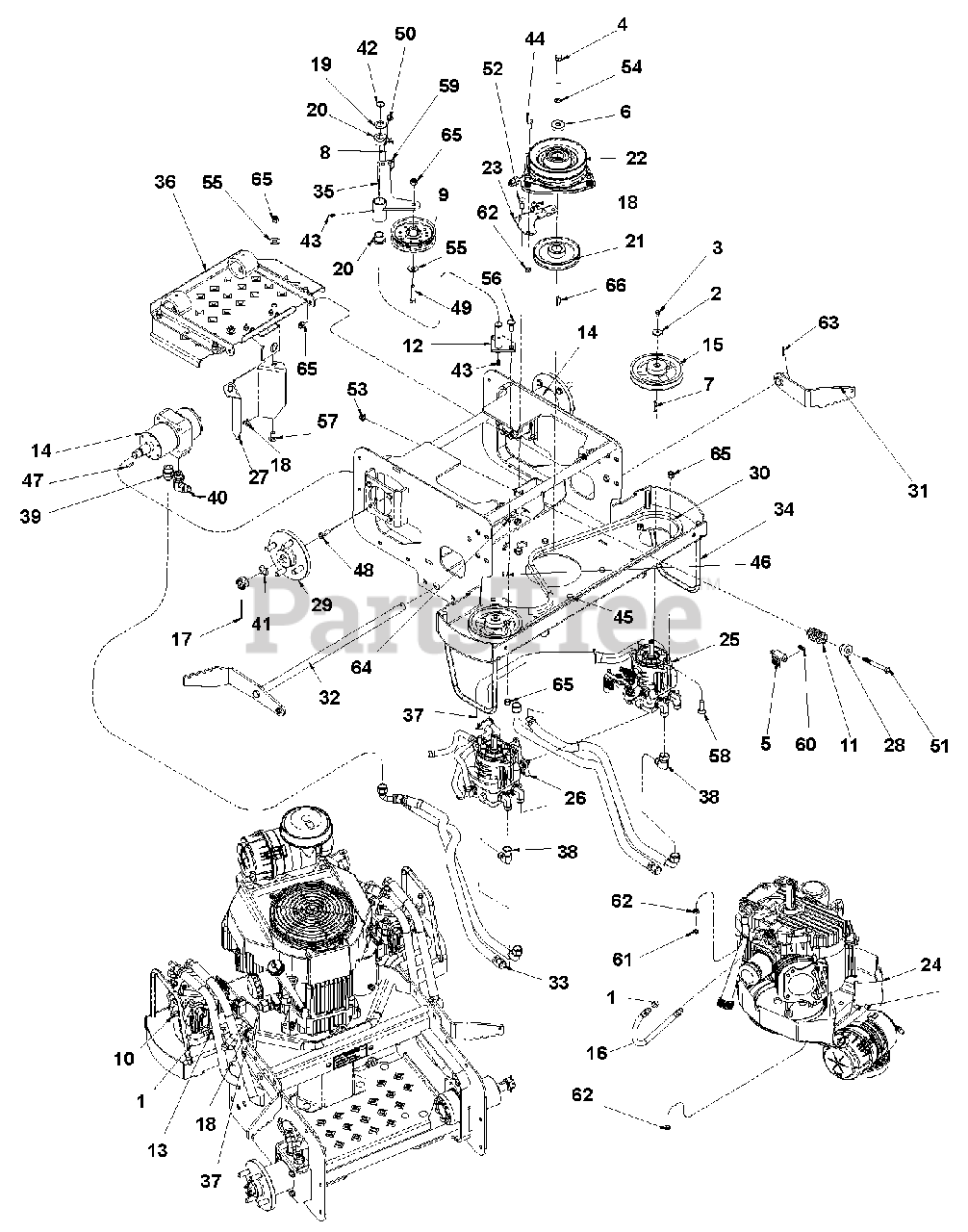

994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Engine, Hydraulic And Main Frame Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

Engine, Hydraulic And Main Frame Assembly Parts Diagram

  • Title

1

Gravely 03873200

Pipe Cap 3/8 NPT Female

$14.99

$

Usually ships in 4-12 days

0

2

Gravely D14160

Washer, .250 Wide Heavy Flat Y

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 05900124

Bolt, M6 x 1.00 x 10 Hex 8.8 Y

$

$

Not available

4

Gravely 05900040

Bolt, 7/16-20 x 3.00 Hex 5 Y

$7.49

$

Usually ships in 4-12 days

0

5

Gravely D18038

Switch (N.0.)
(Superseded to 03657100)

Note: (N.0.)

$9.99

$

In Stock, Qty 14

0

6

Gravely D18056

Spacer, .468 x 1.38 x .375 Y

$22.99

$

Usually ships in 4-12 days

0

7

Gravely D18067

Key, M5 x M5 x M30 RD

$

$

Not available

8

Gravely D18071

Spring, Ext .900 x .135 x 4.50 Y

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 07300039

Pulley, V-belt 4.00 x .379 w/Bearing
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

10

Gravely D18379

Clamp, Hose - 1/2" Pinch

$3.99

$

In Stock, Qty 14

0

11

Gravely D38128

Spring, Com 1.22 x .162 x 2.50 Y

$18.99

$

Usually ships in 4-12 days

0

12

Gravely GDA10004

Weldment, Pivot Idler Mount

$

$

Not available

13

Gravely M86863

Fitting, Tun 3/8 Hose

$

$

Not available

14

Gravely 09115400

Motor, Wheel HGM-12p-7172

$

$

Not available

15

Gravely TCA15316

Assembly, Pump Pulley w/Set Screw

$52.99

$

Usually ships in 4-12 days

0

16

Gravely 04271700

Fitting, Oil Drain

$35.99

$

Usually ships in 4-12 days

0

17

Gravely 06714100

Pin, Cot .125 x 2.00 EXTP Y

$

$

Not available

18

Gravely 07519900

Tie Wrap, Black

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 00150052

Bushing, Machine .750 x 1.25 x .048

$5.49

$

Usually ships in 4-12 days

0

20

Gravely 00191179

Bearing, Flange .750 x 1.000 x .750 x 1.250

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 07300121

Pulley, V-belt 4.78pd x 1.000

$180.99

$

Usually ships in 4-12 days

0

22

Gravely 03789900

Clutch Assembly, Ogura

$370.99

$

In Stock, only 2 left!

0

23

Gravely 00200666

Plate, Clutch Dog

$52.99

$

Usually ships in 4-12 days

0

24

Gravely 08200719

Engine, Kawasaki 16hp F x 481

$

$

Not available

25

Gravely 00200721

Assembly, Hyd Pump

$

$

Not available

26

Gravely 00200722

Assembly, Hyd Pump

$1612.99

$

Usually ships in 4-12 days

0

27

Gravely 00200769

Cover, Operator Presence Control

$

$

Not available

28

Gravely 00200770

Washer, Spring Y

$

$

Not available

29

Gravely 00200959

Assy, Rear Wheel Hub

$193.99

$

In Stock, only 2 left!

0

30

Gravely 07226400

Belt, HA 68.2 EL AMD OHR

$53.99

$

In Stock, Qty 20+

0

31

Gravely 00201025

Weldment, Brake Arm Right Hand

$52.99

$

Usually ships in 4-12 days

0

32

Gravely 00201027

Weldment, Brake Shaft Left Hand

$

$

Not available

33

Gravely 00201091

Hose, Hyd 1/2 x 26-1/2 Ezflex

$78.99

$

Usually ships in 4-12 days

0

34

Gravely 04359053

Weldment, Frame 34 w/Decals

$

$

Not available

35

Gravely 00201143

Weldment, Idler Pivot

$

$

Not available

36

Gravely 00201199

Assy, Foot Plate (see page 8)

Note: (see page 8)

$

$

Not available

37

Gravely 00201206

Abrasion Sleeve

$

$

Not available

38

Gravely 00231046

Adapter, .75 FESW x 3/4 MJIC X 90

$

$

Not available

39

Gravely 00231104

Adapter, Hydraulic Steel 7/8 "O" To .75

$

$

Not available

40

Gravely 00231647

Adapter, 8MJ-10MB90

$

$

Not available

41

Gravely 00150052

Shim, .020 x .787 x 1.102

$5.49

$

Usually ships in 4-12 days

0

42

Gravely 05700135

Ring, Retaining-External .750 x .042

$2.99

$

In Stock, only 2 left!

0

43

Gravely 00959995

Grease Zerk, .25-28 Straight .69 LG

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 05901507

Bolt, Hex .38-16 x 1.25 FTH Grade 5 EP80YZ

$2.99

$

In Stock, only 3 left!

0

46

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

47

Gravely 06608700

Key, Woodruff .1875 x .75

$1.49

$

In Stock, Qty 20+

0

48

Gravely 05948700

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 05963300

Bolt, 3/8-16 x 1.75 Hex 5
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

50

Gravely 05958400

Bolt, 3/8-16 x 2.50 Hex 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

51

Gravely 05961100

Bolt, 3/8-16 x 3.25 Hex 5
(Superseded to 05901817)

$4.99

$

In Stock, Qty 15

0

52

Gravely 05900121

Bolt, 7/16-14 x .750 Hex 5

$

$

Not available

53

Gravely 06529400

Nut-Hex .31-18
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 06308800

Washer, .375 Medium Spring Lock Y
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

55

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

56

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

57

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

58

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

59

Gravely 06535900

Nut, .38-16 Jam Grade 5
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

60

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

61

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

62

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

63

Gravely 05800005

Pin-Roll .156 x 1.00

$2.49

$

Usually ships in 4-12 days

0

64

Gravely 00967340

Screw, Machine 10-24 x .625 Panhead

$0.99

$

Usually ships in 4-12 days

0

65

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

66

Gravely D18145

Key, .250 x .250 x .995 TPR

$7.49

$

Usually ships in 4-12 days

0
