994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Foot Plate And Console Components Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

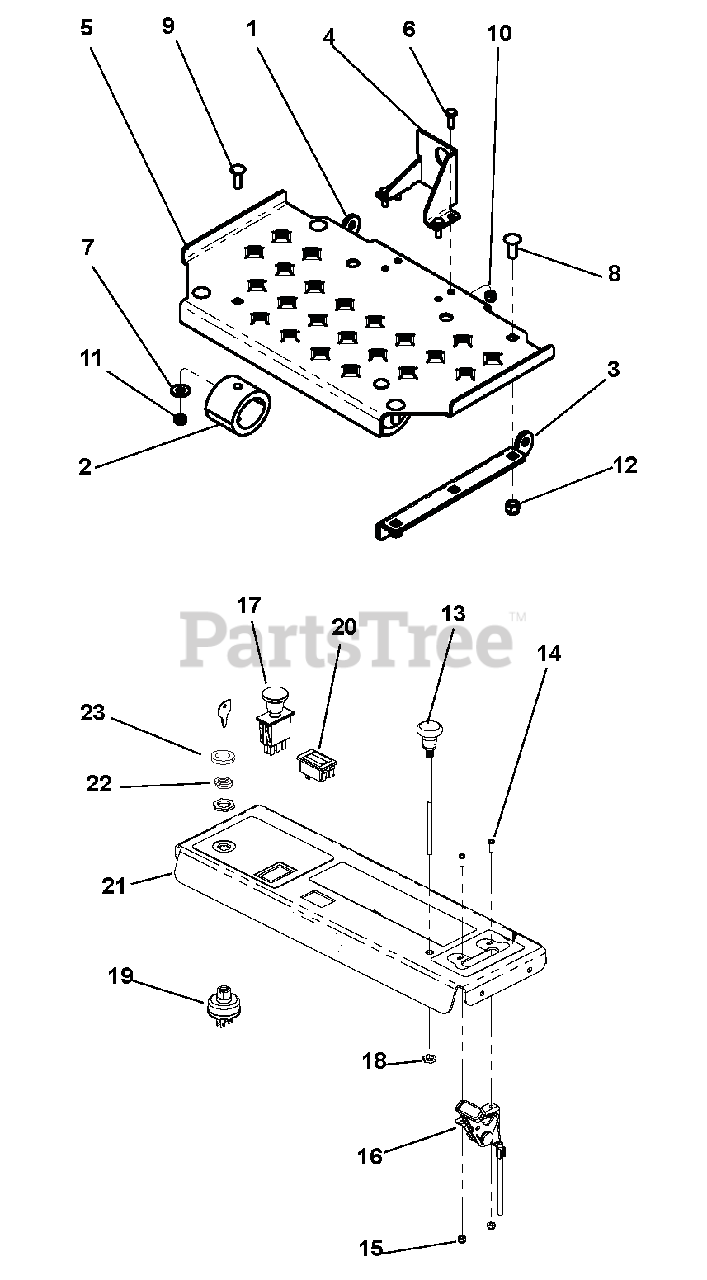

Foot Plate And Console Components Parts Diagram

  • Title

1

Gravely 00200693

PLATE, PLATFORM TAB LH

$

$

Not available

2

Gravely 00200655

BUMPER, MINER GBR-6

$

$

Not available

3

Gravely 00200619

PLATE, PLATFORM TAB

$

$

Not available

4

Gravely 00200767

ANCHOR, OPC

$

$

Not available

5

Gravely 00201136

PLATFORM

$

$

Not available

6

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

7

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06900435

CABLE,CHOKE

$71.99

$

Usually ships in 4-12 days

0

14

Gravely 06200013

BLT-HEX 8-32 X .5 YWZC

$

$

Not available

15

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06900436

CABLE,THROTTLE

$71.99

$

Usually ships in 4-12 days

0

17

Gravely 04311800

SWITCH, CLUTCH (WITH GRAPHIC)

$46.99

$

In Stock, only 3 left!

0

18

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 00180620

SWITCH, KEY - 3 POSITION

$36.99

$

In Stock, Qty 5

0

20

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

21

Gravely 03731501

CONTROL PANEL GRAVELY W/DECALS

$

$

Not available

22

Gravely 06517300

NUT-PANEL .625-32 GRECO

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 12

0
