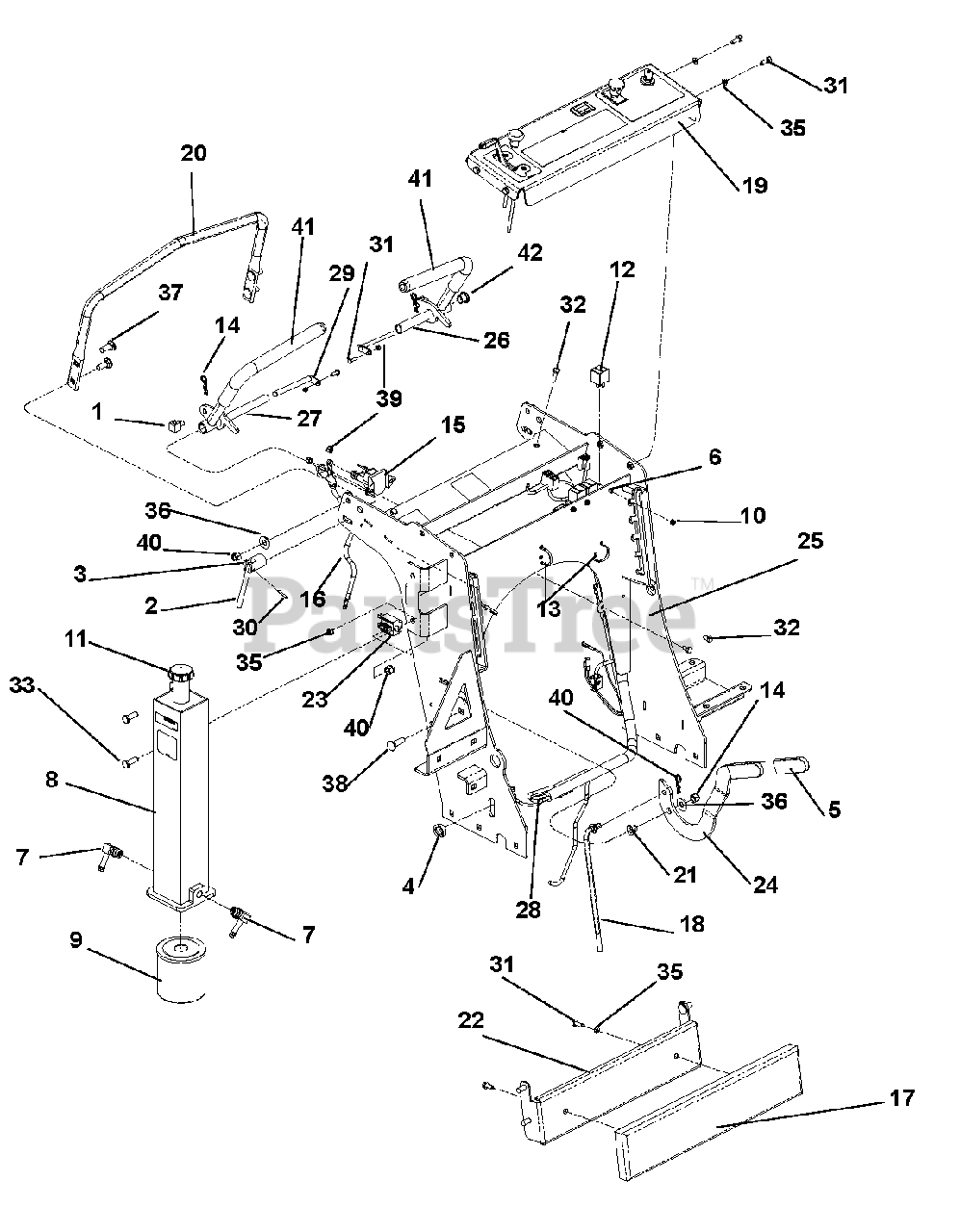

994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely D13028

SWIVEL ADJUSTER-THREAD SIZE 5/

$85.99

$

Usually ships in 4-12 days

0

2

Gravely D13309

LEVER, LOCK Y

$

$

Not available

3

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

4

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0

5

Gravely D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06200013

BLT-HEX 8-32 X .5 YWZC

$

$

Not available

7

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

8

Gravely TCA15373

RESERVOIR, HYDRAULIC

$

$

Not available

9

Gravely GDA10137

FILTER, OIL

$29.99

$

In Stock, Qty 5

0

10

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

11

Gravely TCA15122

CAP, FILLER, OIL

$27.99

$

In Stock, only 2 left!

0

12

Gravely 00102770

RELAY, ISO MINI ELEC.

$27.99

$

Usually ships in 4-12 days

0

13

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06703600

PIN-HAIR INT .09X1.65 PL
(Superseded to 00121080)

$2.99

$

In Stock, Qty 8

0

15

Gravely 03551000

SOLENOID

$43.99

$

In Stock, Qty 6

0

16

Gravely 00180842

CABLE, 12" STARTER

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 00200606

PAD, THIGH

$

$

Not available

18

Gravely 00200615

LINK, BRAKE Y

$32.99

$

Usually ships in 4-12 days

0

19

Gravely 03731501

CONTROL PANEL GRAVELY W/DECALS

$

$

Not available

(switches sold seperately)

Note: (switches sold seperately)

$

$

Not available

20

Gravely 03730751

SUPPORT, HANDLE PAINTED

$

$

Not available

21

Gravely 00200671

BUSHING, BRAKE PIVOT Y

$

$

Not available

22

Gravely 00200690

WLDT, THIGH PAD BRACKET

$65.99

$

Usually ships in 4-12 days

0

23

Gravely 00200705

SWITCH, NO-NO-NC GREY PLUNGER

$17.99

$

Usually ships in 4-12 days

0

24

Gravely 00201022

BRAKE LEVER, OFFSET

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 50546013

WLDT, 34" CONSOLE W/ DECALS

$

$

Not available

26

Gravely 03731000

RH CONTROL LEVER W/GRIP

$246.99

$

Usually ships in 4-12 days

0

27

Gravely 03730900

LH CONTROL LEVER W/GRIP

$

$

Not available

28

Gravely 04375000

HARNESS, 34" STANCE 2011

$

$

Not available

29

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

32

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

33

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

35

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

36

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

40

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

41

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$8.49

$

In Stock, only 1 left!

0

42

Gravely 00200116

BRG, FLG .500X.620X.500 BRNZ

$6.49

$

Usually ships in 4-12 days

0
