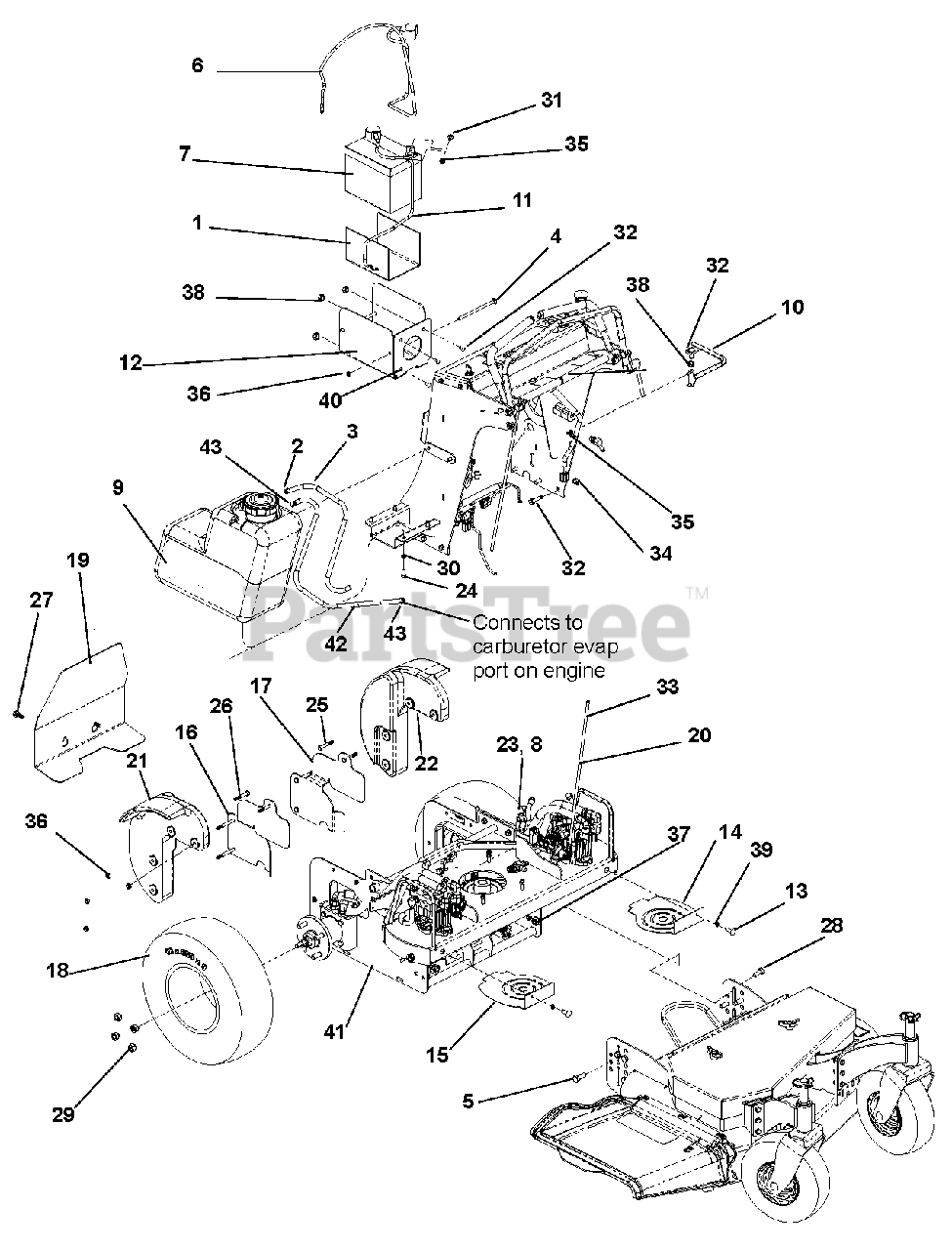

994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

Main Frame Assembly Parts Diagram

  • Title

1

Gravely D28159

STRIP, RUBBER

$

$

Not available

2

Gravely 03278800

CLAMP, FUEL LINE

Note: (Red) #

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200128

BLT-RDHDSQNK .31-18X6.00 G5 Y

$7.49

$

Usually ships in 4-12 days

0

5

Gravely 07070119

BLT-SHLDR .5X1.06X.38-16 SLD 5

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00191216

CABLE, BATTERY - 35" POSITIVE

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

8

Gravely 00200658

PIN, CVS SPG 3/8" YOKE SPEC Y

$

$

Not available

9

Gravely 04952900

TANK, FUEL W/CAP CARB 34FX

$

$

Not available

10

Gravely 00201012

WLDMT, RESERVOIR GUARD

$

$

Not available

11

Gravely 00191227

CABLE, BATTERY - 35" GROUND

$

$

Not available

12

Gravely 00201362

CONSLE BTRY BRKT W/DCAL GRVLY

$

$

Not available

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

14

Gravely 00201327

SHIELD, LH PUMP GRAVELY

$

$

Not available

15

Gravely 00201330

SHIELD, RH PUMP GRAVELY

$

$

Not available

16

Gravely 03731200

SHIELD, RH MOTOR W/DECAL

$

$

Not available

17

Gravely 03731300

SHIELD, LH MOTOR W/DECAL

$

$

Not available

18

Gravely 00201150

ASSY, TIRE/WHL 18-6.50-8

$139.99

$

Usually ships in 4-12 days

0

19

Gravely 00298420

SHIELD, ENGINE W/DECALS GRVLY

$

$

Not available

20

Gravely 00201194

ROD, CONTROL 5/16-24 X 22.75
(Superseded to AA201194)

$

$

Not available

21

Gravely 00201202

RH CAST WEIGHT MACHINED

$

$

Not available

22

Gravely 00201204

LH CAST WEIGHT MACHINED

$

$

Not available

23

Gravely 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$16.99

$

Usually ships in 4-12 days

0

24

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

26

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

29

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05900122

BOLT, 1/4-20X.625 WSH Y

$

$

Not available

32

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

36

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

37

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

38

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

39

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

40

Gravely 03743400

TRIM, RUBBER EDGE 2"

$

$

Not available

41

Power Unit 19 Narrow (see page 12)

Note: (see page 12)

$

$

Not available

42

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

43

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0
