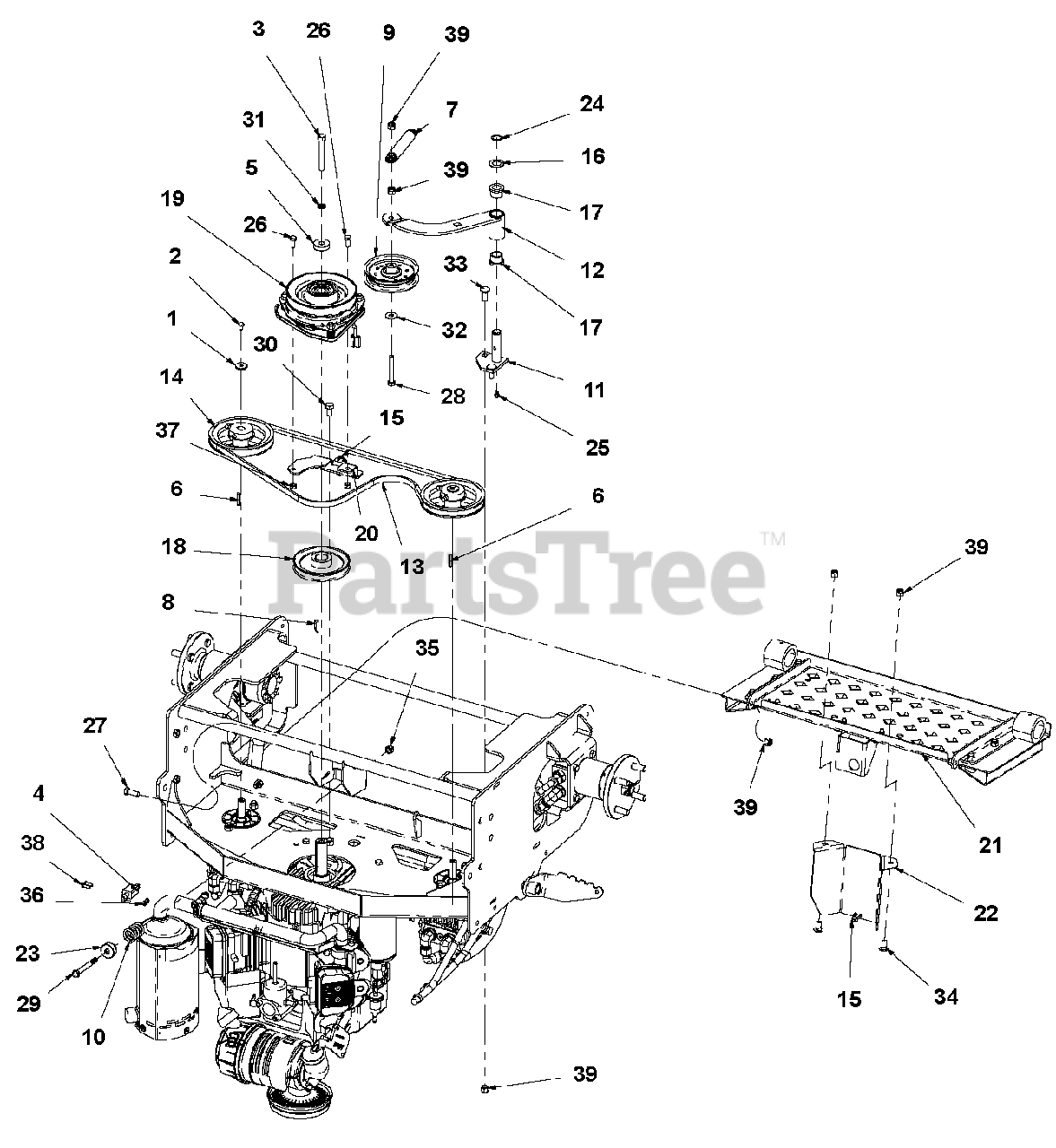

994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Clutch, Pump Components And Foot Plate Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

Clutch, Pump Components And Foot Plate Assembly Parts Diagram

  • Title

1

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

2

Gravely 05900124

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

3

Gravely 05900040

BLT-HEX .44-20X2.25 G5 YZ EP80

$7.49

$

Usually ships in 4-12 days

0

4

Gravely D18038

SWITCH (N.0.)
(Superseded to 03657100)

Note: (N.0.)

$9.99

$

In Stock, Qty 18

0

5

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 06600005

KEY, SPECIAL M5 X 28
(Superseded to D18067)

$

$

Not available

7

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

8

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

10

Gravely 08300038

SPRING
(Superseded to D38128)

$18.99

$

Usually ships in 4-12 days

0

11

Gravely GDA10004

WLDT, PIVOT IDLER MOUNT

$

$

Not available

12

Gravely GDA10005

ARM, IDLER WELDMENT

$80.99

$

Usually ships in 4-12 days

0

13

Gravely 07200118

V-BELT
(Superseded to GDU10025)

$46.99

$

Usually ships in 4-12 days

0

14

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$52.99

$

Usually ships in 4-12 days

0

15

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

17

Gravely 00191179

BRG, FLG .750X1.00X.750 BRNZ

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 07300121

SHEAVE, ENGINE 4.75X1.125

$180.99

$

Usually ships in 4-12 days

0

19

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 1 left!

0

20

Gravely 00200666

PLATE, CLUTCH DOG

$52.99

$

Usually ships in 4-12 days

0

21

Assembly, Foot Plate (See Foot Plate on page 22.)

Note: (See Foot Plate on page 22.)

$

$

Not available

22

Gravely 00200769

COVER, OPC

$

$

Not available

23

Gravely 06400027

WASHER, SPRING Y
(Superseded to 00200770)

$

$

Not available

24

Gravely 05700135

SNAP RING, .750 X .042 EXT

$2.99

$

In Stock, only 2 left!

0

25

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC
(Superseded to 05901920)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

35

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

36

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

38

Gravely 06111100

SCR-MCH 10-24X.62 P/HD

$1.49

$

In Stock, Qty 10

0

39

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
