994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Deck Assembly-48-Inch Decks Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

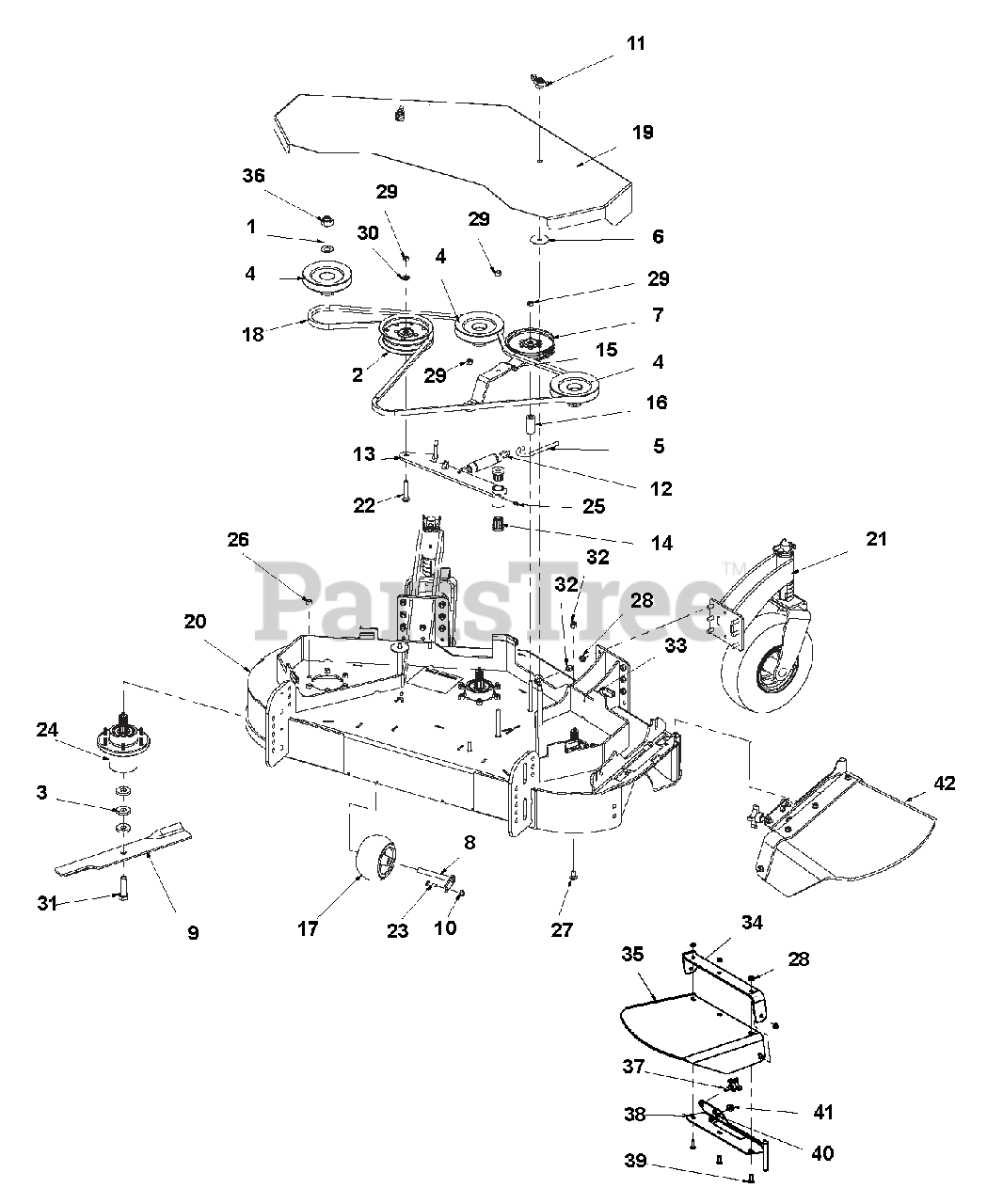

Deck Assembly-48-Inch Decks Parts Diagram

  • Title

1

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.99

$

In Stock, Qty 8

0

2

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$86.99

$

In Stock, Qty 9

0

3

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.99

$

In Stock, only 4 left!

0

4

Gravely 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

5

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$6.99

$

In Stock, only 2 left!

0

6

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

7

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$43.99

$

In Stock, Qty 20+

0

8

Gravely GDA10103

PIVOT, RETAINER WELD

$59.99

$

In Stock, Qty 5

0

9

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$30.99

$

In Stock, Qty 5

0

10

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.99

$

Usually ships in 4-12 days

0

11

Gravely M119352

KNOB, 3/8-16 INSERT

$4.99

$

In Stock, only 4 left!

0

12

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely TCA15346

ARM, IDLER *

$152.99

$

In Stock, only 3 left!

0

14

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$19.99

$

In Stock, only 4 left!

0

15

Gravely TCU18344

STRAP, IDLER PULLEY

$43.99

$

Usually ships in 4-12 days

0

16

Gravely TCU18742

SPACER

$20.99

$

Usually ships in 4-12 days

0

17

Gravely TCU18744

WHEEL, GAGE

$15.99

$

In Stock, Qty 10

0

18

Gravely TCU18847

BELT, HB 98.6 EL AMD

$118.99

$

Usually ships in 4-12 days

0

19

Gravely 03729953

SHIELD, DECK 48 GRAVLY PAINTED

$

$

Not available

20

Gravely 50532001

ASSY, 48" FX DECK W/DECALS

$

$

Not available

21

Assembly, Front Wheel Caster (see page 28 for parts)

Note: (see page 28 for parts)

$

$

Not available

22

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$5.49

$

In Stock, Qty 8

0

23

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.99

$

In Stock, only 3 left!

0

24

Gravely 00200262

ASSY, SPINDLE S/O

$307.99

$

Usually ships in 4-12 days

0

25

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

26

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

28

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06508000

NUT-LK-FLG .375-16 PL

$5.49

$

Usually ships in 4-12 days

0

30

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.99

$

In Stock, Qty 7

0

32

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

33

Gravely 00999538

TRIM, LOCK 1/4" EDGE

Note: (1 foot, cut as needed)

$6.99

$

Usually ships in 4-12 days

0

34

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$67.99

$

Usually ships in 4-12 days

0

35

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$72.99

$

Usually ships in 4-12 days

0

36

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0

37

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$11.99

$

In Stock, only 4 left!

0

38

Gravely 04092453

WLDT, DISCHARGE 48 FLOAT STAND

$

$

Not available

39

Gravely 00963020

BOLT, 3/8-16X1.00 CRG 5 Y
(Superseded to 06223600)

$3.49

$

In Stock, Qty 20+

0

40

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 3 left!

0

42

Gravely 56155053

ASSY, DISCHARGE SHIELD

Note: (Includes Items 28, 34, 35 and 37-41)

$213.99

$

In Stock, only 1 left!

0
