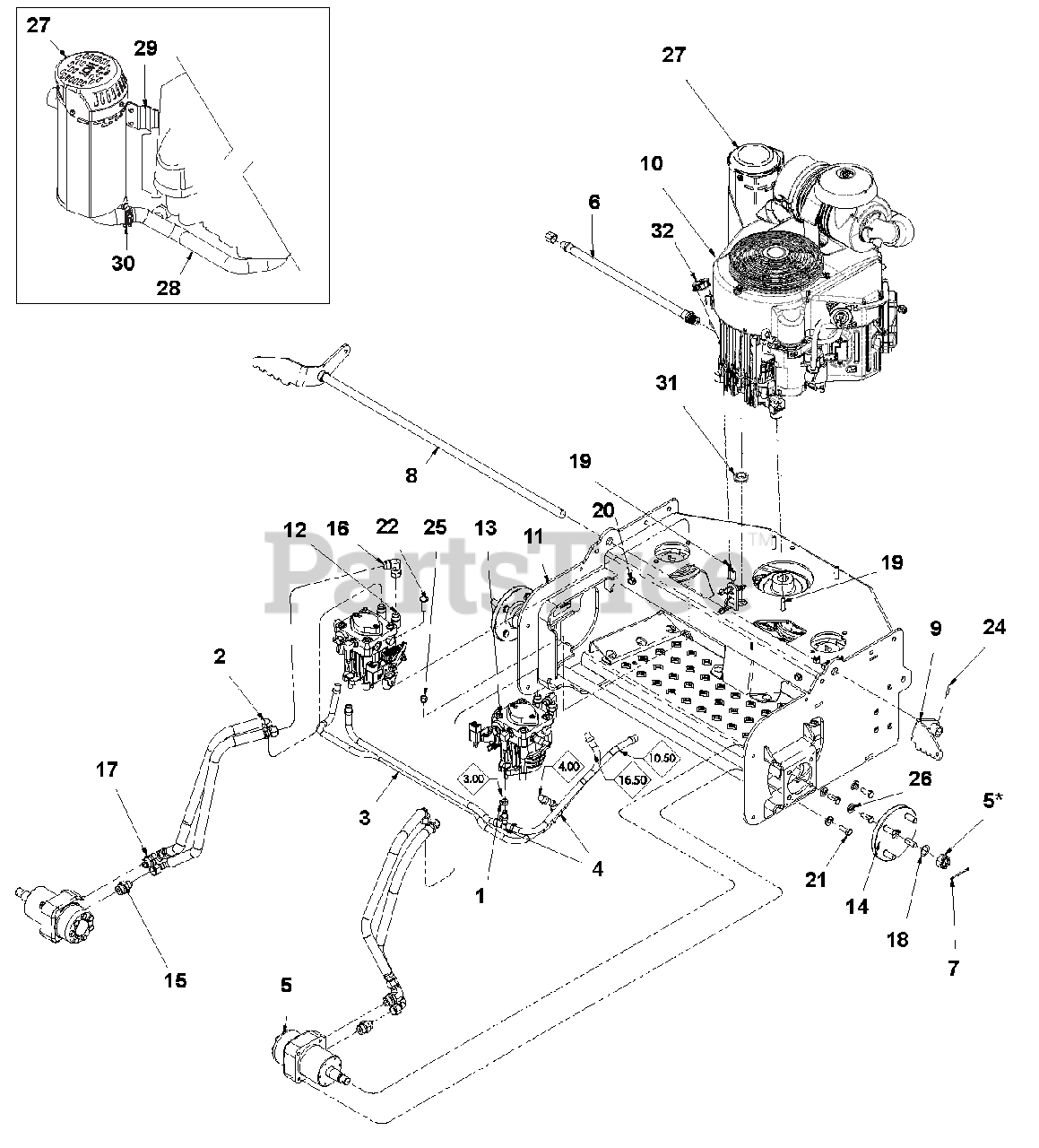

994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, Qty 14

0

2

Gravely D18394

HOSE ASSEMBLY

$93.99

$

In Stock, only 1 left!

0

3

Gravely DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$6.49

$

Usually ships in 4-12 days

0

4

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

5

Gravely 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N.m (120 lbf-ft))

$959.99

$

Usually ships in 4-12 days

0

6

Gravely 04271700

DRAIN, M20 OIL

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 06714100

PIN-CTR .125X2.00 YWZC

$

$

Not available

8

Gravely 00200612

WLDT, BRAKE SHAFT

$

$

Not available

9

Gravely 00200616

WLDT, RH BRAKE ARM

$

$

Not available

10

Gravely 08200720

ENGINE, KAWASAKI FX600

$

$

Not available

11

Gravely 04308700

WLDT, DECK FRAME W/DCALS GRVLY

$

$

Not available

12

Gravely 00200721

ASSEMBLY, HYD PUMP

Note: (See Pump Components on page 16.)

$

$

Not available

13

Gravely 00200722

ASSEMBLY, HYD PUMP

Note: (See Pump Components on page 16.)

$1612.99

$

Usually ships in 4-12 days

0

14

Gravely 00200954

ASSY, REAR WHEEL HUB

$

$

Not available

15

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 0023104

Fitting, ADP MJIC-FSWJIC 6500-08-08

$

$

Not available

17

Gravely 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

18

Gravely 05500132

BUSHING, MACH .750X1.25X.048 Y
(Superseded to 00150052)

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

$2.99

$

In Stock, Qty 19

0

20

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

25

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 04311710

MUFFLER, KAWASAKI FX OFS STD

$

$

Not available

28

Gravely 04311720

MANIFOLD, EXH KAWASAKI FX STD

$

$

Not available

29

Gravely 04311730

BRACKET, MUFFLER KAWI OFS STD

$

$

Not available

30

Gravely 04311740

CLAMP, MUFFLER KAWI FX STD

$

$

Not available

31

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0

32

Gravely TCA15122

CAP, FILLER, OIL

$27.99

$

In Stock, only 2 left!

0
