994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Foot Plate Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

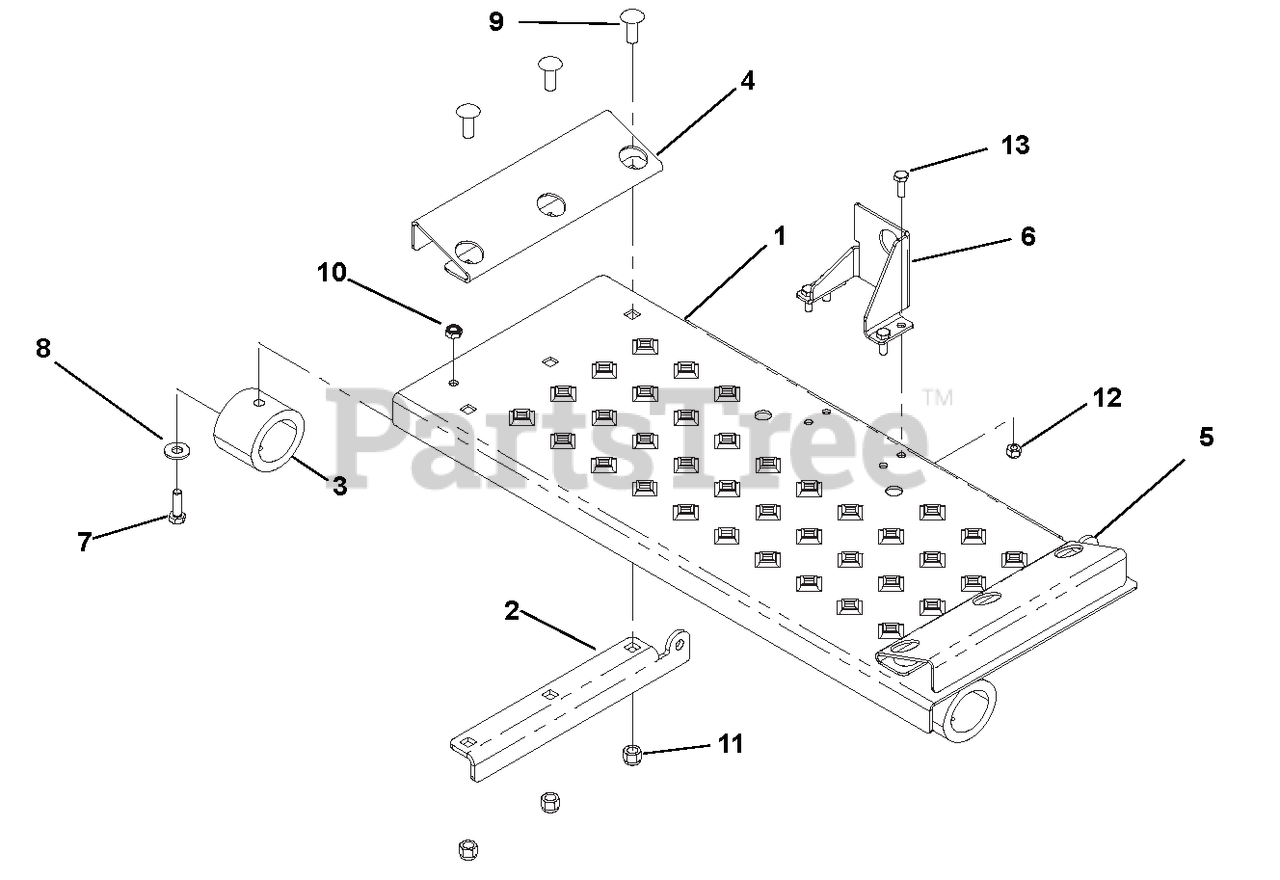

Foot Plate Parts Diagram

  • Title

1

Gravely 00200618

PLATE, PLATFORM

$

$

Not available

2

Gravely 00200619

PLATE, PLATFORM TAB

$

$

Not available

3

Gravely 00200655

BUMPER, MINER GBR-6

$

$

Not available

4

Gravely 00200691

WEDGE, PLATFORM

$

$

Not available

5

Gravely 00200693

PLATE, PLATFORM TAB LH

$

$

Not available

6

Gravely 00200767

ANCHOR, OPC

$

$

Not available

7

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

11

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0
