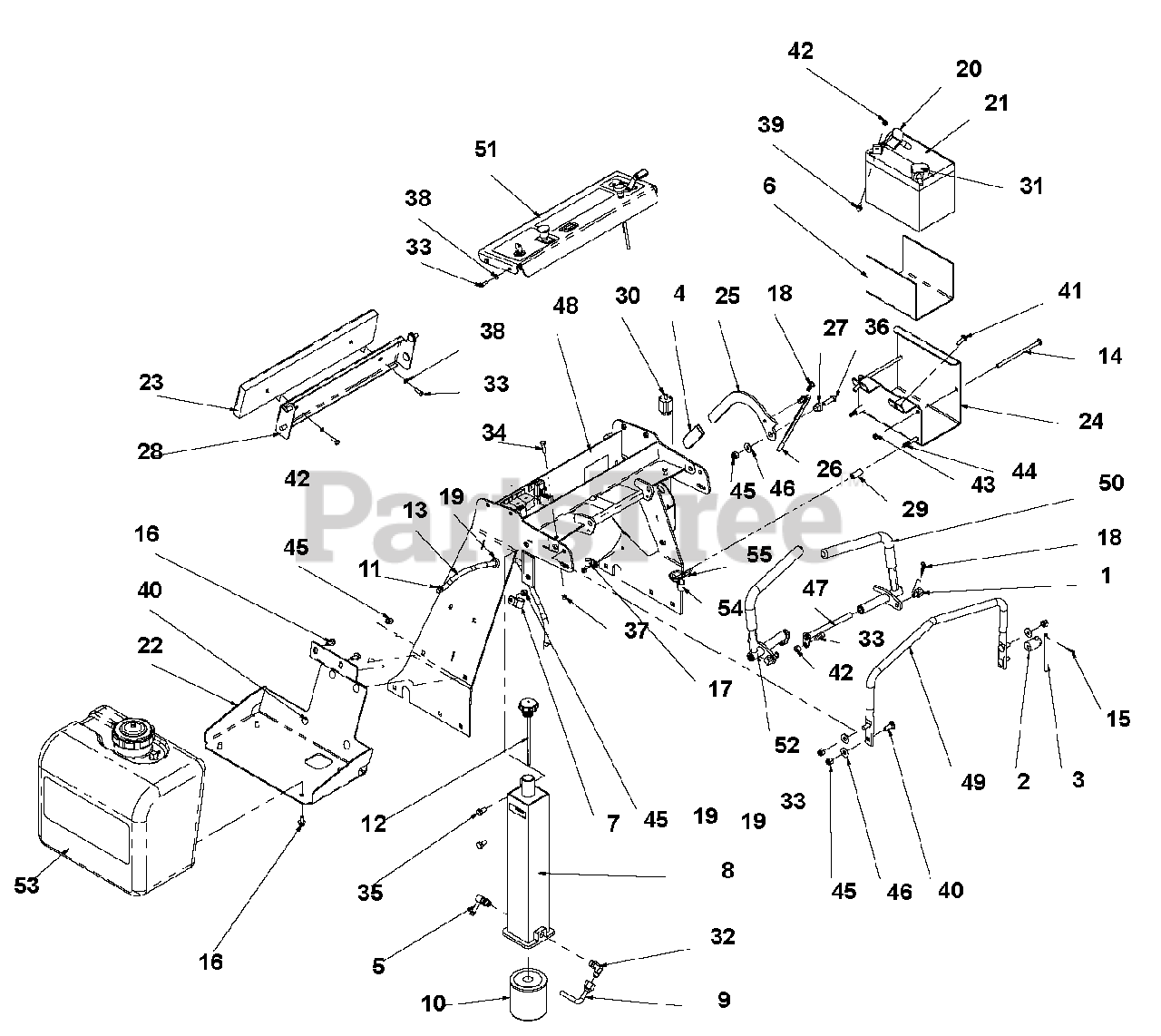

994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely D13028

SWIVEL ADJUSTER-THREAD SIZE 5/

$85.99

$

Usually ships in 4-12 days

0

2

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

3

Gravely D13309

LEVER, LOCK Y

$

$

Not available

4

Gravely TCU19034

GRIP
(Superseded to 03826900)

$4.99

$

In Stock, Qty 17

0

5

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

6

Gravely D28159

STRIP, RUBBER

$

$

Not available

7

Gravely E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

8

Gravely TCA15373

RESERVOIR, HYDRAULIC

$

$

Not available

9

Gravely GDA10066

ELBOW FITTING

$

$

Not available

10

Gravely GDA10137

FILTER, OIL

$29.99

$

In Stock, Qty 5

0

11

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

12

Gravely TCA15122

CAP, FILLER, OIL

$27.99

$

In Stock, only 2 left!

0

13

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05900107

CAP SCREW, 5/16" X 6"
(Superseded to 06200128)

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05901314

BLT-HEX-FLANGED M8 X 16

$

$

Not available

17

Gravely 00111886

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

18

Gravely 06703600

PIN-HAIR INT .09X1.65 PL
(Superseded to 00121080)

$2.99

$

In Stock, Qty 8

0

19

Gravely 00180266

GROMMET, ROUND RUBBER .625X.19

$

$

Not available

20

Gravely 00181148

CABLE, BATTERY STARTER 48"

$

$

Not available

21

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

22

Gravely 00200614

LEVER, BRAKE

$

$

Not available

23

Gravely 00200606

PAD, THIGH

$

$

Not available

24

Gravely 00200789

TRAY, BATTERY W/DECAL GRAVELY

$

$

Not available

25

Gravely 00200614

LEVER, BRAKE

$

$

Not available

26

Gravely 00200615

LINK, BRAKE Y

$32.99

$

Usually ships in 4-12 days

0

27

Gravely 00200671

BUSHING, BRAKE PIVOT Y

$

$

Not available

28

Gravely 00200690

WLDT, THIGH PAD BRACKET

$65.99

$

Usually ships in 4-12 days

0

29

Gravely 00200692

BUSHING, .364X.540X1.250 Y

$

$

Not available

30

Gravely 00200705

SWITCH, NO-NO-NC GREY PLUNGER

$17.99

$

Usually ships in 4-12 days

0

31

Gravely 03387900

CABLE, BATTERY GROUND 25"

$41.99

$

Usually ships in 4-12 days

0

32

Gravely 00313270

FTG, 90 9/16 MOR X 9/16 MJIC

$9.99

$

Usually ships in 4-12 days

0

33

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

34

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

35

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

36

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

37

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

38

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

39

Gravely AA963001

BOLT, 1/4-20X.625 WSH Y

$

$

Not available

40

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

44

Gravely 00967185

BOLT, 5/16-18X2.00 CRG 5 Y
(Superseded to 06200127)

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

46

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

48

Gravely 03740700

GRAVELY CONSOLE W/DECALS

$

$

Not available

49

Gravely 03730751

SUPPORT, HANDLE PAINTED

$

$

Not available

50

Gravely 03730900

LH CONTROL LEVER W/GRIP

$

$

Not available

51

Gravely 03731501

CONTROL PANEL GRAVELY W/DECALS

Note: (switches sold separately)

$

$

Not available

52

Gravely 03731000

RH CONTROL LEVER W/GRIP

$246.99

$

Usually ships in 4-12 days

0

53

Gravely 04302700

TANK ASSY,EPA FUEL,GRAVELY

$

$

Not available

54

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

55

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0
