994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Hydraulic Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

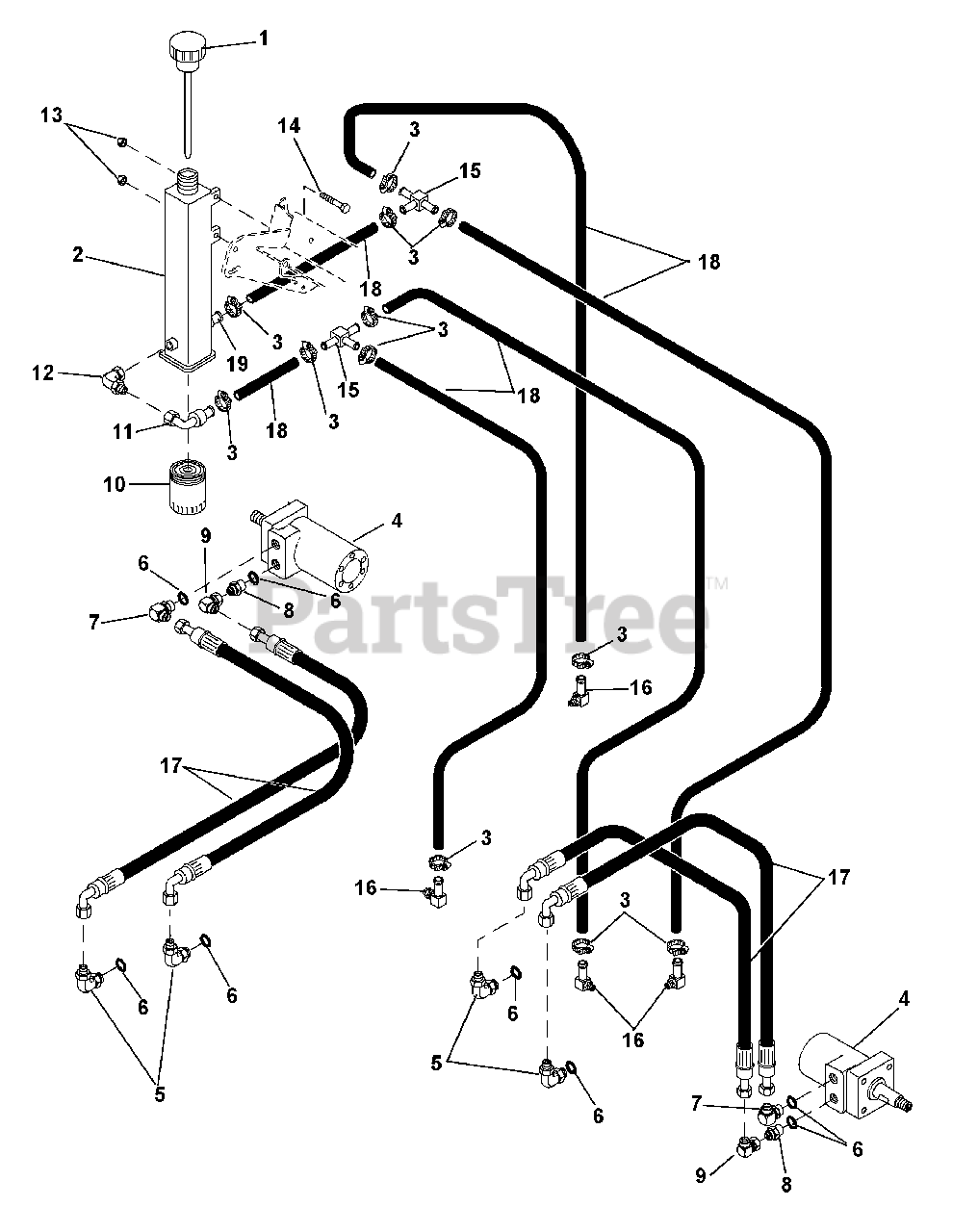

Hydraulic Components Parts Diagram

  • Title

1

Gravely TCA15122

CAP, FILLER, OIL

$29.99

$

In Stock, only 2 left!

0

2

Gravely TCA15373

RESERVOIR, HYDRAULIC

$

$

Not available

3

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$4.99

$

In Stock, Qty 14

0

4

Gravely TCA15078

MOTOR, WHEEL HGM-12P-7172

$

$

Not available

5

Gravely D14196

FTG, 90 ADP JIC-ORB 6801-08-08

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 05600007

O-RING, INCLUDED WITH FITTING

$

$

Not available

7

Gravely 00231647

FTG, 7/8ORB X 3/4JIC X 90

$

$

Not available

8

Gravely 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

9

Gravely 00231046

ADAPTER, 3/4 FESW X 3/4MJICX90

$

$

Not available

10

Gravely GDA10137

FILTER, OIL

$30.99

$

In Stock, only 4 left!

0

11

Gravely GDA10066

ELBOW FITTING

$

$

Not available

12

Gravely 00313270

FTG, 90 9/16 MOR X 9/16 MJIC

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 12

0

15

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

16

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

17

Gravely D18394

HOSE ASSEMBLY

$97.99

$

In Stock, only 1 left!

0

18

Gravely DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$6.99

$

Usually ships in 4-12 days

0

19

Gravely GDA10065

ADAPTER, STRAIGHT FITTING

$

$

Not available

Gravely M78480

CABLE TIE, .19 X 10.0

$

$

Not available
