994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Wheel And Strut Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

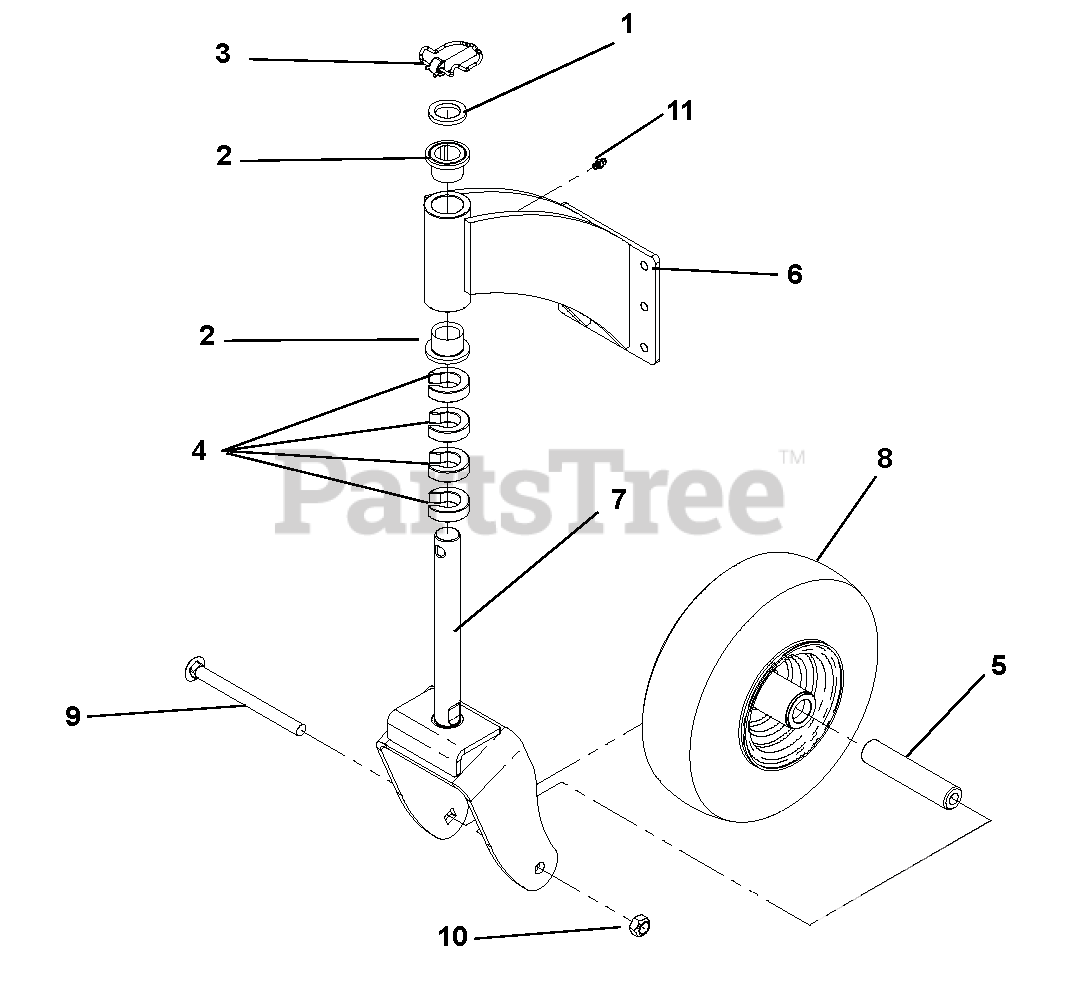

Wheel And Strut Assembly Parts Diagram

  • Title

1

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

2

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

3

Gravely 00161397

PIN, KLIK .438X2.00

$9.99

$

In Stock, only 2 left!

0

4

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

Note: (48-inch Decks)

$5.99

$

In Stock, only 2 left!

0

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

Note: (52-inch Decks)

$5.99

$

In Stock, only 2 left!

0

5

Gravely 00191049

TUBE, RD 1.00X.500X4.76

$52.99

$

In Stock, only 4 left!

0

6

Gravely 00201306

WLDT, CASTER MOUNT BRKT GRAVLY

Note: (48-inch Decks)

$

$

Not available

Gravely 00200175

WLDT, CASTER MOUNT GRAVELY 52

Note: (52-inch Decks)

$

$

Not available

7

Gravely 00201309

WLDT, FR WHEEL FORK GRAVELY

Note: (48-inch Decks)

$210.99

$

Usually ships in 4-12 days

0

Gravely 00200176

WLDT, FR WHEEL FORK GRAVELY 52

Note: (52-inch Decks)

$219.99

$

Usually ships in 4-12 days

0

8

Gravely 00200778

WHEEL, FRONT 11X4X5

$116.99

$

In Stock, only 1 left!

0

9

Gravely 06207600

BLT-RDHDSQNK .50-13X6.00 PL
(Superseded to 06223400)

$10.99

$

In Stock, Qty 10

0

10

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

11

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0
