994108 (2052 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Deck Assembly-52-Inch Decks Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki

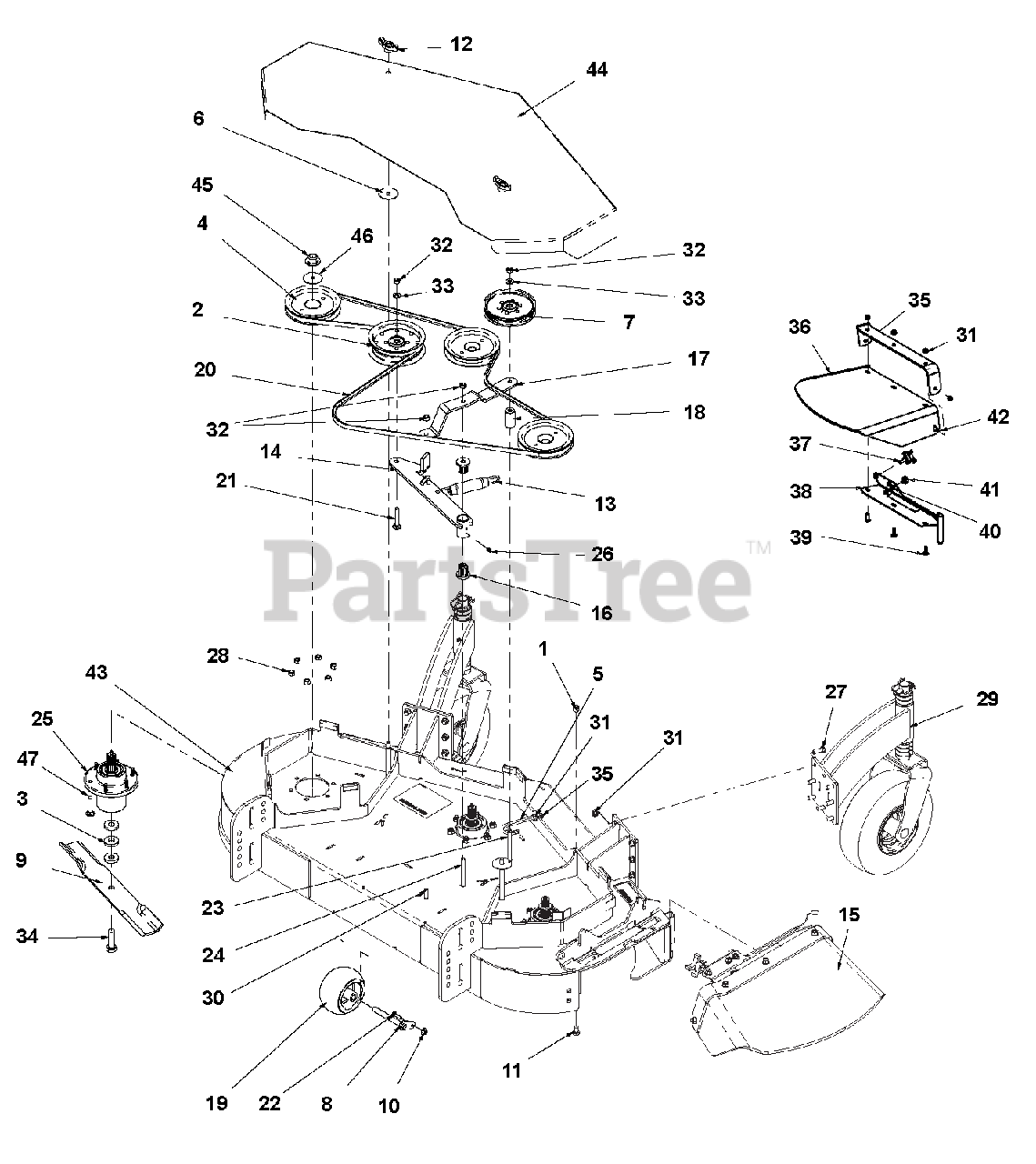

Deck Assembly-52-Inch Decks Parts Diagram

  • Title

1

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

1

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

2

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

2

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

3

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

3

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

4

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

4

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

5

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$6.49

$

In Stock, only 2 left!

0

5

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$6.49

$

In Stock, only 2 left!

0

6

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

6

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

7

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

7

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

8

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

8

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

9

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

9

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

10

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

11

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

12

Gravely M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

12

Gravely M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

13

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely TCA15346

ARM, IDLER *

$145.99

$

In Stock, only 3 left!

0

14

Gravely TCA15346

ARM, IDLER *

$145.99

$

In Stock, only 3 left!

0

15

Gravely 56155053

ASSY, DISCHARGE SHIELD

$203.99

$

In Stock, only 1 left!

0

15

Gravely 56155053

ASSY, DISCHARGE SHIELD

$203.99

$

In Stock, only 1 left!

0

16

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

16

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

17

Gravely TCU18344

STRAP, IDLER PULLEY

$40.99

$

Usually ships in 4-12 days

0

17

Gravely TCU18344

STRAP, IDLER PULLEY

$40.99

$

Usually ships in 4-12 days

0

18

Gravely TCU18742

SPACER

$19.99

$

Usually ships in 4-12 days

0

18

Gravely TCU18742

SPACER

$19.99

$

Usually ships in 4-12 days

0

19

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, Qty 14

0

19

Gravely TCU18744

WHEEL, GAGE

$14.99

$

In Stock, Qty 14

0

20

Gravely TCU18848

BELT, HB 109.3 EL AMD

$108.99

$

Usually ships in 4-12 days

0

20

Gravely TCU18848

BELT, HB 109.3 EL AMD

$108.99

$

Usually ships in 4-12 days

0

21

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 11

0

21

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 11

0

22

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

23

Gravely 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

24

Gravely 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

24

Gravely 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

25

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

25

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

26

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

26

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

27

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

28

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

29

Assembly, Wheel & Strut (see page 26 for parts)

Note: (see page 26 for parts)

$

$

Not available

29

Assembly, Wheel & Strut (see page 26 for parts)

Note: (see page 26 for parts)

$

$

Not available

30

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

30

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 06508000

NUT-LK-FLG .375-16 PL

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

34

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

35

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

35

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

36

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

36

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

37

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

37

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

38

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

38

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

39

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

39

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

40

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

41

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

42

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

42

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 03761801

WLDT, 52 GRAVELY DECK W/DECALS

$

$

Not available

43

Gravely 03761801

WLDT, 52 GRAVELY DECK W/DECALS

$

$

Not available

44

Gravely 03761953

WLDT, 52 GRAVELY DECK SHIELD

$

$

Not available

44

Gravely 03761953

WLDT, 52 GRAVELY DECK SHIELD

$

$

Not available

45

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

45

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

46

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

46

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

47

Gravely 05900105

BOLT, 3/8-16 X 1.25 RIB
(Superseded to 00200045)

$7.49

$

Usually ships in 4-12 days

0

47

Gravely 05900105

BOLT, 3/8-16 X 1.25 RIB
(Superseded to 00200045)

$7.49

$

Usually ships in 4-12 days

0
