994109 (2048 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki (SN: 000101 & Above) Mower Deck Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki

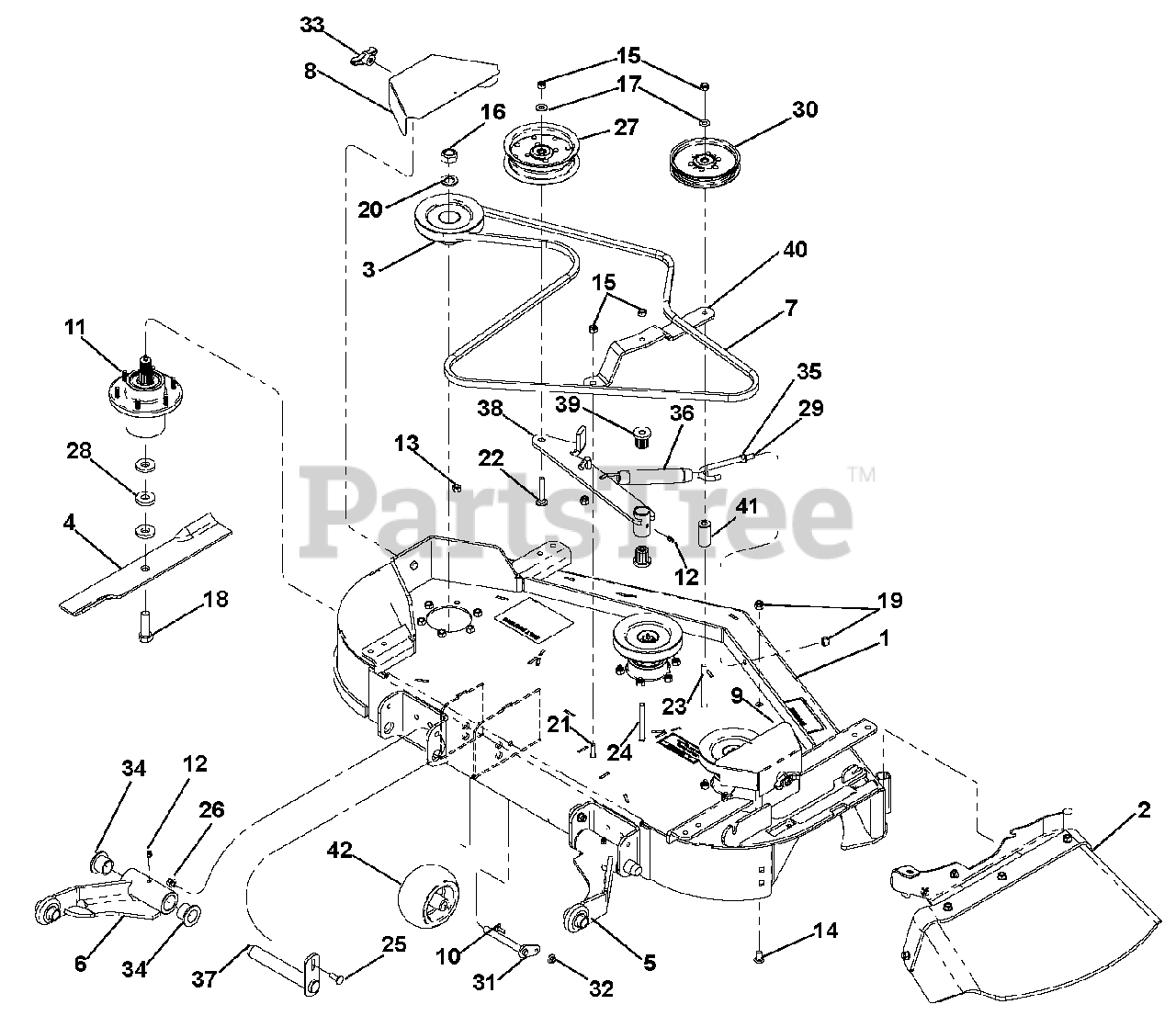

Mower Deck Parts Diagram

  • Title

1

Gravely 56320001

Assembly, 48" Float Deck with Decals (994109)

Note: (994109)

$

$

Not available

Gravely 56323001

Deck, with Decals Gravely 52FL (994110)

Note: (994110)

$

$

Not available

2

Gravely 56320002

Assembly, 48 Flat Discharge Shield (994109)

Note: (994109)

$

$

Not available

Gravely 56155053

Assembly Discharge Shield (994110)

Note: (994110)

$203.99

$

In Stock, only 1 left!

0

3

Gravely 03828700

Pulley, Spline Spindle Offset (994109)

Note: (994109)

$

$

Not available

Gravely 03399702

Pulley, Spline Spindle Offset (994110)

Note: (994110)

$76.99

$

In Stock, only 4 left!

0

4

Gravely GDU10230

Blade, 16.50 x .80 Lift (994109)

Note: (994109)

$29.99

$

In Stock, Qty 10

0

Gravely GDU10231

Blade, 18.00 x 80 Lift (994110)

Note: (994110)

$31.99

$

In Stock, Qty 16

0

5

Gravely TCA14876

Arm Weldment, RH 48" (994109)

Note: (994109)

$

$

Not available

Gravely TCA14878

Arm Weldment, RH 52" (994110)

Note: (994110)

$

$

Not available

6

Gravely TCA14877

Arm Weldment, LH 48" (994109)

Note: (994109)

$

$

Not available

Gravely TCA14879

Arm Weldment, LH 52" (994110)

Note: (994110)

$

$

Not available

7

Gravely TCU18847

Belt, HB 98.6 Elbow AMD (994109)

Note: (994109)

$113.99

$

Usually ships in 4-12 days

0

Gravely TCU18848

Belt, HB 109.3 Elbow AMD (994110)

Note: (994110)

$108.99

$

In Stock, only 2 left!

0

8

Gravely 00200203

Left Hand Deck Belt Cover (994109)

Note: (994109)

$103.99

$

Usually ships in 4-12 days

0

Gravely 00200203

Left Hand Deck Belt Cover (994110)

Note: (994110)

$103.99

$

Usually ships in 4-12 days

0

9

Gravely 00200202

Right Hand Deck Belt Cover (994109)

Note: (994109)

$

$

Not available

10

Gravely 06219800

Bolt, Round Head Square Neck .25 - 20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 00200262

Assembly, Spindle S/O

$294.99

$

In Stock, only 1 left!

0

12

Gravely 00959995

Fitting, Lubrication

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00960502

Nut, 3/8-16 Standard Hex Grade 5

$

$

Not available

14

Gravely 06200004

Bolt, Round Head Square Neck .38 - 16 x .75 Grade 5
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 00964022

Locknut, Crown 3/8-16

$

$

Not available

16

Gravely 06500709

Locknut, Crown .75 - 16 Grade 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

17

Gravely 00964501

Washer, Flat .406 x .813 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00967348

Bolt, Hex 5/8-11 x 2.00
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

19

Gravely 00968087

Locknut, Nyloc 3/8-16

$

$

Not available

20

Gravely 03399703

Washer, .75 x 1.3125 x .113
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

21

Gravely 06212000

Bolt, Round Head Square Neck .38 - 16 x 1.00 Grade 5
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 03H1658

Bolt, 3/8-16 x 2.25
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 03H1809

Bolt, Round Head 3/8 x 4 SHTNK

$

$

Not available

24

Gravely 03H1836

Bolt, .38-16 x 3.50

$

$

Not available

25

Gravely 03M7185

Bolt, Right Hand Square Neck, M8 x 1.25

$

$

Not available

26

Gravely 14M7396

Locknut, Nyloc Flange, M8 x 1.25

$

$

Not available

27

Gravely D18032

Pulley, Flat 5.00 x .375 W/ BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 5

0

28

Gravely D18055

Washer, Flat, .630 x 1.50 x .250
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

29

Gravely D23058

J-Bolt, .38-16 x 4.00 (994109)

Note: (994109)

$6.49

$

Usually ships in 4-12 days

0

Gravely 04232735

Bolt, Eye (994110)

Note: (994110)

$

$

Not available

30

Gravely D28050

Pulley, Flat Idler
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

31

Gravely GDA10103

Pivot, Retainer Weldment

$56.99

$

In Stock, Qty 7

0

32

Gravely H122207

Nut, 1/4" Flange Prevailing Tor

$

$

Not available

33

Gravely M119352

Knob, .38-16 Insert

$3.99

$

In Stock, only 4 left!

0

34

Gravely M83541

Bearing, Flanged

$3.99

$

Usually ships in 4-12 days

0

35

Gravely N10215

Locknut, 3/6-16

$

$

Not available

36

Gravely N242189

Spring, External

$10.99

$

Usually ships in 4-12 days

0

37

Gravely TCA13292

Pin, Welded

$

$

Not available

38

Gravely TCA15346

Arm, Idler

$145.99

$

In Stock, only 1 left!

0

39

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$18.99

$

In Stock, only 3 left!

0

40

Gravely TCU18344

Strap, Idler Pulley

$40.99

$

Usually ships in 4-12 days

0

41

Gravely TCU18742

Spacer Assembly

$19.99

$

Usually ships in 4-12 days

0

42

Gravely 03905900

Wheel, Anti Scalp 5 x 3 Center

$13.99

$

In Stock, Qty 20+

0

NS

Gravely A0473700

Spacer, .510 x .625 x 3.25 (Used with part number 03905900)

Note: (Used with part number 03905900)

$

$

Not available
