994109 (2048 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki (SN: 000101 & Above) Mower Deck Lift Linkage Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki

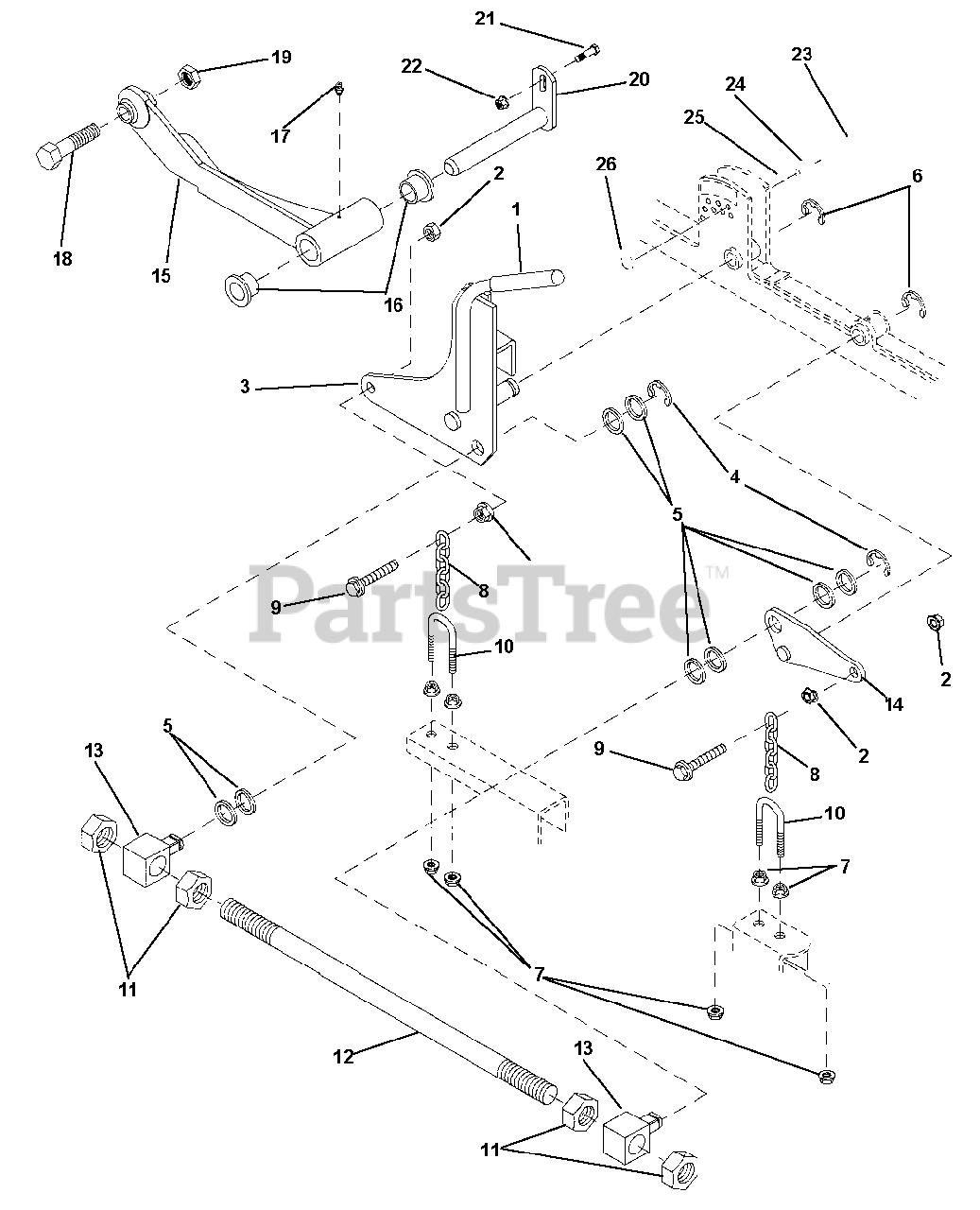

Mower Deck Lift Linkage Parts Diagram

  • Title

1

Gravely D18225

Grip, Control Lever

$

$

Not available

2

Gravely E63526

Locknut, M10 x 1.50 WHIZ GR10

$2.49

$

Usually ships in 4-12 days

0

3

Gravely GDA10010

Weldment, LH Rear Lift Arm

$

$

Not available

Gravely GDA10009

Weldment, RH Rear Lift Arm

$

$

Not available

4

Gravely 05700141

Ring, Retaining

$

$

Not available

5

Gravely 24H1413

Washer, JDS24 .891 x 1.375 x .048-S

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 05700199

Ring, Retainer (E Series)

Note: (E Series)

$

$

Not available

7

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

8

Gravely 00150749

Chain, 6 Links

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 19M8162

Screw, Hex, Flat, JDS121, M10 x 1.5 x 40

$

$

Not available

10

Gravely GDU10048

U-Bolt

$

$

Not available

11

Gravely 14H1058

Nut, Hex .75
(Superseded to 06537600)

$

$

Not available

12

Gravely TCU15817

Rod, Deck Lift Assembly

$

$

Not available

13

Gravely 00200075

Swivel, Deck Lift

$

$

Not available

14

Gravely GDA10008

Lift Arm Weldment, LH Front

$

$

Not available

Gravely GDA10007

Weldment, RH Front Lift Arm

$

$

Not available

15

Gravely TCA14877

Thrust Arm, LH (994109)

Note: (994109)

$

$

Not available

Gravely TCA14876

Thrust Arm, RH (994109)

Note: (994109)

$

$

Not available

Gravely TCA14879

Thrust Arm, LH (994110)

Note: (994110)

$

$

Not available

Gravely TCA14878

Thrust Arm, RH (994110)

Note: (994110)

$

$

Not available

16

Gravely M83541

Bearing, Flanged

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 00959995

Fitting, Lubrication

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 05961700

Bolt, Hex .75-10 x 3.00

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06500031

Crown Locknut, .75-16 GR8

$3.99

$

In Stock, Qty 12

0

20

Gravely TCA13292

Pin, Welded

$116.99

$

Usually ships in 4-12 days

0

21

Gravely 06200135

Bolt, Round Head Square Neck M8-1.25 x 25 8.8

$

$

Not available

22

Gravely 06542300

Nut, Lock, Flange M8-1.25
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06821400

Pin, Clevis .468 x 4.16 x 3.89

$3.99

$

Usually ships in 4-12 days

0

24

Gravely TCU15892

Bushing, H.O.C. Pin Assembly

$

$

Not available

25

Gravely 05700209

Push Nut Retainer, M12 x 21.5

$

$

Not available

26

Gravely M88183

Ring, Locking

$

$

Not available
