994109 (2048 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki (SN: 000101 & Above) Platform Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki

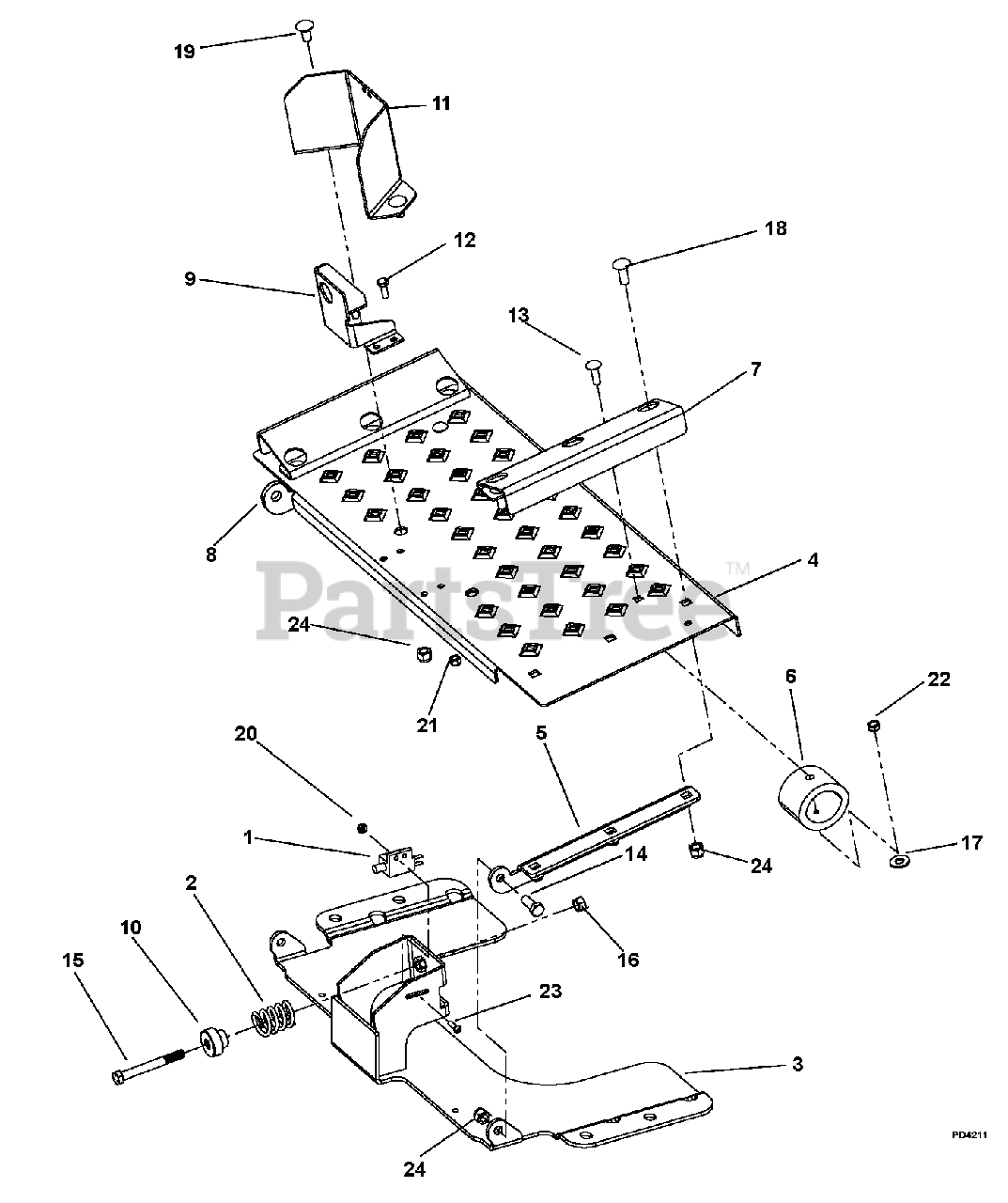

Platform Components Parts Diagram

  • Title

1

Gravely 09251900

Switch-Single Pole w Cover

$23.99

$

Usually ships in 4-12 days

0

2

Gravely D38128

Spring

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 00200299

Weldment, Platform

$

$

Not available

4

Gravely 00200618

Plate, Platform

$

$

Not available

5

Gravely 00200693

Plate, Platform Tab

$

$

Not available

6

Gravely 00200655

Bumper, MINER GBR-6

$

$

Not available

7

Gravely 00200691

Wedge, Platform

$

$

Not available

8

Gravely 00200619

Plate, Platform Tab

$

$

Not available

9

Gravely 00200767

Anchor, Operator Presence Control

$

$

Not available

10

Gravely 00200770

Washer, Spring

$

$

Not available

11

Gravely 00200935

Cover, Operator Presence Control

$

$

Not available

12

Gravely 05946400

Bolt, Hex M12 x 1.75 x 25

$

$

Not available

13

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05900120

Bolt, JDS19-16 UNC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05961100

Bolt, Hex .38-16 x 3.25
(Superseded to 05901817)

$4.99

$

In Stock, Qty 15

0

16

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

17

Gravely 06435700

Washer, Flat .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06212000

Bolt, Round Head Square Neck .31-16 x 1.00
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06223900

Bolt, Round Head Square Neck .31-16 x .75
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

20

Gravely 06537200

Jam Nut, Locking, Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

22

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06111100

Screw, Machine 10-24 x .62 Pan Head

$1.49

$

In Stock, Qty 12

0

24

Gravely 06535800

Nut, Locking, Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
