994110 (2452 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki (SN: 000101 & Above) Fuel Tank and Lines Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki

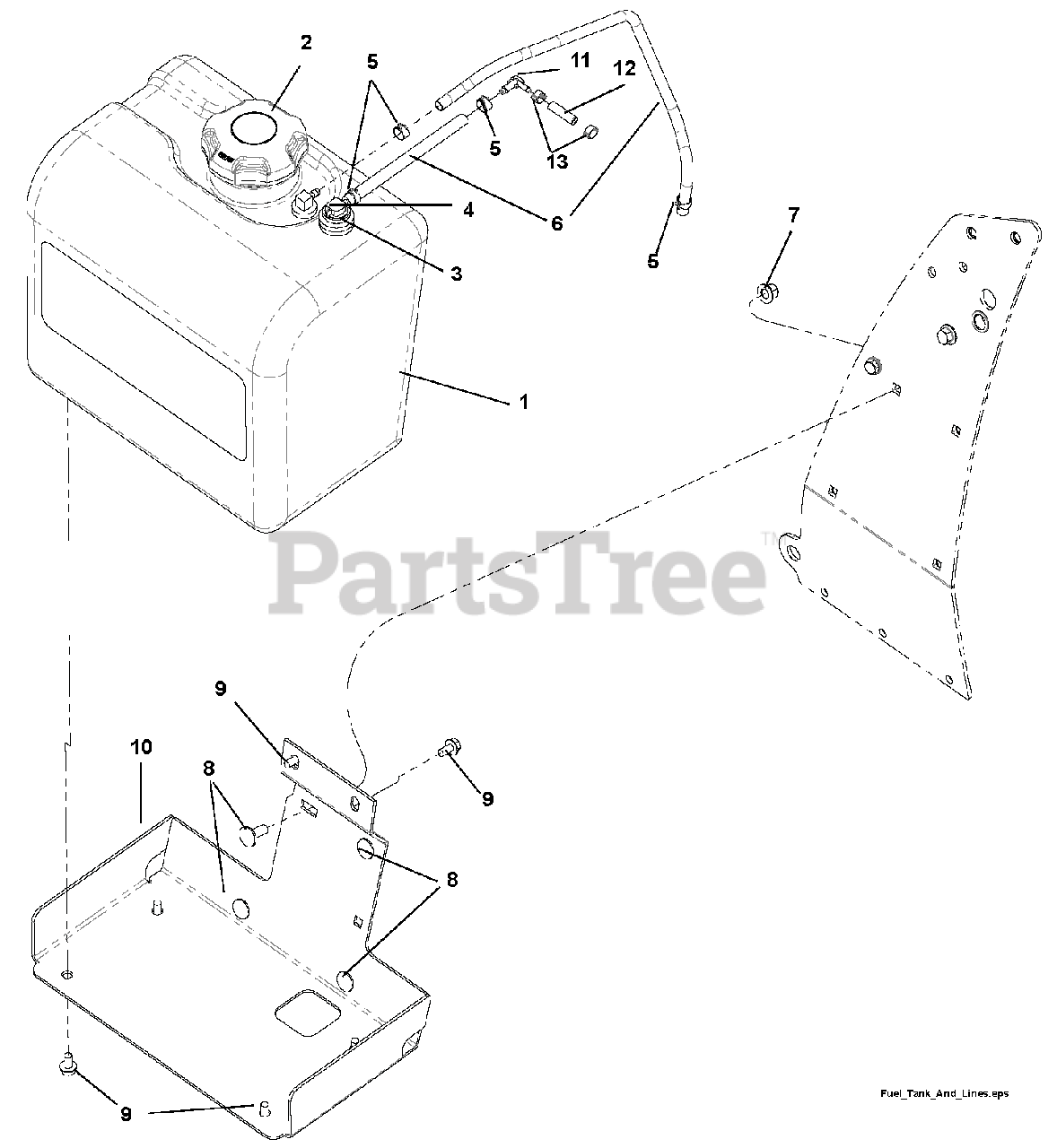

Fuel Tank and Lines Parts Diagram

  • Title

1

Gravely 04328200

ASSM, GRAVELY EPA FUEL TANK

Note: (includes 2, 3 and 4)

$

$

Not available

2

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

$35.99

$

In Stock, Qty 20+

0

3

Gravely 00387300

GROMMET, DAPCO VITON #12240

$9.99

$

In Stock, Qty 20+

0

4

Gravely TCA15048

PICKUP, FUEL

$

$

Not available

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (33.5" and 22")

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06500702

NUT, FL NYLOC M10X1.50 GR10 YW

$

$

Not available

8

Gravely 06200015

CARRIAGE BOLT, M10 X 1.5 X 25

$

$

Not available

9

Gravely 06006104

SCR-HEX-FL M8X1.25X16 10.9

$2.99

$

Usually ships in 4-12 days

0

10

Gravely TCU18489

BRACKET, FUEL TANK MOUNTING

$

$

Not available

11

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (1.5")

$1.49

$

In Stock, Qty 20+

0

13

Gravely 04097715

CLAMP, DBL PINCH 5/16"-7/16"

$3.99

$

Usually ships in 4-12 days

0

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0
