994110 (2452 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki (SN: 000101 & Above) Kawasaki Engine and Related Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki

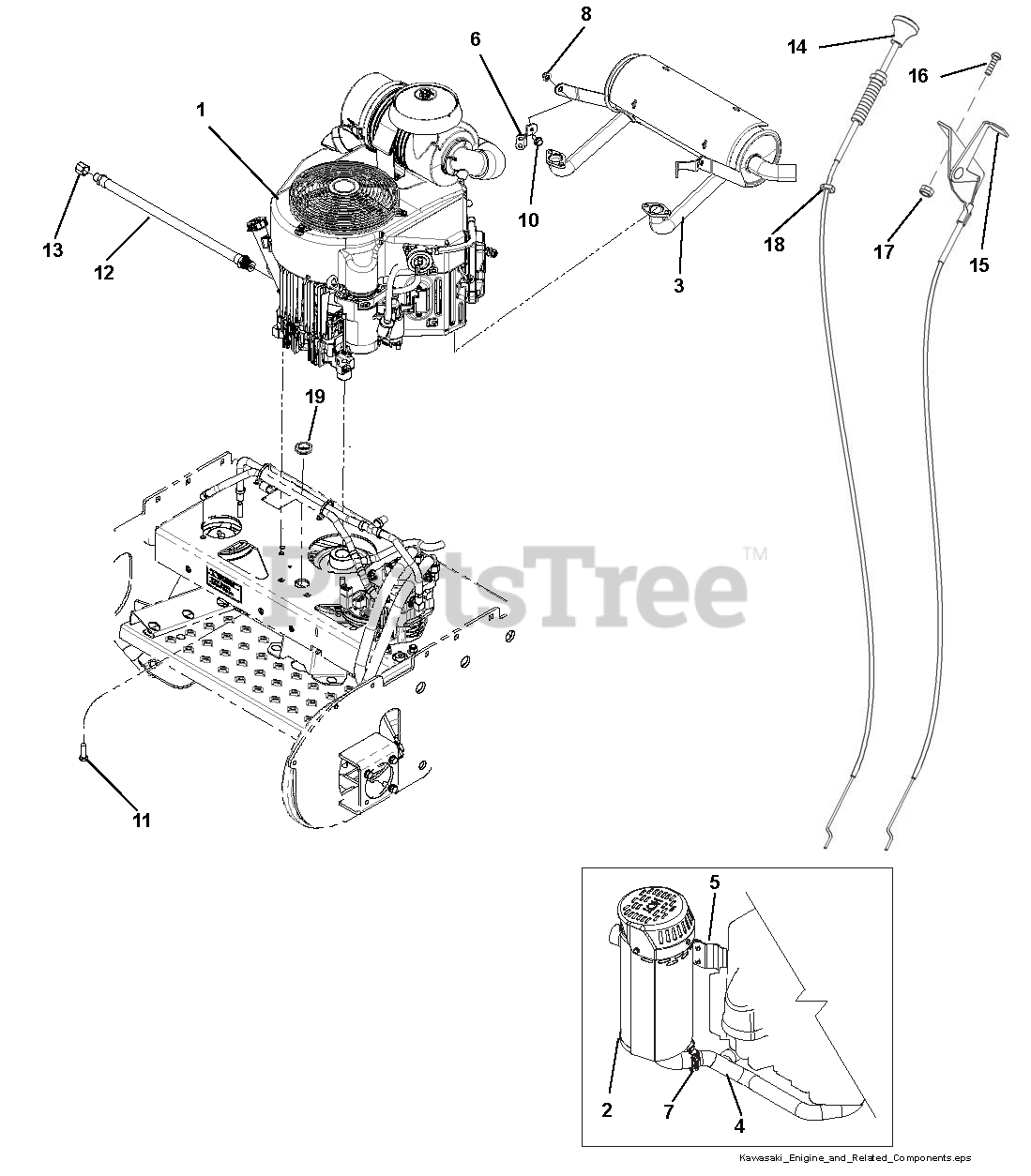

Kawasaki Engine and Related Components Parts Diagram

  • Title

Gravely 08200432

ENGINE, KAWASAKI FX691 (24HP)

Note: (24HP) (994110)

$

$

Not available

1

Gravely 08200526

ENGINE, KAWASAKI FX600 (20HP)

Note: (20HP) (994109)

$

$

Not available

2

Gravely 04311710

MUFFLER, KAWASAKI FX OFS STD

Note: (Vertical) (994109)

$

$

Not available

3

Gravely 04311700

MUFFLER, PRO-STANCE
(Superseded to 04420400)

Note: (Horizontal) (994110)

$298.99

$

Usually ships in 4-12 days

0

4

Gravely 04311720

MANIFOLD, EXH KAWASAKI FX STD

Note: (994109)

$

$

Not available

5

Gravely 04311730

BRACKET, MUFFLER KAWI OFS STD

Note: (994109)

$

$

Not available

6

Gravely 21550000

BRACKET, FX691 EXHAUST
(Superseded to 04430251)

Note: (994110)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 04311740

CLAMP, MUFFLER KAWI FX STD

Note: (994109)

$

$

Not available

8

Gravely H137328

LOCKNUT,M8X1.25,FLANGED ZN

Note: (994110)

$

$

Not available

9

Gravely 04311750

BOLT, MUFFLER BRKT KAWI FX STD

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06006104

SCR-HEX-FL M8X1.25X16 10.9

Note: (994110)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

$2.99

$

In Stock, Qty 19

0

12

Gravely 04271700

DRAIN, M20 OIL

$35.99

$

Usually ships in 4-12 days

0

13

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 06900435

CABLE,CHOKE

$71.99

$

Usually ships in 4-12 days

0

15

Gravely 06900436

CABLE,THROTTLE

$71.99

$

Usually ships in 4-12 days

0

16

Gravely 06006023

SCR-PANHDPHLPS 8-32X.50 YWZC

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 06509100

NUT-KEPS 8-32

$

$

Not available

18

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0
