994110 (2452 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki (SN: 000101 & Above) Mower Deck Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki

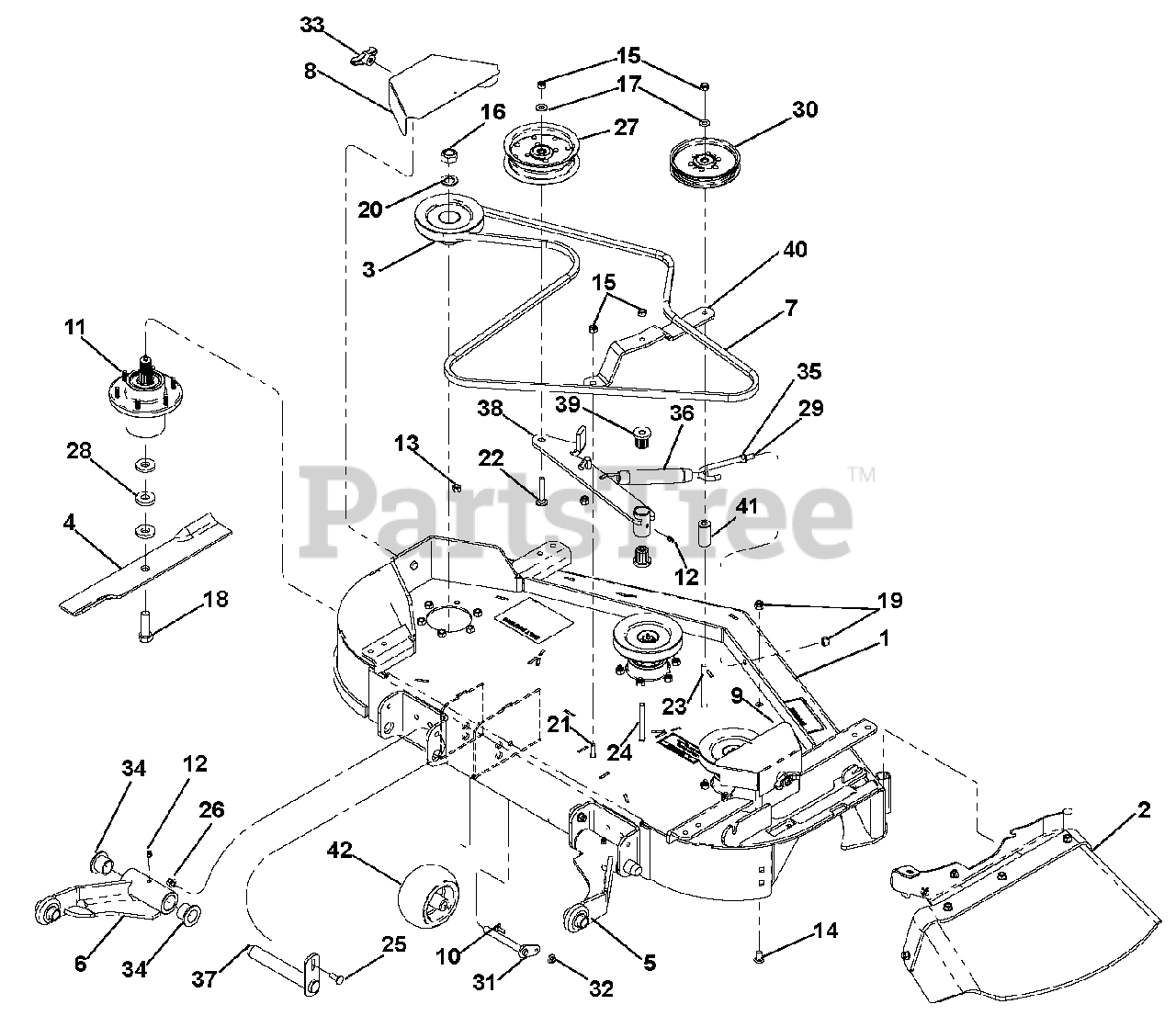

Mower Deck Parts Diagram

  • Title

1

Gravely 56320001

ASSY, 48" FLOAT DECK W/DECALS

Note: (994109)

$

$

Not available

Gravely 56323001

DECK, WITH DECALS GRAVELY 52FL

Note: (994110)

$

$

Not available

2

Gravely 56320002

ASSY, 48 FL DISCHARGE SHIELD

Note: (994109)

$

$

Not available

Gravely 56155053

ASSY, DISCHARGE SHIELD

Note: (994110)

$203.99

$

In Stock, only 1 left!

0

3

Gravely 03828700

PULLEY, SPLINE SPINDLE LSE

Note: (994109)

$

$

Not available

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

Note: (994110)

$76.99

$

In Stock, only 2 left!

0

4

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

Note: (994109)

$29.99

$

In Stock, Qty 5

0

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

Note: (994110)

$31.99

$

In Stock, Qty 20+

0

5

Gravely TCA14876

ARM, THRUST RH (48")

Note: (994109)

$

$

Not available

Gravely TCA14878

ARM, THRUST RH (52")

Note: (994110)

$

$

Not available

6

Gravely TCA14877

ARM, THRUST LH (48")

Note: (994109)

$

$

Not available

Gravely TCA14879

ARM, THRUST LH (52")

Note: (994110)

$

$

Not available

7

Gravely TCU18847

BELT, HB 98.6 EL AMD

Note: (994109)

$113.99

$

In Stock, only 1 left!

0

Gravely TCU18848

BELT, HB 109.3 EL AMD

Note: (994110)

$108.99

$

In Stock, only 2 left!

0

8

Gravely 00200203

COVER, LH 48 &52 DECK BELT

Note: (994109)

$103.99

$

Usually ships in 4-12 days

0

Gravely 00200203

COVER, LH 48 &52 DECK BELT

Note: (994110)

$103.99

$

Usually ships in 4-12 days

0

9

Gravely 00200202

COVER, RH 48" DECK BELT S/O

Note: (994109)

$

$

Not available

10

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

12

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

13

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

14

Gravely 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 12

0

15

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

16

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

17

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

19

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

20

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

21

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$4.99

$

In Stock, Qty 9

0

23

Gravely 03H1809

BOLT, 3/8X4 SHTNK RDHD BOLT A1

$

$

Not available

24

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

25

Gravely 03M7185

BOLT,RH,SQNECK,JDS137,M8X1.25X

$

$

Not available

26

Gravely 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

27

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

28

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

29

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

Note: (994109)

$6.49

$

In Stock, only 2 left!

0

Gravely 04232735

EYE BOLT

Note: (994110)

$

$

Not available

30

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

31

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 5

0

32

Gravely H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

33

Gravely M119352

KNOB, 3/8-16 INSERT

$3.99

$

In Stock, only 4 left!

0

34

Gravely M83541

BEARING, FLANGED

$3.99

$

Usually ships in 4-12 days

0

35

Gravely N10215

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

36

Gravely N242189

SPRING, EXT

$10.99

$

Usually ships in 4-12 days

0

37

Gravely TCA13292

PIN, WELDED

$

$

Not available

38

Gravely TCA15346

ARM, IDLER *

$145.99

$

In Stock, only 3 left!

0

39

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

40

Gravely TCU18344

STRAP, IDLER PULLEY

$40.99

$

Usually ships in 4-12 days

0

41

Gravely TCU18742

SPACER

$19.99

$

Usually ships in 4-12 days

0

42

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

NS

Gravely A0473700

SPACER, .510 X .625 X 3.25

Note: (Used with part number 03905900)

$

$

Not available
