994111 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 030000 & Above) Transmission - Right Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

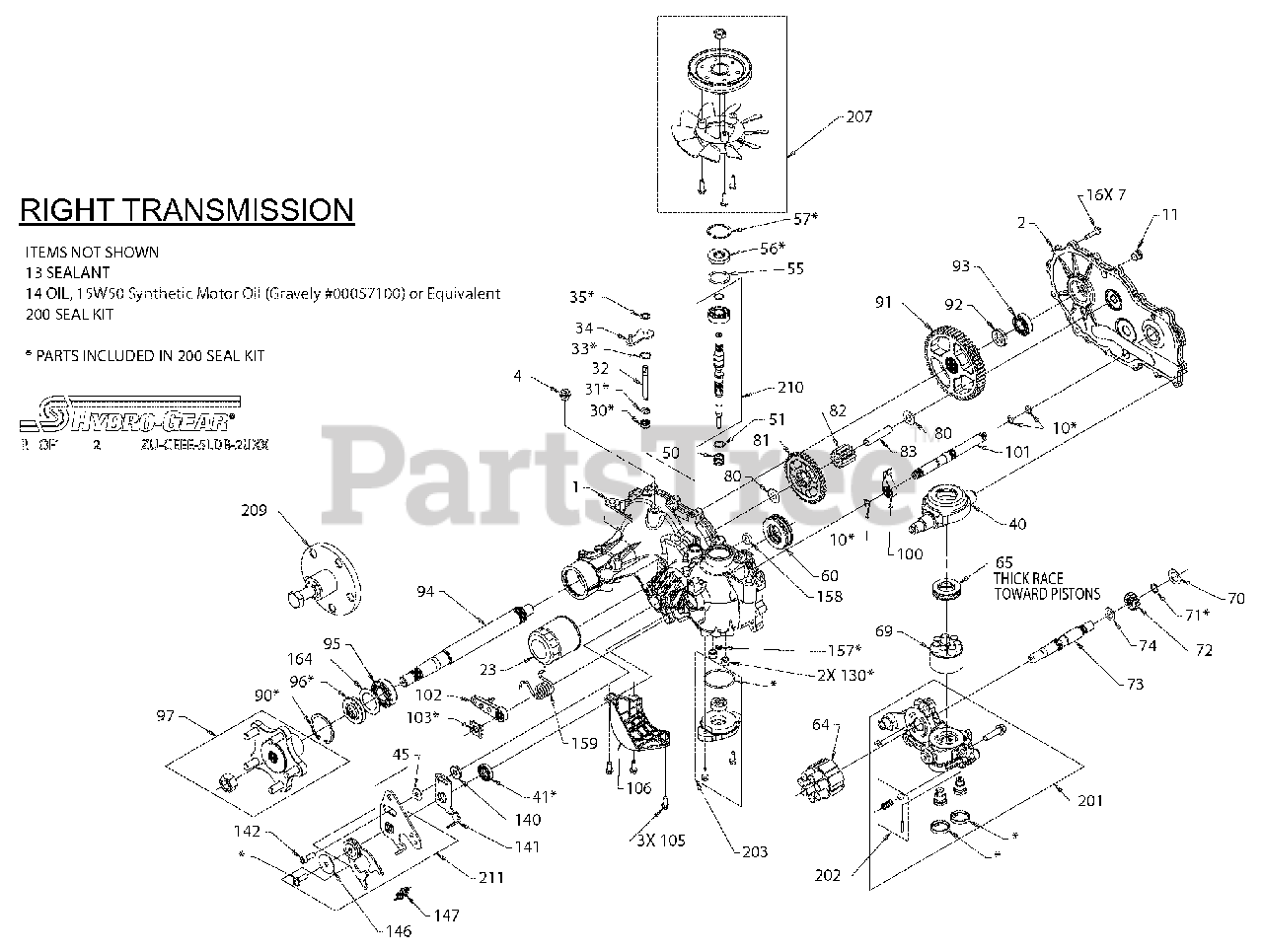

Transmission - Right Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, RH, CH

KIT, HOUSING, MAIN, RH, CH

Note: Hydro-Gear p/n 72025

$

$

Not available

2

KIT, HOUSING, SIDE, RH

KIT, HOUSING, SIDE, RH

Note: Hydro-Gear p/n 71990

$

$

Not available

4

PLUG, 9/16-18 (PLASTIC)

PLUG, 9/16-18 (PLASTIC)

Note: Hydro-Gear p/n 9005200-5600

$

$

Not available

7

Gravely 27105900

HFHCS 1/4-20 X 1.25

Note: Hydro-Gear p/n 53246

$2.99

$

In Stock, only 3 left!

0

10

O-RING-111 .103 X .424

O-RING-111 .103 X .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

PLUG 9/16-18 (METAL)

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT

Note: Hydro-Gear p/n 50928

$171.99

$

In Stock, only 1 left!

0

14

OIL, 15W50 SYNTHETIC MOTOR OIL (GRAVELY #00057100

OIL, 15W50 SYNTHETIC MOTOR OIL (GRAVELY #00057100

$

$

Not available

23

Gravely 21545100

FILTER, OIL

Note: Hydro-Gear p/n 52114

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21543845

SEAL, LIP .375 X .75 X .25

Note: Hydro-Gear p/n 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RET .375 EXTERNAL

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 9

0

32

ROD, BYPASS

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750 INTERNAL

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear p/n 51910

$16.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .375 EXT

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 2 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18 X 32 X 7

Note: Hydro-Gear p/n 51140

$9.99

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER .34 X .88 X .06

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

50

Gravely 08621500

SPRING, BLOCK

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

51

Gravely 08609400

WASHER-FLAT .59 x .79 x .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23 X 1.56 X .04

Note: Hydro-Gear p/n 50951

$6.49

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 X 40 X 7

Note: Hydro-Gear p/n 51161

$15.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 2.06 INT

Note: Hydro-Gear p/n 50329

$7.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

BEARING, THRUST

Note: Hydro-Gear p/n 51462

$32.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

ASS'Y, CYLINDER BLOCK, 16cc

Note: Hydro-Gear p/n 71579

$78.99

$

In Stock, only 2 left!

0

65

Gravely 21548903

BRG, THRUST BALL 30 X 52 X 13

Note: Hydro-Gear p/n 53502

$

$

Not available

69

Gravely 21548905

ASS'Y, BLOCK, 7 PISTON

Note: Hydro-Gear p/n 71971

$87.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63 X 1.00 X .05

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET .62 EXT

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

72

GEAR, 13T, STEEL

GEAR, 13T, STEEL

Note: Hydro-Gear p/n 52342

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .72 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5 X 1.0 X .03

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 46T

GEAR, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

82

GEAR, 11T, STEEL

GEAR, 11T, STEEL

Note: Hydro-Gear p/n 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RET 2.06 INT

Note: Hydro-Gear p/n 50859

$9.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER .75 x 1.32 x .257

SPACER .75 x 1.32 x .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

BEARING, BALL .75 X 40 X 12

Note: Hydro-Gear p/n 53071

$

$

Not available

94

SHAFT, AXLE

SHAFT, AXLE

Note: Hydro-Gear p/n 53528

$

$

Not available

95

Gravely 08614000

BRG, BALL 1.0 x .52 x .15 OPEN 6205M

Note: Hydro-Gear p/n 53656

$25.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

SEAL, LIP TC4 1.0 x 2.06 x .38

Note: Hydro-Gear p/n 53699

$18.99

$

Usually ships in 4-12 days

0

97

Gravely 21544023

KIT, HUB, 5 BOLT

Note: Hydro-Gear p/n 71691

$92.99

$

In Stock, only 2 left!

0

100

PAWL, BRAKE

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

SHAFT, BRAKE

SHAFT, BRAKE

Note: Hydro-Gear p/n 53539

$

$

Not available

102

Gravely 21544037

KIT, HANDLE ACTUATING

Note: Hydro-Gear p/n 71957

$26.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP, RETAINING

Note: Hydro-Gear p/n 52027

$6.49

$

In Stock, only 2 left!

0

105

Gravely 21543759

SCREW, HEX FLANGE

Note: Hydro-Gear p/n 50752

$2.49

$

Usually ships in 4-12 days

0

106

Gravely 21544054

GUARD, FILTER, RH

Note: Hydro-Gear p/n 53655

$15.99

$

Usually ships in 4-12 days

0

130

TUBE, CONNECTING

TUBE, CONNECTING

Note: Hydro-Gear p/n 52157

$

$

Not available

140

Gravely 21543870

SPACER .320 x 1.005 x .179

Note: Hydro-Gear p/n 52527

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51945

$26.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24 x 1.00 (PATCH)

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

Note: Hydro-Gear p/n 51950

$7.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTENSION RTN-34LBS

Note: Hydro-Gear p/n 51833

$15.99

$

Usually ships in 4-12 days

0

156

CAP, AXLE

CAP, AXLE

Note: Hydro-Gear p/n 53088

$

$

Not available

157

Gravely 21544001

SEAL, LIP .281 x .420 x .16

Note: Hydro-Gear p/n 53696

$15.99

$

Usually ships in 4-12 days

0

158

Gravely 21543799

MAGNET, RING

Note: Hydro-Gear p/n 51100

$2.99

$

Usually ships in 4-12 days

0

159

Gravely 21544052

SPRING, TORSION CCW

Note: Hydro-Gear p/n 53429

$11.99

$

Usually ships in 4-12 days

0

164

SPACER, 1.719 x 2.039 x .021

SPACER, 1.719 x 2.039 x .021

Note: Hydro-Gear p/n 53514

$

$

Not available

200

Gravely 21544034

KIT, SEAL

Note: Hydro-Gear p/n 71976

$60.99

$

Usually ships in 4-12 days

0

201

Gravely 21548910

KIT, CENTER SECTION, RH, CHRG

Note: Hydro-Gear p/n 71972

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 71977

$112.99

$

Usually ships in 4-12 days

0

207

KIT, FAN & PULLEY

KIT, FAN & PULLEY

Note: Hydro-Gear p/n 71900

$

$

Not available

209

HUB PULLER, 5 BOLT

HUB PULLER, 5 BOLT

Note: Hydro-Gear p/n 71784

$

$

Not available

210

KIT, INPUT SHAFT

KIT, INPUT SHAFT

Note: Hydro-Gear p/n 71837

$

$

Not available

211

KIT, RTN, BIDIRECTIONAL

KIT, RTN, BIDIRECTIONAL

Note: Hydro-Gear p/n 71588

$

$

Not available
