994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Deck - Belt, Blades And Spindles Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

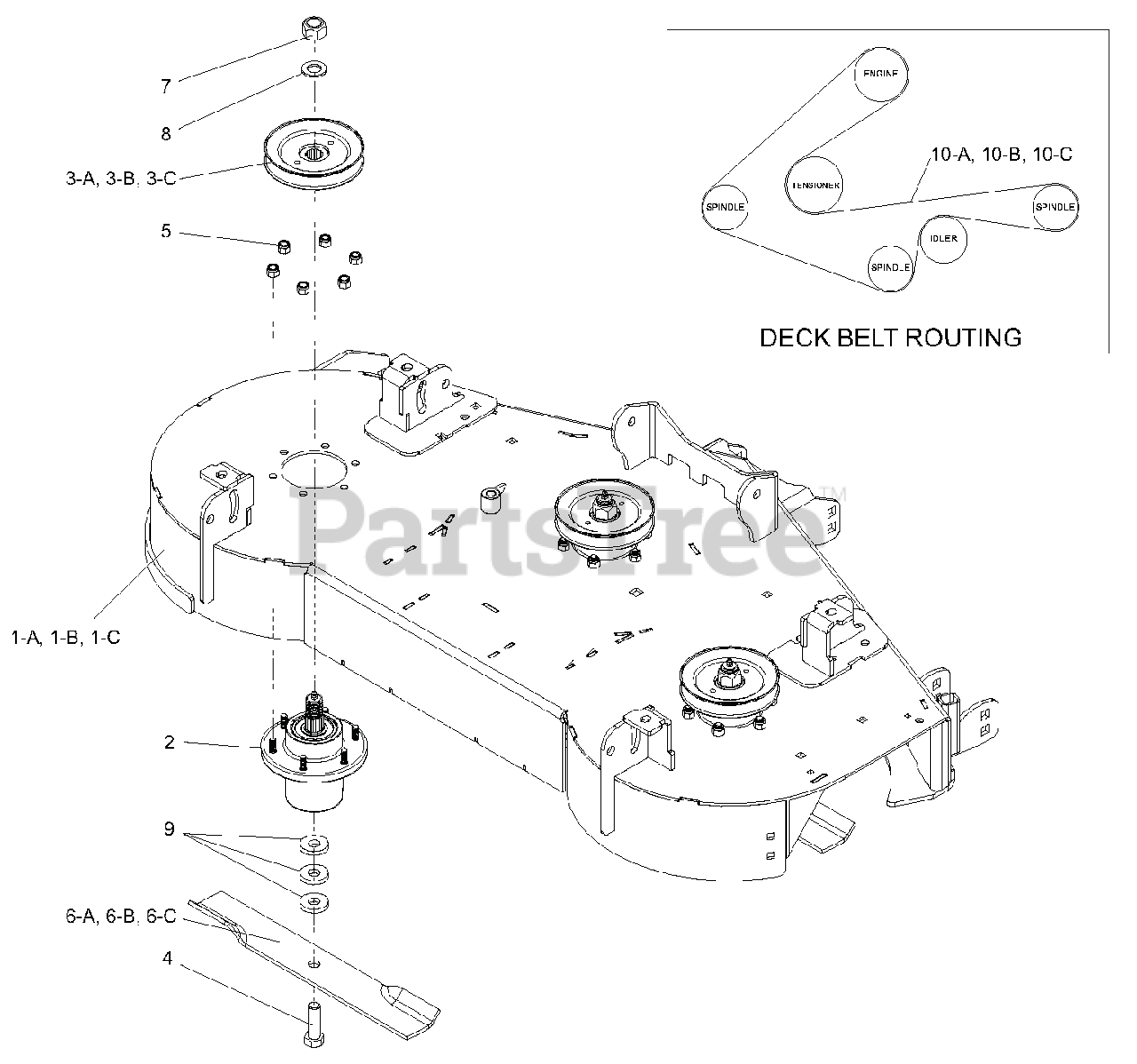

Deck - Belt, Blades And Spindles Parts Diagram

  • Title

1-A

Gravely 50569000

ASSY, DECK W/DECALS 48" STANCE

Note: (994111,117)

$

$

Not available

1-B

Gravely 50569001

ASSY, 52" STANCE DECK W/DECALS

Note: (994112,113,118)

$1494.99

$

Usually ships in 4-12 days

0

1-C

Gravely 50569100

ASSY, 61" DECK WLDMT W/DECALS

Note: (994114,115)

$

$

Not available

2

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$294.99

$

Usually ships in 4-12 days

0

3-A

Gravely 07337400

PULLEY, SPINDLE .76 HUB
(Superseded to 59411100)

Note: (994111,117)

$93.99

$

In Stock, only 2 left!

0

3-B

Gravely 07337500

PULLEY, SPINDLE 5.75 OD .76 HB
(Superseded to 58875700)

Note: (994112,113,118)

$96.99

$

In Stock, only 1 left!

0

3-C

Gravely 07338200

PULLEY, SPINDLE 6.75 OD .76 HB
(Superseded to 59411400)

Note: (994114,115)

$75.99

$

In Stock, only 1 left!

0

4

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 10

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6-A

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

Note: (994111,117)

$29.99

$

In Stock, Qty 8

0

6-B

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

Note: (994112,113,118)

$31.99

$

In Stock, Qty 20+

0

6-C

Gravely GDU10232

BLADE, 21.000 X .80 LIFT

Note: (994114,115)

$31.99

$

In Stock, Qty 7

0

7

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

8

Gravely 06425600

WSHR-FL-STL 1.0X1.50X.25

$6.49

$

In Stock, Qty 10

0

9

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 14

0

10-A

Gravely 07200624

V-BELT 5L-WRAPPED

Note: (994111,117)

$132.99

$

In Stock, only 2 left!

0

10-B

Gravely 07200621

V-BELT, B-WRAPPED
(Superseded to 07200735)

Note: (994112,113,118)

$93.99

$

In Stock, Qty 5

0

10-C

Gravely 07200632

V-BELT, 5L-WRAPPED

Note: (994114,115)

$113.99

$

In Stock, only 1 left!

0
