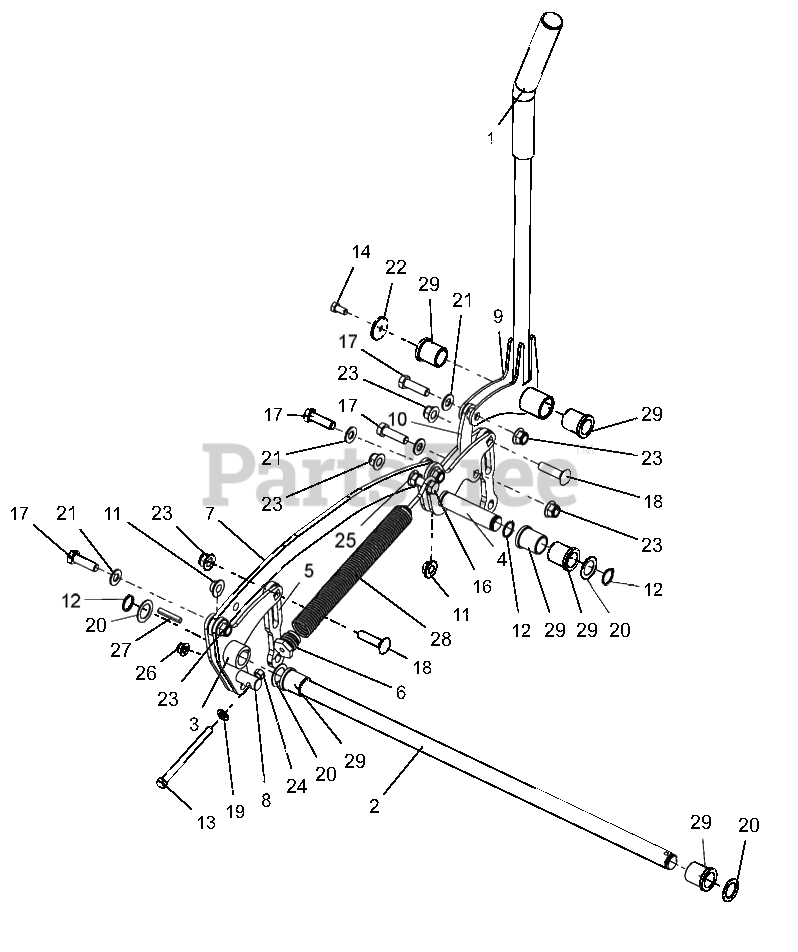

994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Deck Lift - Right Arm And Lever Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

Deck Lift - Right Arm And Lever Parts Diagram

  • Title

1

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$16.99

$

Usually ships in 4-12 days

0

2

Gravely 04243600

SHAFT, PT100 FRONT MOWER LIFT

$162.99

$

Usually ships in 4-12 days

0

3

Gravely 04372200

WLDMT, DECK LIFT PROSTANCE
(Superseded to 59401400)

$387.99

$

Usually ships in 4-12 days

0

4

Gravely 04372400

WLDMT,DECK LIFT PROSTANCE

$118.99

$

Usually ships in 4-12 days

0

5

Gravely 04373500

LINK, DECK LIFT

$29.99

$

Usually ships in 4-12 days

0

6

Gravely 04374200

PLUG, SPRING

$80.99

$

In Stock, only 2 left!

0

7

Gravely 04415451

ARM, DECK LIFT

$64.99

$

Usually ships in 4-12 days

0

8

Gravely 04420300

TRUNION, DECK LIFT

$104.99

$

Usually ships in 4-12 days

0

9

Gravely 04421153

WLDMT, HAND LEVER

$

$

Not available

10

Gravely 04421353

LINK, DECK LIFT
(Superseded to 04421351)

$57.99

$

Usually ships in 4-12 days

0

11

Gravely 05501118

BSHG-FLG .515X.750X.420X1.12

$29.99

$

Usually ships in 4-12 days

0

12

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

13

Gravely 05901506

BLT-HEX .38-16X5.00 GR5 FTH YZ
(Superseded to 05901923)

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

16

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 06200131

BLT-RDHDSQNK .50-13X2.00 G5 Y
(Superseded to 06200326)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 08300530

SPRING, DECK LIFT

$

$

Not available

29

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0
