994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Drive Belt And Clutch Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

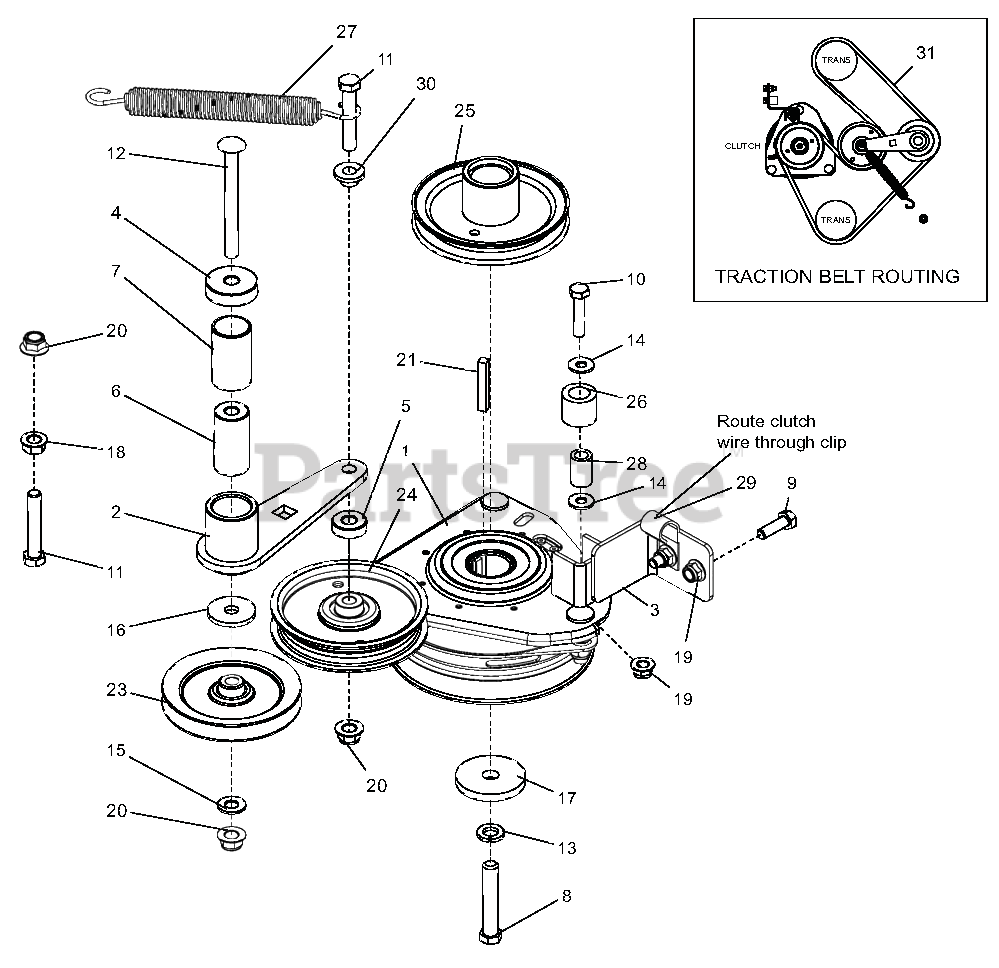

Drive Belt And Clutch Parts Diagram

  • Title

1

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 1 left!

0

2

Gravely 044165451

WLDMT, IDLER ARM GROUND DRIVE

$

$

Not available

3

Gravely 04417151

WLDMT, CLUTCH STOP

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 04446000

SPACER, .406 X 1.5 X .434

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 04448100

SPCR, .375 X 1.00 X .342

$23.99

$

In Stock, only 2 left!

0

6

Gravely 04448200

SPCR, .375 X .996 X 2.04

$24.99

$

Usually ships in 4-12 days

0

7

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

8

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$14.99

$

In Stock, only 2 left!

0

9

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

11

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06200126

BLT-RHDSSQNK .38-16X4.00 G5YZ
(Superseded to 06200239)

$7.99

$

In Stock, only 2 left!

0

13

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

17

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

18

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 07300528

SHV, .38"ID X 4.00"OD V-IDLER

$40.99

$

In Stock, only 2 left!

0

24

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

25

Gravely 07338367

SHEAVE, ENGINE 4.50 OD X 1.127

$131.99

$

Usually ships in 4-12 days

0

26

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 2 left!

0

27

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

28

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$6.49

$

In Stock, Qty 5

0

29

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

30

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

31

Gravely 07226400

V-BELT, A-COGGED

$53.99

$

In Stock, Qty 20+

0
