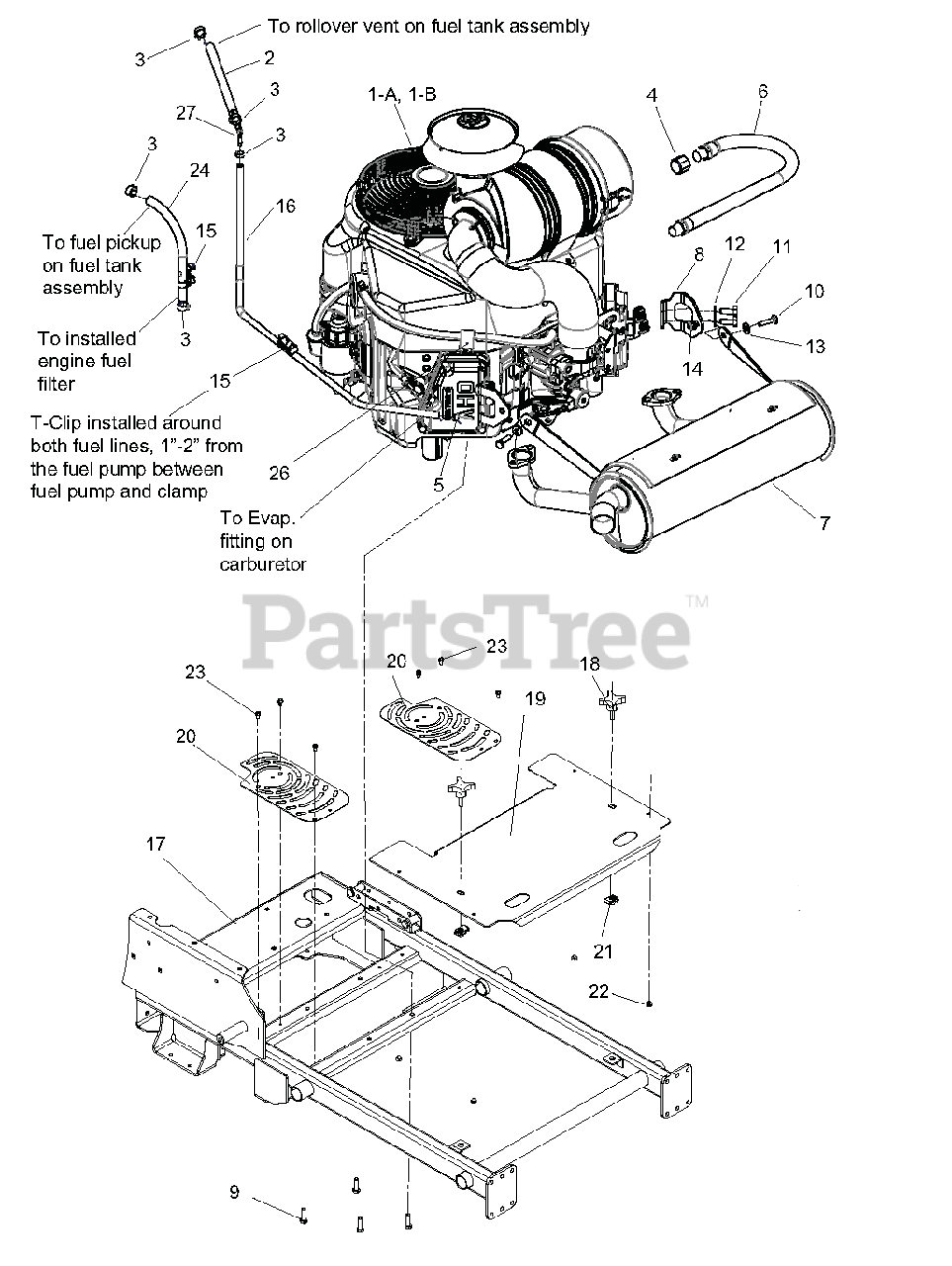

994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Engine (2) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

Engine (2) Parts Diagram

  • Title

1-A

Gravely 08200722

ENGINE, KAWASAKI FX730

Note: (994114)

$

$

Not available

1-B

Gravely 08200721

ENGINE, KAWASAKI FX691

Note: (994111,112,117,118)

$

$

Not available

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (5")

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

6

Gravely 04271700

DRAIN, M20 OIL

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 04420400

EXHAUST, KAWASAKI PROSTANCE

$298.99

$

Usually ships in 4-12 days

0

8

Gravely 04430251

BRACKET, EXHAUST

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

$2.99

$

In Stock, Qty 19

0

10

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

11

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (33")

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04364753

WMT,FRAME,48-52" PRO-STANCE

$1043.99

$

Usually ships in 4-12 days

0

18

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

19

Gravely 04416353

SHIELD, FRONT PRO-STANCE

$122.99

$

Usually ships in 4-12 days

0

20

Gravely 04499753

GUARD, PROSTANCE FAN

$32.99

$

Usually ships in 4-12 days

0

21

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 2 left!

0

22

Gravely 07503100

BUMPER GROMMET

$3.99

$

In Stock, Qty 14

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (10") (994117,118)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03278800

CLAMP, FUEL LINE

Note: (994117,118)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$15.99

$

Usually ships in 4-12 days

0
