994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Fuel System Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

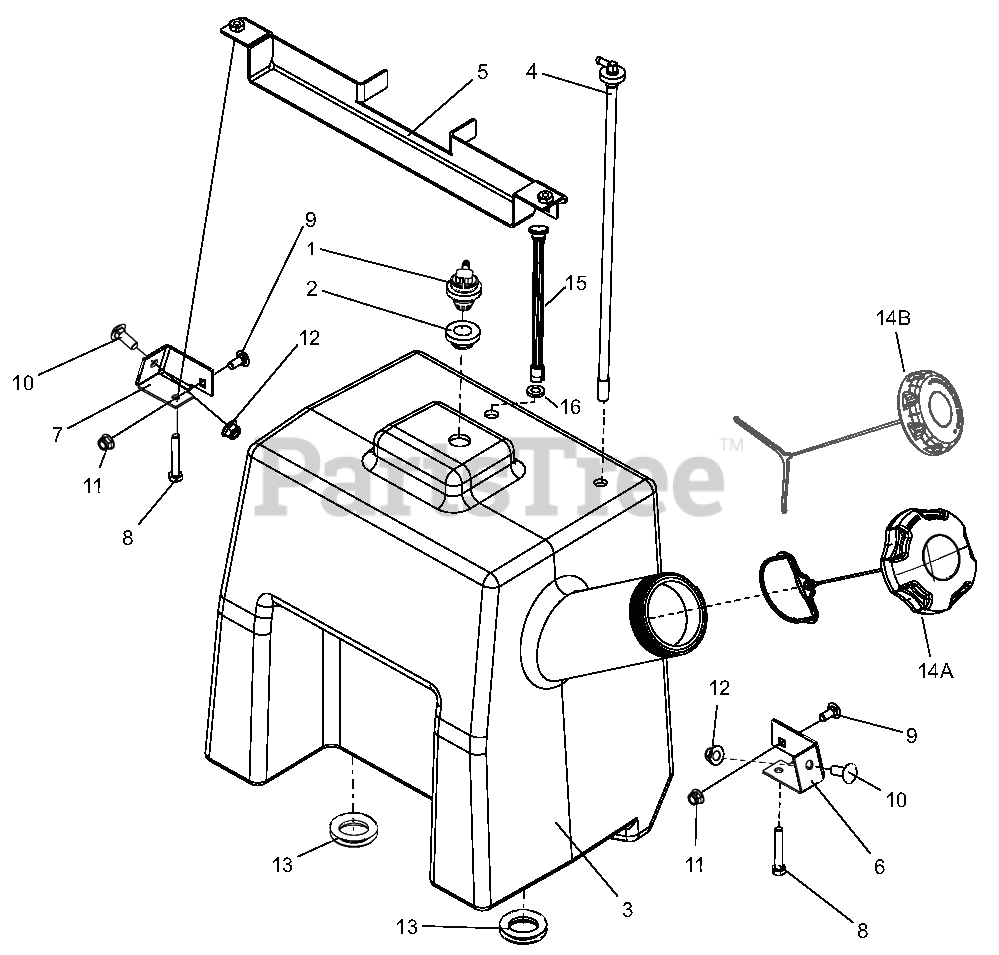

Fuel System Parts Diagram

  • Title

1

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, Qty 5

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

3

Gravely 04358300

ASSY, EPA PROSTANCE FUEL TANK

Note: (INC. ITEMS 1-4 AND 14-16)

$593.99

$

Usually ships in 4-12 days

0

4

Gravely 04446900

ASS'Y, PROSTANCE FUEL PICK-UP

Note: (INC. IN ITEM 3)

$31.99

$

Usually ships in 4-12 days

0

5

Gravely 04503451

WMT.FUEL TANK HOLDDOWN

$30.99

$

Usually ships in 4-12 days

0

6

Gravely 04503551

MOUNT, FUEL TANK HOLD DOWN-RH

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 04503651

MOUNT, FUEL TANK HOLD DOWN-LH

$5.49

$

Usually ships in 4-12 days

0

8

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

9

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

14A

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

Note: (INC. IN ITEM 3 ) (994111-115)

$35.99

$

In Stock, Qty 20+

0

14B

Gravely 04558100

CAP, FUEL NONVENT AUTOLOCK

Note: (994117,118)

$23.99

$

In Stock, only 1 left!

0

15

Gravely 07500234

GAUGE, FUEL
(Superseded to 07500540)

Note: (INC. IN ITEM 3) (SN 020000+)

$47.99

$

Usually ships in 4-12 days

0

16

Gravely 07500034

GROMMET, FUEL GAGE

Note: (INC. IN ITEM 3) (SN 020000+)

$6.99

$

In Stock, Qty 20+

0
