994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Operator Controls - Steering Levers Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

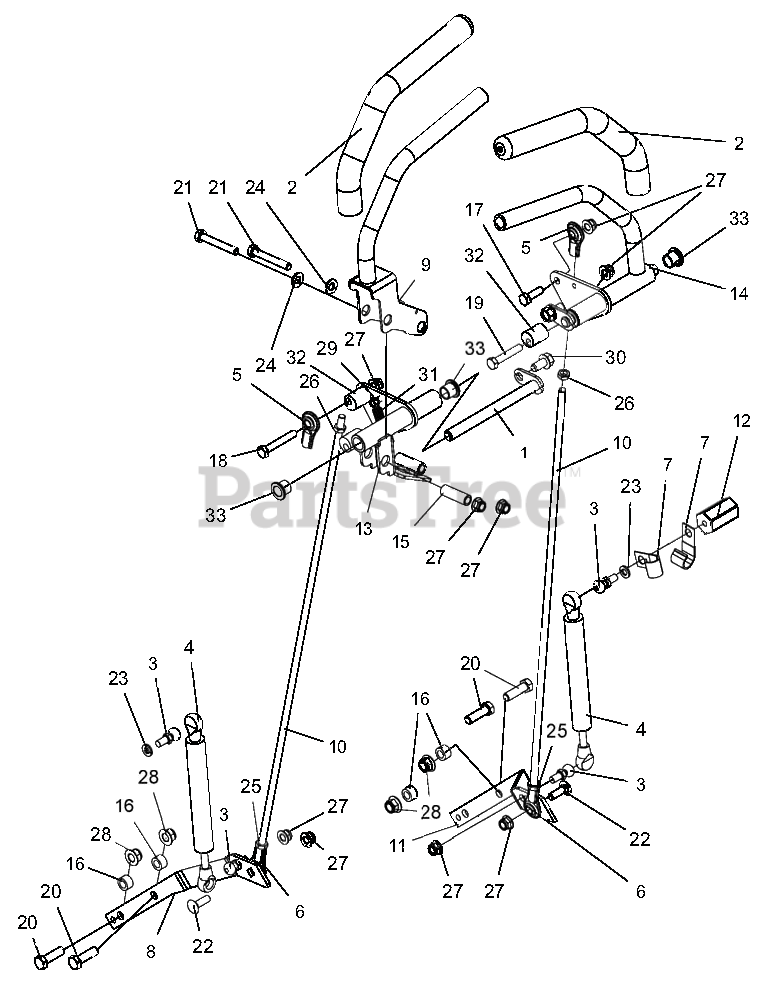

Operator Controls - Steering Levers Parts Diagram

  • Title

1

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 00675200

GRIP, HANDLEBAR

$9.99

$

In Stock, only 2 left!

0

3

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

4

Gravely 03914100

DAMPER, CONTROL
(Superseded to 30151500)

$33.99

$

In Stock, Qty 6

0

5

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$18.99

$

In Stock, only 1 left!

0

6

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$17.99

$

In Stock, only 2 left!

0

7

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

8

Gravely 04378451

BRKT, PROSTANCE CONTROL

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 04389851

WMT, CONTROL ARM OPC

$79.99

$

Usually ships in 4-12 days

0

10

Gravely 04399900

ROD, STEERING

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 04446251

BRKT,PROSTANCE CONTROL-RH

$32.99

$

Usually ships in 4-12 days

0

12

Gravely 04456300

MOUNT, DAMPER - PROSTANCE

$35.99

$

Usually ships in 4-12 days

0

13

Gravely 04458751

WMT, CONTROL ARM (LH)

$98.99

$

Usually ships in 4-12 days

0

14

Gravely 04458851

WMT, CONTROL ARM (RH)

$97.99

$

Usually ships in 4-12 days

0

15

Gravely 05501110

BSHG-SLV .325X.49X1.56

$10.99

$

In Stock, only 3 left!

0

16

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

17

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

19

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

20

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

22

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

26

Gravely 06544300

NUT-JAM LH .31-24 YWZC
(Superseded to 06501002)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 1 left!

0

32

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

33

Gravely 00200116

BRG, FLG .500X.620X.500 BRNZ

$6.49

$

Usually ships in 4-12 days

0
