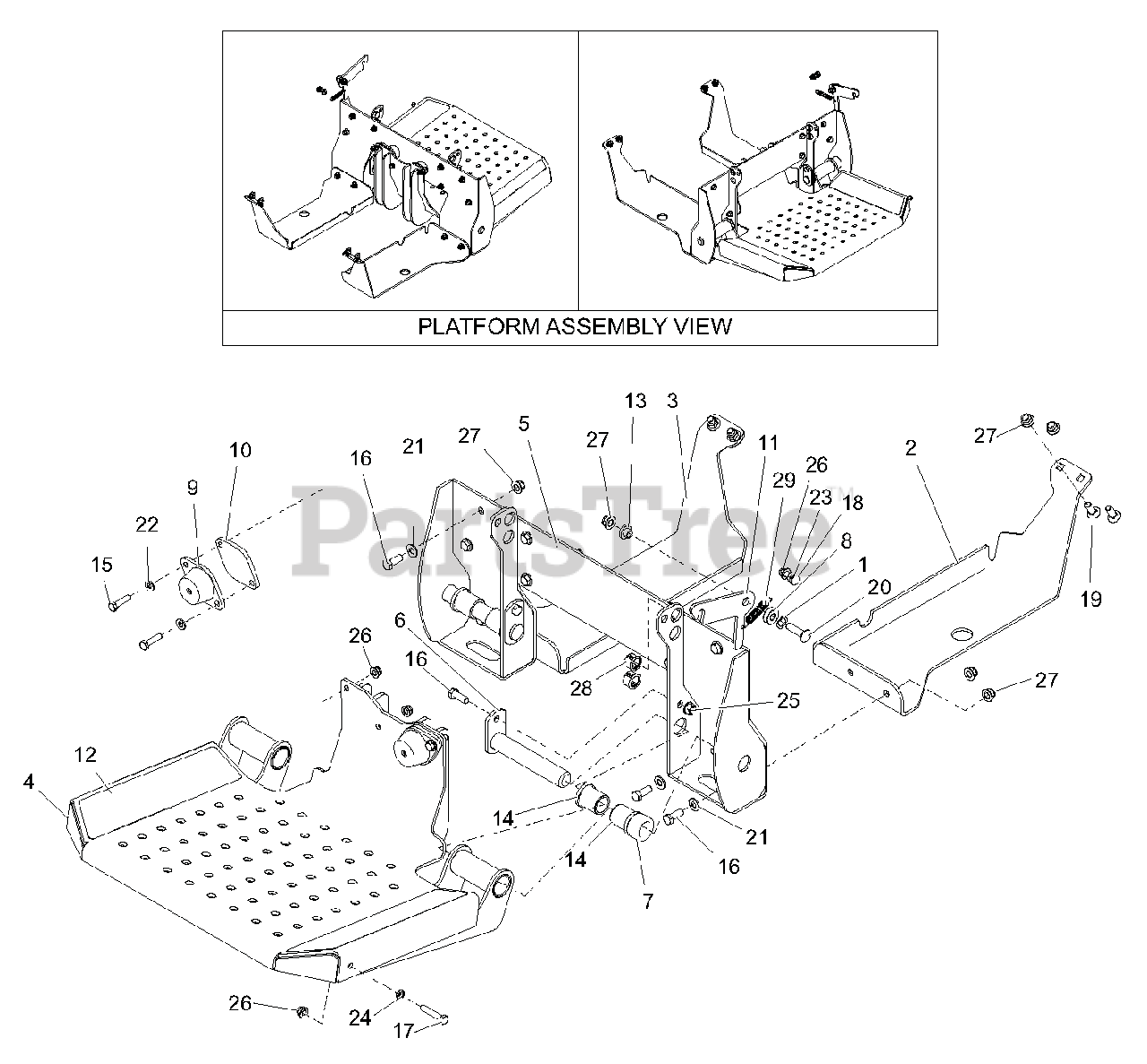

994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Operator Platform (SN 000101-019999) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

Operator Platform (SN 000101-019999) Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

2

Gravely 04356251

PLATE, TRANS SKID, RH

$102.99

$

Usually ships in 4-12 days

0

3

Gravely 04356351

PLATE, TRANS SKID, LH

$

$

Not available

4

Gravely 04373753

WLDMT, OPERATOR PLATFORM

$

$

Not available

5

Gravely 04398753

WLDMT, BRKT PLATFORM MOUNTING

$

$

Not available

6

Gravely 04398900

WMT, PIN PLATFORM MOUNT

$

$

Not available

7

Gravely 04446100

SPCR,1.032 X 1.5 X 0.75

$

$

Not available

8

Gravely 04448100

SPCR, .375 X 1.00 X .342

$23.99

$

In Stock, only 2 left!

0

9

Gravely 04448400

MOUNT, ENGINE, VIBRATION ISO

$50.99

$

Usually ships in 4-12 days

0

10

Gravely 04448853

PLATE, SPCR ISOLATOR PLATFORM

$

$

Not available

11

Gravely 04451553

PLATE,LATCH PLATFORM PROSTANCE

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 04456900

GRIP,ADHESIVE PRO-STANCE

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

15

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

16

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

18

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

25

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

29

Gravely 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 2 left!

0
