994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Operator Platform (SN 020000+) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

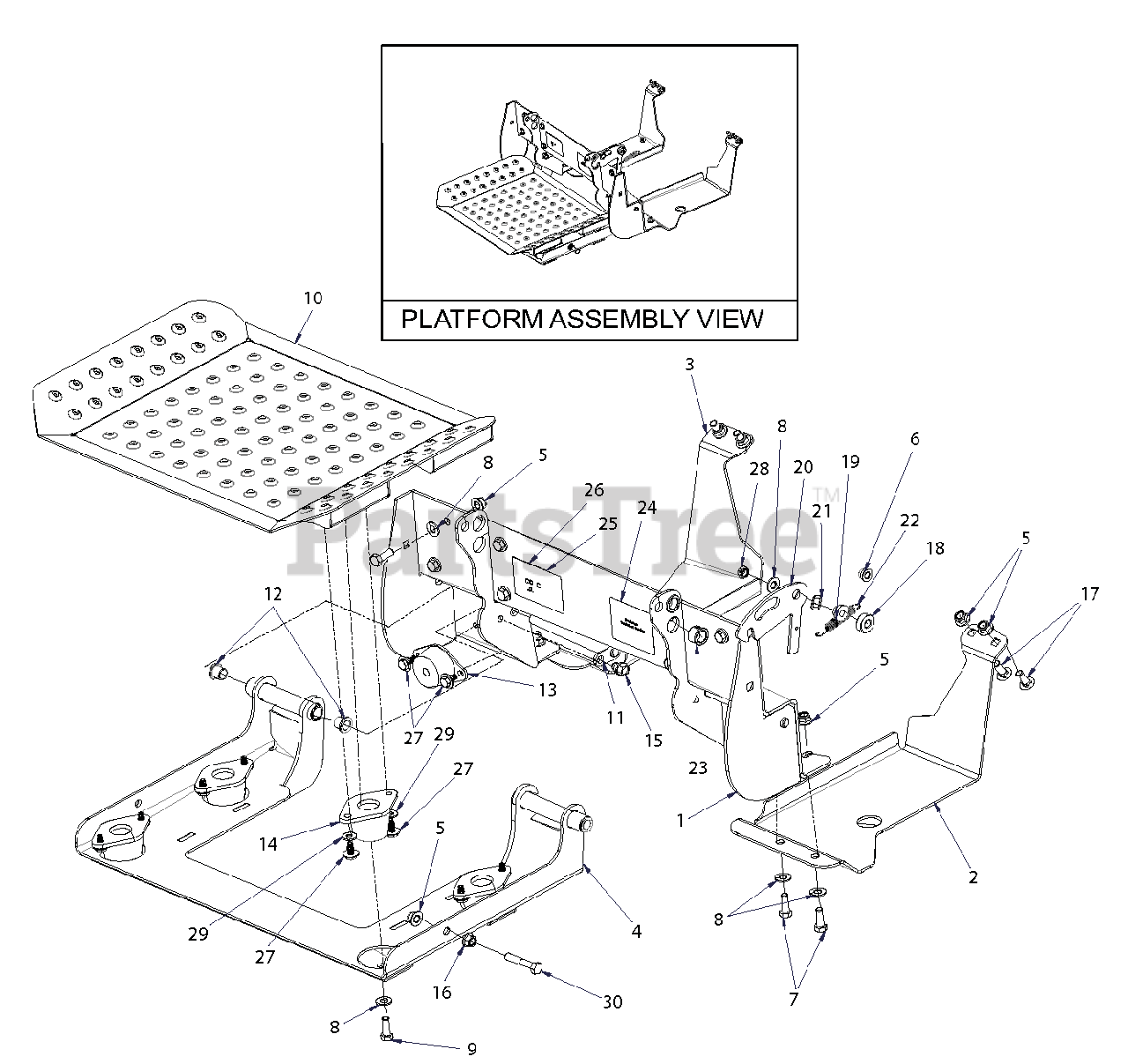

Operator Platform (SN 020000+) Parts Diagram

  • Title

1

Gravely 04539553

WLDMT, PLATFORM SUPPORT

$254.99

$

Usually ships in 4-12 days

0

2

Gravely 04542951

PLATE, RH SKID

$

$

Not available

3

Gravely 04543051

PLATE, LH SKID

$47.99

$

Usually ships in 4-12 days

0

4

Gravely 04553053

WLDMT, PLATFORM CARRIER

$299.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 04547453

WLDMT, PLATFORM TOP

$

$

Not available

11

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 00200116

BRG, FLG .500X.620X.500 BRNZ

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 05034800

MOUNT, ENGINE, VIBRATION ISO

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 07500213

MOUNT, ISOLATOR

$46.99

$

In Stock, Qty 5

0

15

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 04448100

SPCR, .375 X 1.00 X .342

$23.99

$

In Stock, only 2 left!

0

19

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

20

Gravely 04529853

LATCH, PLATFORM SIDE

$16.99

$

Usually ships in 4-12 days

0

21

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

22

Gravely 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 2 left!

0

23

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

24

Gravely 07700039

DECAL, PROSTANCE HYD BELT ROUT

Note: (PROSTANCE)

$10.99

$

In Stock, only 1 left!

0

25

Gravely 00917000

FORM - PRODUCT I.D.

$

$

Not available

26

Gravely 00915300

OVERLAMINATE

$

$

Not available

27

Gravely 05901329

BOLT, 5/16-18X.625 SLF TAP FLG

$2.99

$

In Stock, only 4 left!

0

28

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0
