994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Operator Platform (SN 020000+) Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

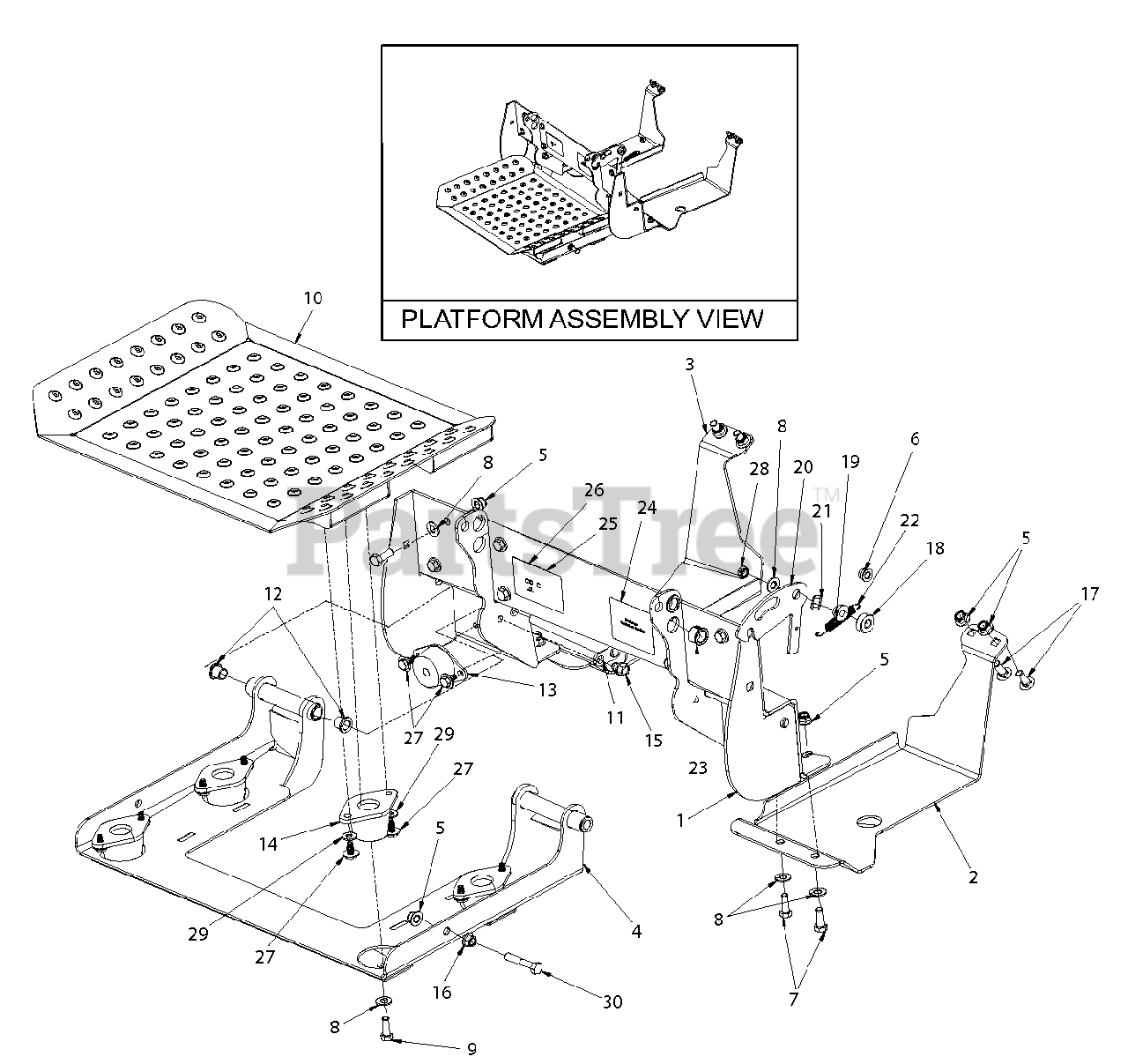

Operator Platform (SN 020000+) Parts Diagram

  • Title

1

Gravely 04539553

WLDMT, PLATFORM SUPPORT

$254.99

$

Usually ships in 4-12 days

0

2

Gravely 04542951

PLATE, TRANS SKID RH

$

$

Not available

3

Gravely 04543051

PLATE TRANS SKID LH

$47.99

$

Usually ships in 4-12 days

0

4

Gravely 04553053

WLDMT PLATFORM CARRIER

$299.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

NUT, LOCK NYLOC FLANGE .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06545400

NUT, LOCK NYLOC FLANGE .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05948700

BOLT, HEX .38-16 X 1.00 GR4 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06436200

WASHER FLAT STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05900013

BOLT, HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 04547453

WLDMT, PLATFORM TOP

$

$

Not available

11

Gravely 00203893

WLDMT PIN AND LOCK

$34.99

$

Usually ships in 4-12 days

0

12

200116

BRG, FLG .500 X .625 X .500 BRNZ

$

$

Not available

13

Gravely 05034800

MOUNT, ENGINE VIBRATION ISO

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 07500213

MOUNT, ISOLATOR

$46.99

$

In Stock, Qty 5

0

15

Gravely 07412900

SCR TAP .38-16 X .50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

16

Gravely 06534900

NUT SPNLK FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06223600

BOLT RKHDSQNK .38-16 X 1.00 GR5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

18

Gravely 04448100

SPCR .375 X 1.00 .342

$23.99

$

In Stock, only 2 left!

0

19

Gravely 05500435

BSH, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

20

Gravely 04529853

LATCH, PLATFORM SIDE

$16.99

$

Usually ships in 4-12 days

0

21

Gravely 00325400

WAVE WASHER .531 X .781 X .125 FH

$1.49

$

In Stock, Qty 20+

0

22

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, only 2 left!

0

23

Gravely 07500126

BUSH, PANEL SNAP .687 X .875 X .56

$3.99

$

In Stock, only 2 left!

0

24

Gravely 07700039

DECAL, HYDRO BELT (PROSTANCE)

Note: (PROSTANCE)

$10.99

$

In Stock, only 1 left!

0

25

Gravely 00917000

FORM PRODUCT ID

$

$

Not available

26

Gravely 00915300

OVERLAMINATE

$

$

Not available

27

Gravely 05901329

BOLT 5/16-18 X .625 SLF TAP FLG

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 06537200

NUT LK CTR .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06435800

WSHR FL STL .312 X .734 X .065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05963300

BOLT, HEX .38-16 X 2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0
