994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Tires And Transaxles Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

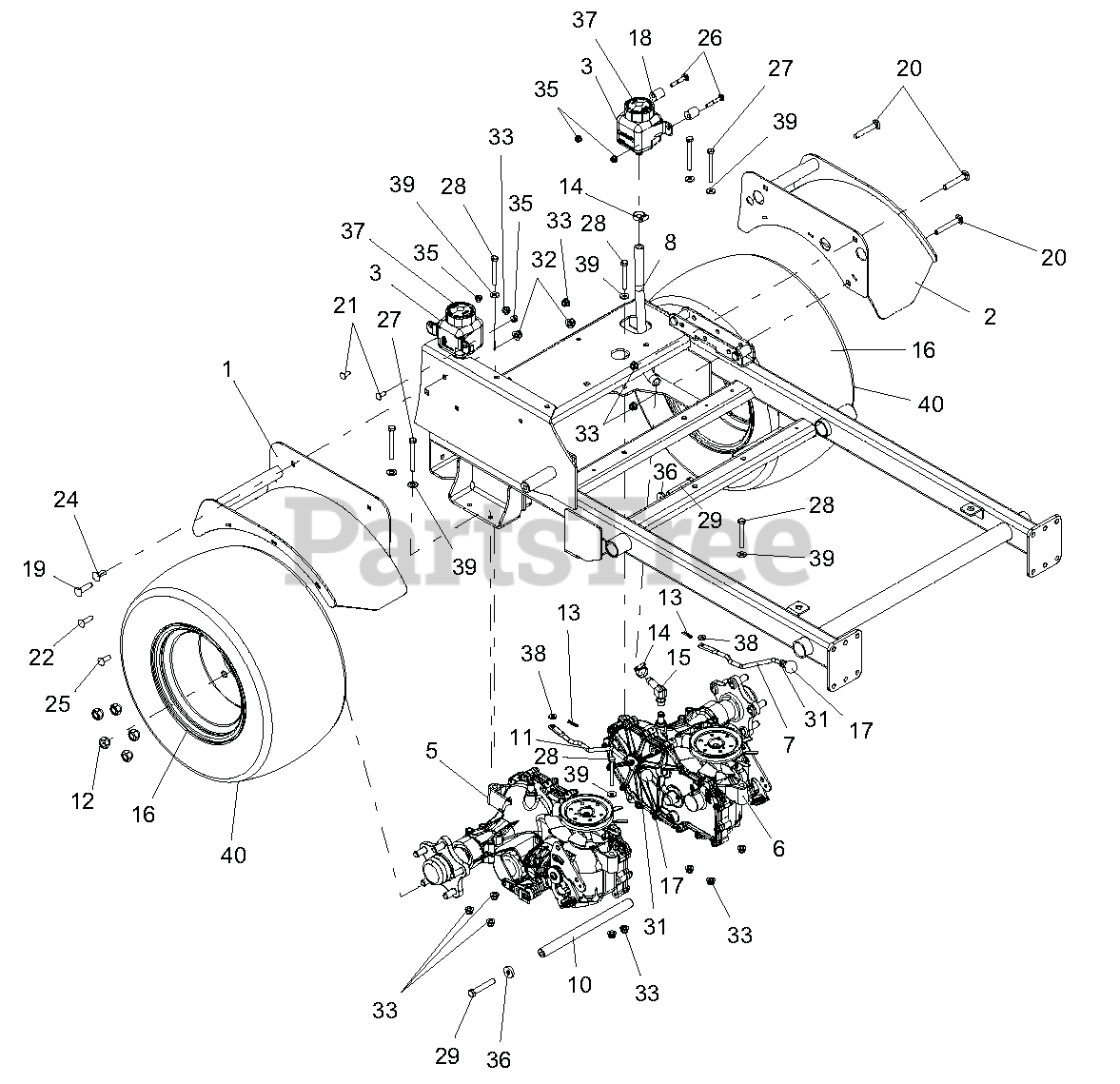

Tires And Transaxles Parts Diagram

  • Title

1

Gravely 04455953

WLDMT, RH FENDER

$112.99

$

Usually ships in 4-12 days

0

2

Gravely 04455853

WLDMT, LH FENDER

$148.99

$

Usually ships in 4-12 days

0

3

Gravely 02970200

TANK, EXPANSION ZT2800

Note: (INC. ITEM 37)

$38.99

$

In Stock, Qty 9

0

5

Gravely 04350800

TRANSAXLE,3400,PRO-STANCE,RH
(Superseded to 04828400)

$1939.99

$

Usually ships in 4-12 days

0

6

Gravely 04350900

TRANSAXLE,3400,PRO-STANCE,LH
(Superseded to 04828300)

$1939.99

$

In Stock, only 1 left!

0

7

Gravely 04421000

ROD, DUMP VALVE - LH

$

$

Not available

8

Gravely 04439200

HOSE, PROSTANCE HYDRO OVERFLOW

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 04448300

SHAFT, CROSS BRACE

$60.99

$

In Stock, only 3 left!

0

11

Gravely 04454400

ROD, DUMP VALVE - RH

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07001528

FITTING, HYD (90 DEG)

Note: (90 DEG)

$20.99

$

In Stock, only 2 left!

0

16

Gravely 07100831

TIRE/WHEEL ASS'Y, 20X10.50X8

Note: (INC ITEM 40)

$186.99

$

In Stock, only 1 left!

0

17

Gravely 07539800

KNOB-BALL-BLACK .312-18 X 1.00

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

19

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

32

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

$24.99

$

Usually ships in 4-12 days

0

38

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 07100940

TIRE, 20 X 10.5-8 4P K500

$145.99

$

Usually ships in 4-12 days

0
