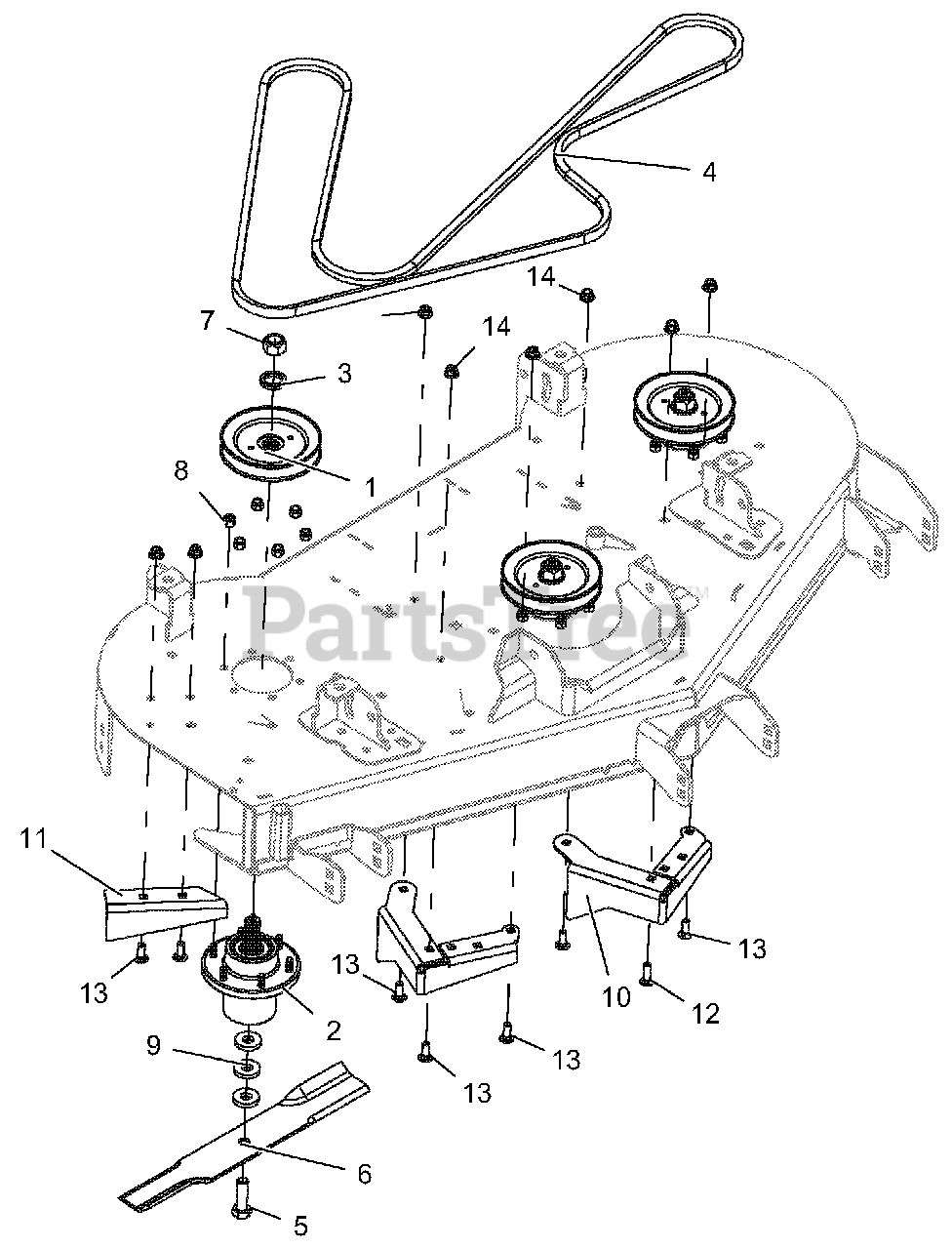

994113 - Gravely Pro-Stance 52" Stand-On Mower, Kohler EFI (SN: 030000 & Above) Deck - Belt, Blades, Deflectors, And Spindles 2 Parts Diagram

Pro-Stance 52" Stand-On Mower, Kohler EFI

Deck - Belt, Blades, Deflectors, And Spindles 2 Parts Diagram

  • Title

1

Gravely 07337567

PULLEY, SPINDLE 5.75 OD .76 HB
(Superseded to 58875700)

$90.99

$

In Stock, only 3 left!

0

2

200260

ASSY, SPINDLE HOUSING

$

$

Not available

3

Gravely 05501213

SPCR, 1.005 x 1.505 x .250 PM

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 07200621

V-Belt, 5L-WRAPPED CLUTCHING
(Superseded to 07200735)

$91.99

$

In Stock, only 3 left!

0

5

Gravely 05970002

BLT-HEX .62-11 x 2.00 GR8 YWZC
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

6

Gravely GDU10231

BLADE, 18.000 x .80 LIFT

$27.99

$

In Stock, Qty 20+

0

7

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR5 Y
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

8

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

9

Gravely 06400913

WSHR-FL-STL .630 x 1.50 x .25 YWZC
(Superseded to 06401033)

$6.99

$

In Stock, only 3 left!

0

10

Gravely 04711553

DEFLECTOR, DIRECTION

$23.99

$

Usually ships in 4-12 days

0

11

Gravely 04711653

DISCHARGE, BAFFLE

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 06224100

BLT-RDHDSQNK .38-16 x 1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06223600

BLT-RDHDSQNK .38-16 x 1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
