994114 - Gravely Pro-Stance 61" Stand-On Mower, Kawasaki FX (SN: 030000 & Above) Operator Controls - Panel And Tower Parts Diagram

Pro-Stance 61" Stand-On Mower, Kawasaki FX

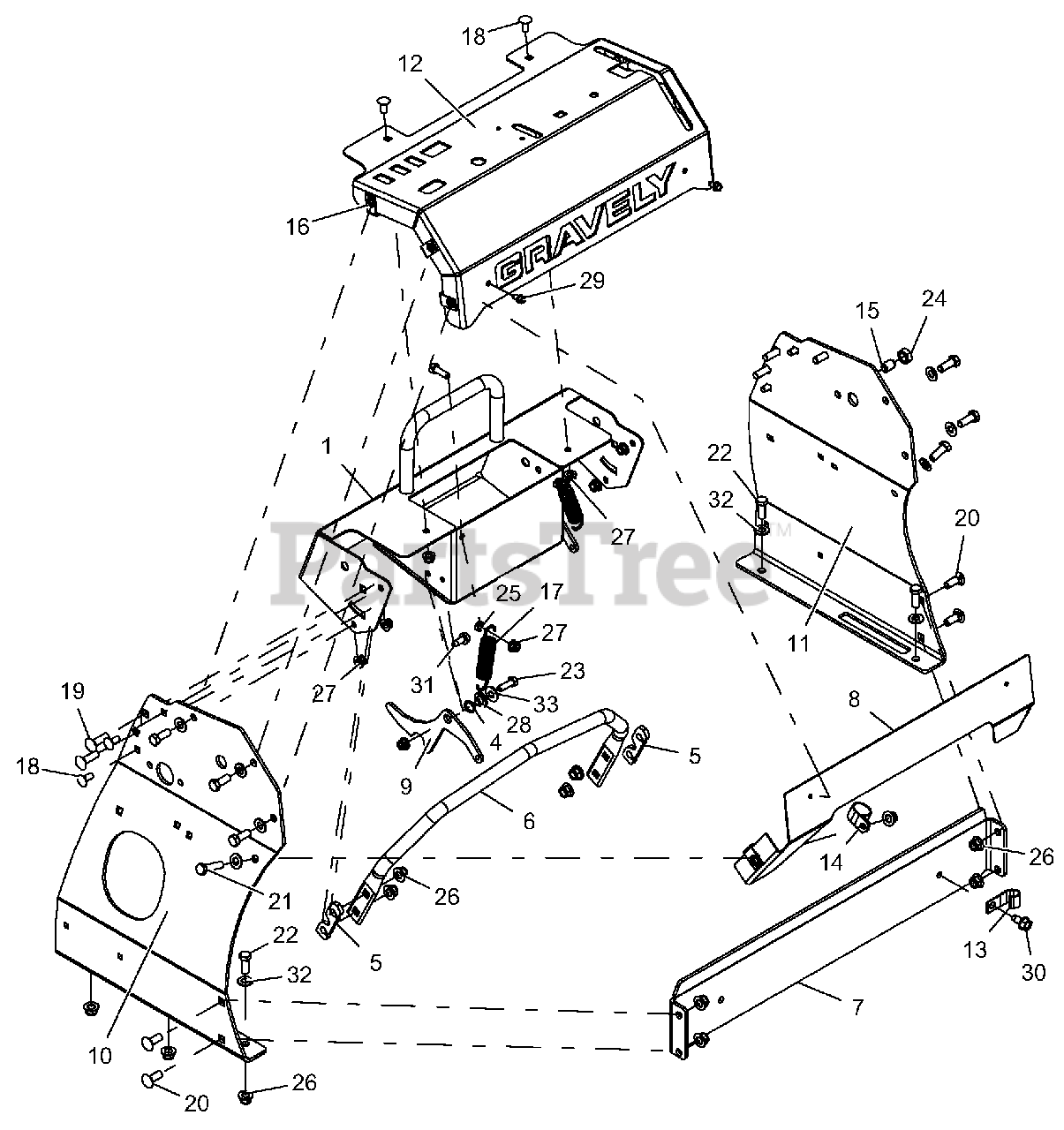

Operator Controls - Panel And Tower Parts Diagram

  • Title

1

Gravely 04723853

WLDMT, CONTROL PANEL, PRO-STANCE

$237.99

$

Usually ships in 4-12 days

0

4

Gravely 00325400

WAVE WASHER .531 x .781 x .125 FH

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03976751

SHIM, BAR 5 DEG SPEED - BLACK

$

$

Not available

6

Gravely 04389753

STOP, FORWARD STEERING

$131.99

$

Usually ships in 4-12 days

0

7

Gravely 04449051

STIFFENER, TOWER

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 04575251

PLATE, FRONT BACKER

$43.99

$

Usually ships in 4-12 days

0

9

Gravely 04577500

LATCH, PAD MOUNT

$

$

Not available

10

Gravely 59401500

PANEL, TOWER RH, PRO-STANCE

$118.99

$

Usually ships in 4-12 days

0

11

Gravely 04579153

PANEL, PROSTANCE LH TOWER

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 59400700

PANEL, CONTROL - PRO-STANCE

$158.99

$

Usually ships in 4-12 days

0

13

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06917900

CLAMP, CUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 07053300

NUT, RTNR .375-16 x .37

$3.99

$

In Stock, only 3 left!

0

17

Gravely 08311700

SPRG, EXTENSION

$9.49

$

In Stock, Qty 6

0

18

Gravely 06215700

BLT-RDHDSQNK .31-18 x .75 G5 YWZC
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06224100

BLT-RDHDSQNK .38-16 x 1.25 G5 YWZC
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06223600

BLT-RDHDSQNK .38-16 x 1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 1 left!

0

21

Gravely 05957900

BLT-HEX .38-16 x 1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

22

Gravely 05948700

BLT-HEX .38-16 x 1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05946900

BLT-HEX .31-18 x 1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

24

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

26

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 05514800

BSHG, FLG .32 x .500 .344 x .880

$2.49

$

In Stock, Qty 20+

0

29

Gravely 07400034

SCR-TAP .25-20 x .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07415400

SCR-TAP .38-16 x .75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 07414400

SCR-TAP .31-18 x .75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, only 4 left!

0

32

Gravely 06436200

WSHR-FL-STL .406 x .812 x .065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06435700

WSHR-FL-STL .38 x .875 x .083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
