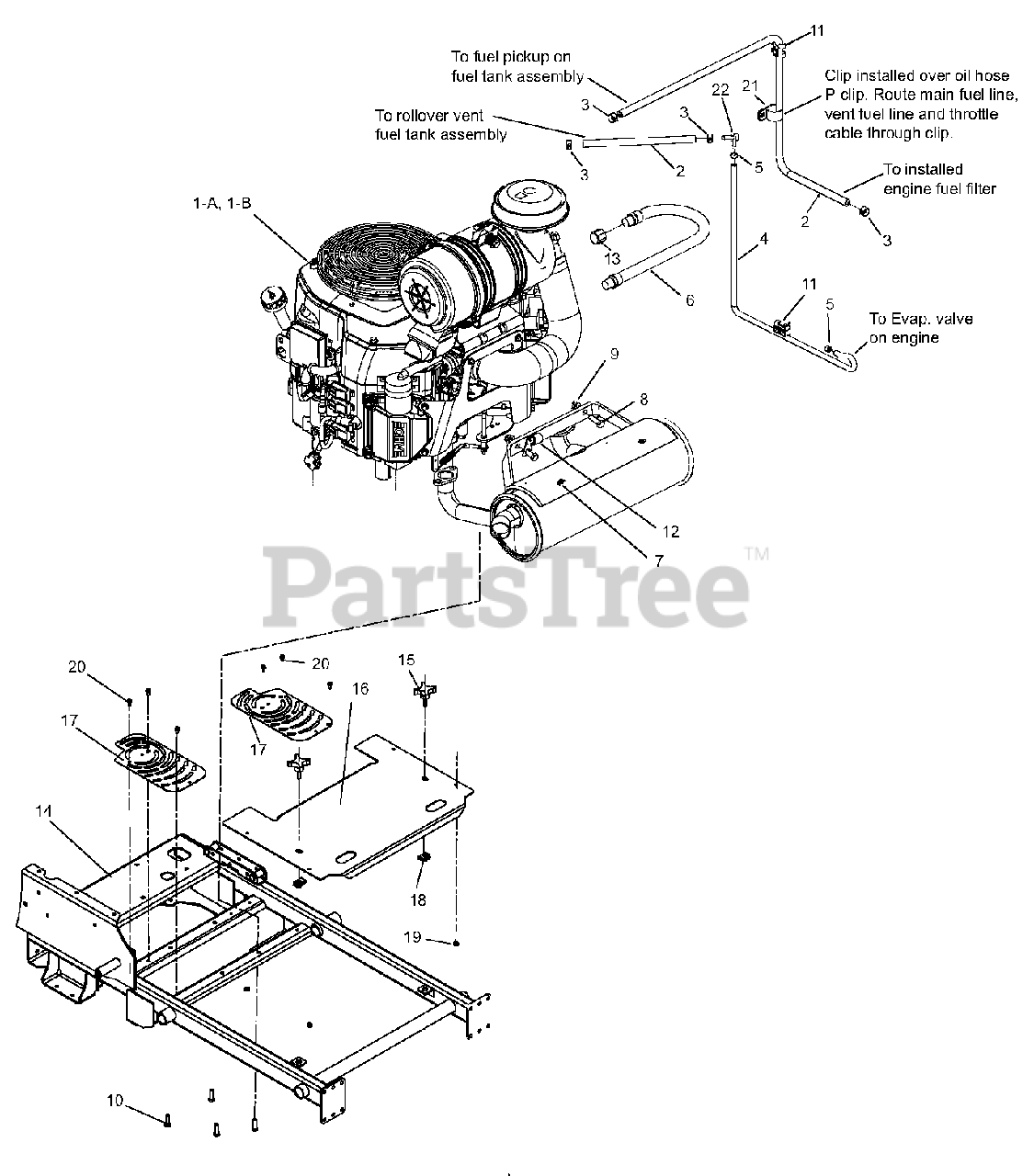

994115 - Gravely Pro-Stance 61" Stand-On Mower, Kohler EFI (SN: 000101 - 029999) Engine Parts Diagram

Pro-Stance 61" Stand-On Mower, Kohler EFI

Engine Parts Diagram

  • Title

1-A

Gravely 08200715

ENGINE, 23 HP KOHLER EFI (994113)

Note: (994113)

$

$

Not available

1-B

Gravely 08200716

ENGINE, 25 HP KOHLER EFI (994115)

Note: (994115)

$

$

Not available

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS (24")

Note: (24")

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

4

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS (30")

Note: (30")

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 04058500

HOSE, HYD .38-14 OK M6NO-M6NO (OIL DRAIN)
(Superseded to 05155100)

Note: (OIL DRAIN)

$20.99

$

In Stock, only 1 left!

0

7

Gravely 04375100

MFLR, KOHLER

$200.99

$

Usually ships in 4-12 days

0

8

Gravely 05946900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

9

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

10

Gravely 07417400

SCR-TAP .38-16 X 1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 07001712

CLIP, T .38-50

$3.99

$

Usually ships in 4-12 days

0

12

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

13

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 04364753

WLDMT, FRAME PROSTANCE

$1022.99

$

Usually ships in 4-12 days

0

15

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 3 left!

0

16

Gravely 04416353

SHIELD, DECK

$120.99

$

Usually ships in 4-12 days

0

17

Gravely 04499753

GUARD, FAN

$32.99

$

Usually ships in 4-12 days

0

18

Gravely 07053300

NUT, RTNR .375-16 X .37

$3.99

$

In Stock, only 4 left!

0

19

Gravely 07503100

BUMPER GROMMET .125 X .25 REV

$3.49

$

In Stock, only 2 left!

0

20

Gravely 07400034

SCR-TAP .25-20 X .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06917900

CLAMP, CUSHIONED STEEL

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 07400034

FITTING, 90 VACUUM 3/16 1/4
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
