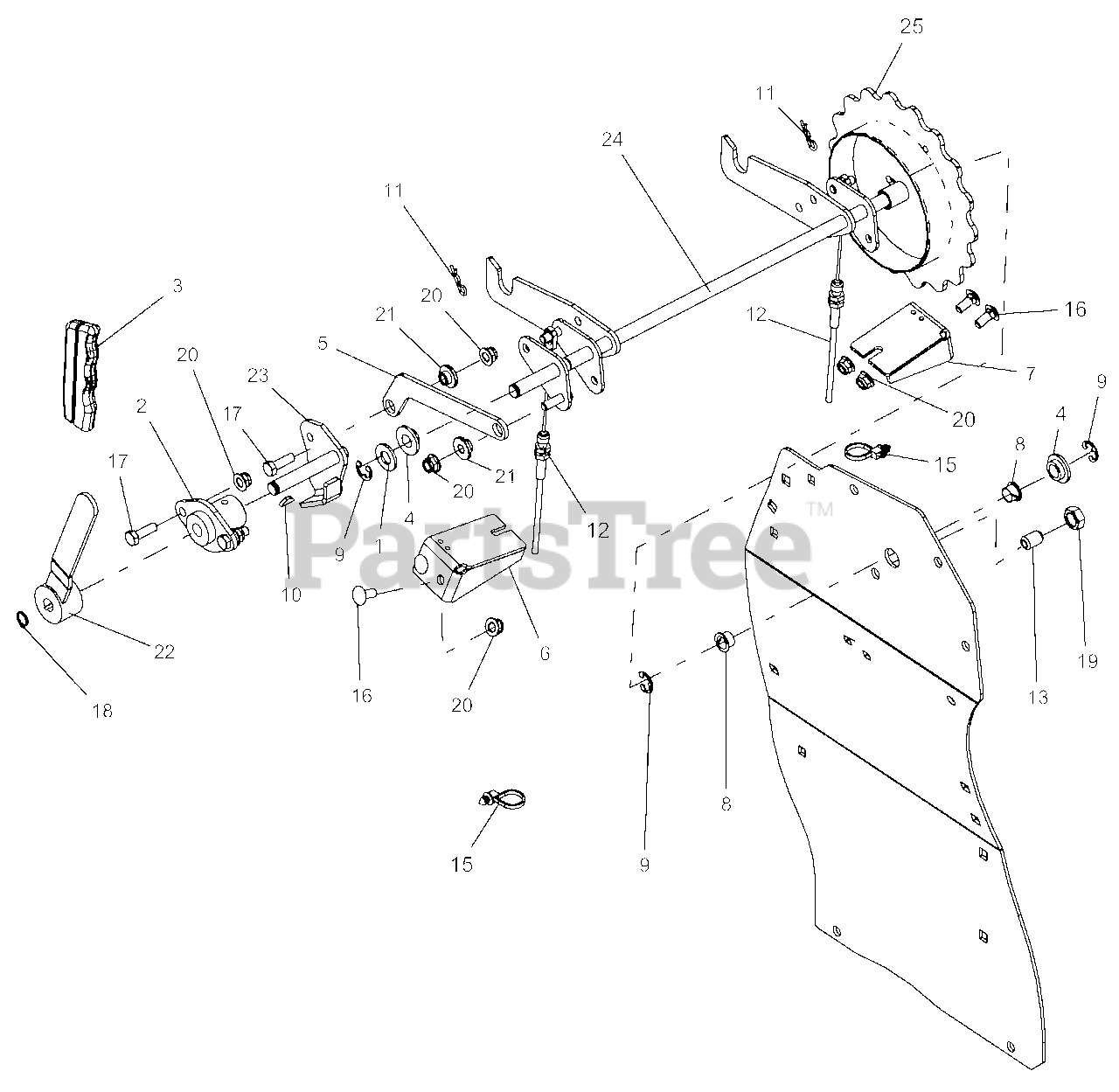

994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 000101 - 039999) Brake And Height of Cut Dial Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

Brake And Height of Cut Dial Parts Diagram

  • Title

1

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 01522000

BUSHING, FLANGED

$36.99

$

In Stock, only 1 left!

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$5.49

$

In Stock, Qty 11

0

4

Gravely 03989100

BSHG-FLG .515X.750X.395X1.120

$4.99

$

In Stock, only 2 left!

0

5

Gravely 04412951

LINK, BRAKE INTERLOCK

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 04553151

BRKT, BRAKE CABLE MTG

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 04576451

BRKT, LH CABLE MTG

$82.99

$

Usually ships in 4-12 days

0

8

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$3.99

$

In Stock, Qty 20+

0

9

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (E)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$3.49

$

In Stock, only 1 left!

0

11

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06900522

CABLE, PROSTANCE P.BRAKE

$71.99

$

In Stock, only 1 left!

0

13

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 13

0

19

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.99

$

In Stock, Qty 20+

0

22

Gravely 04392900

WMT, PARKING BRAKE HANDLE

$206.99

$

Usually ships in 4-12 days

0

23

Gravely 04412500

WMT, PARKING BRAKE ACTUATING

$312.99

$

Usually ships in 4-12 days

0

24

Gravely 04412800

WLDMT, PARKING BRAKE/INTERLOCK

$79.99

$

Usually ships in 4-12 days

0

25

Gravely 04714400

WLDMT, HEIGHT OF CUT

$289.99

$

Usually ships in 4-12 days

0
